• Low Offset Voltage: 10μV (MAX)

• Input Voltage Noise: 12nV/ Ηz

•  Low 0.1Hz to 10Hz Noise: 0.3μVPP

•  Quiescent Current: 165μA/Amplifier (TYP)

• Integrated EMI Filter

• Single or Dual Supply Operation

• Supply Voltage Range: 1.8V to 5.5V

• Rail-to-Rail Input and Output

• Gain-Bandwidth Product: 1.8MHz

• Slew Rate : 0.7V/μs

• -40℃ to +125℃ Operating Temperature Range

• Small Packaging:

  SGM8958-1 Available in Green SOT-23-5, SC70-5

  and SOIC-8 Packages

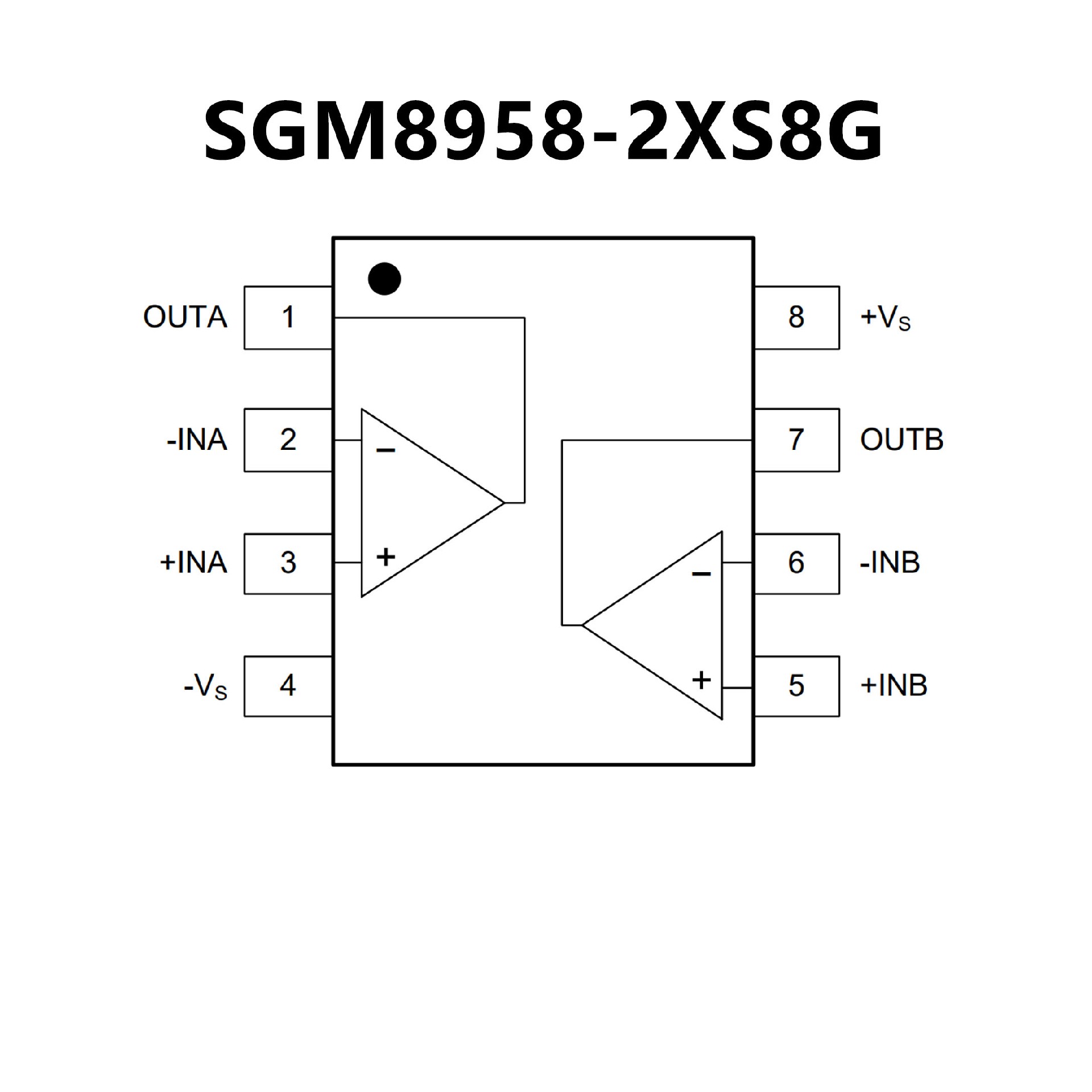

  SGM8958-2 Available in Green SOIC-8 and

  TDFN-3×3-8L Packages
