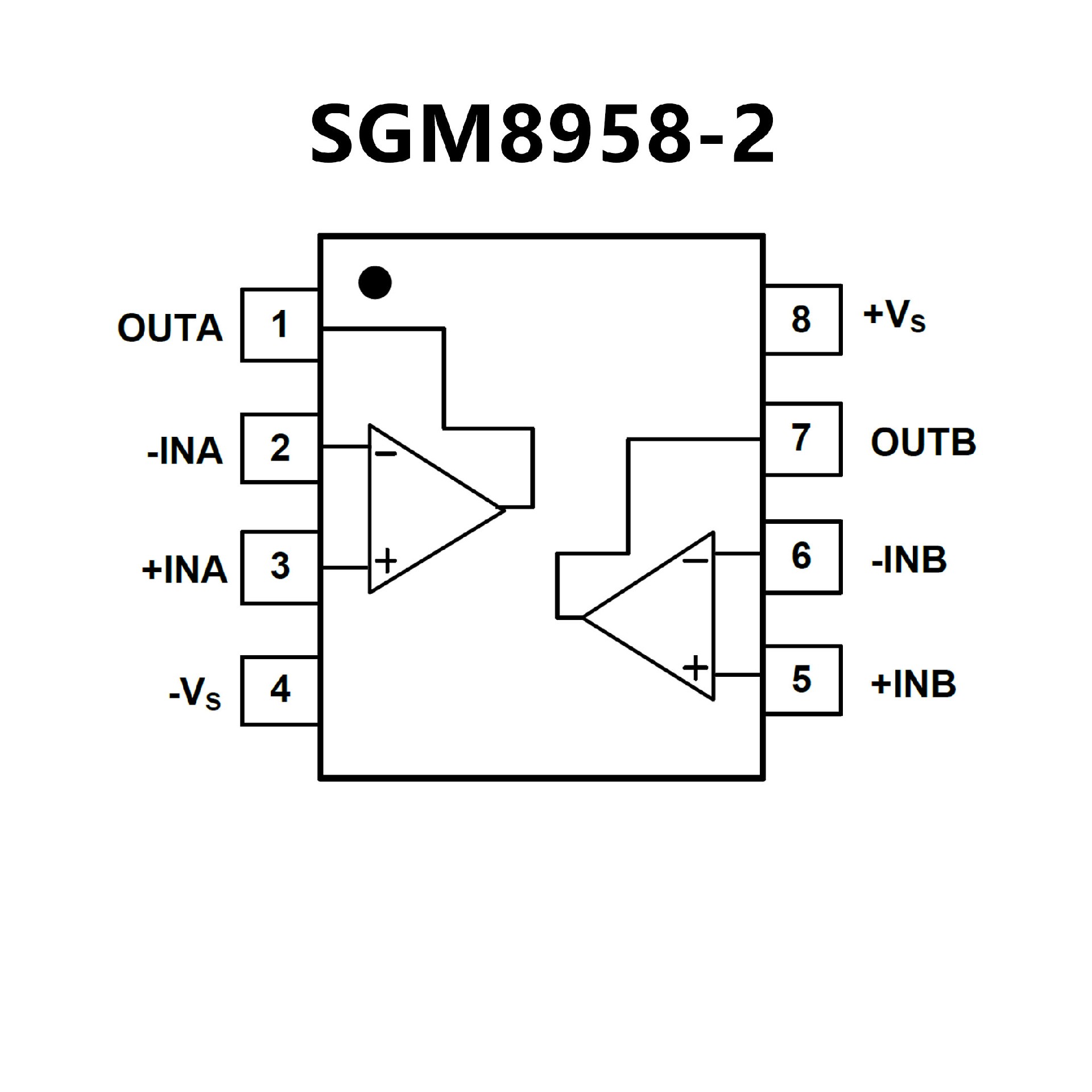

SGM8958-2.pdf• Low Offset Voltage: 10μV (MAX)
• Input Voltage Noise: 12nV/zΗ
• Low 0.1Hz to 10Hz Noise: 0.3μVPP
• Quiescent Current: 165μA/Amplifier (TYP)
• Integrated EMI Filter
• Single or Dual Supply Operation
• Supply Voltage Range: 1.8V to 5.5V
• Rail-to-Rail Input and Output
• Gain-Bandwidth Product: 1.8MHz
• Slew Rate : 0.7V/μs
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging:
SGM8958-1 Available in Green SOT-23-5,
SC70-5and SOIC-8 Packages
SGM8958-2 Available in Green
SOIC-8 andTDFN-3×3-8L Packages

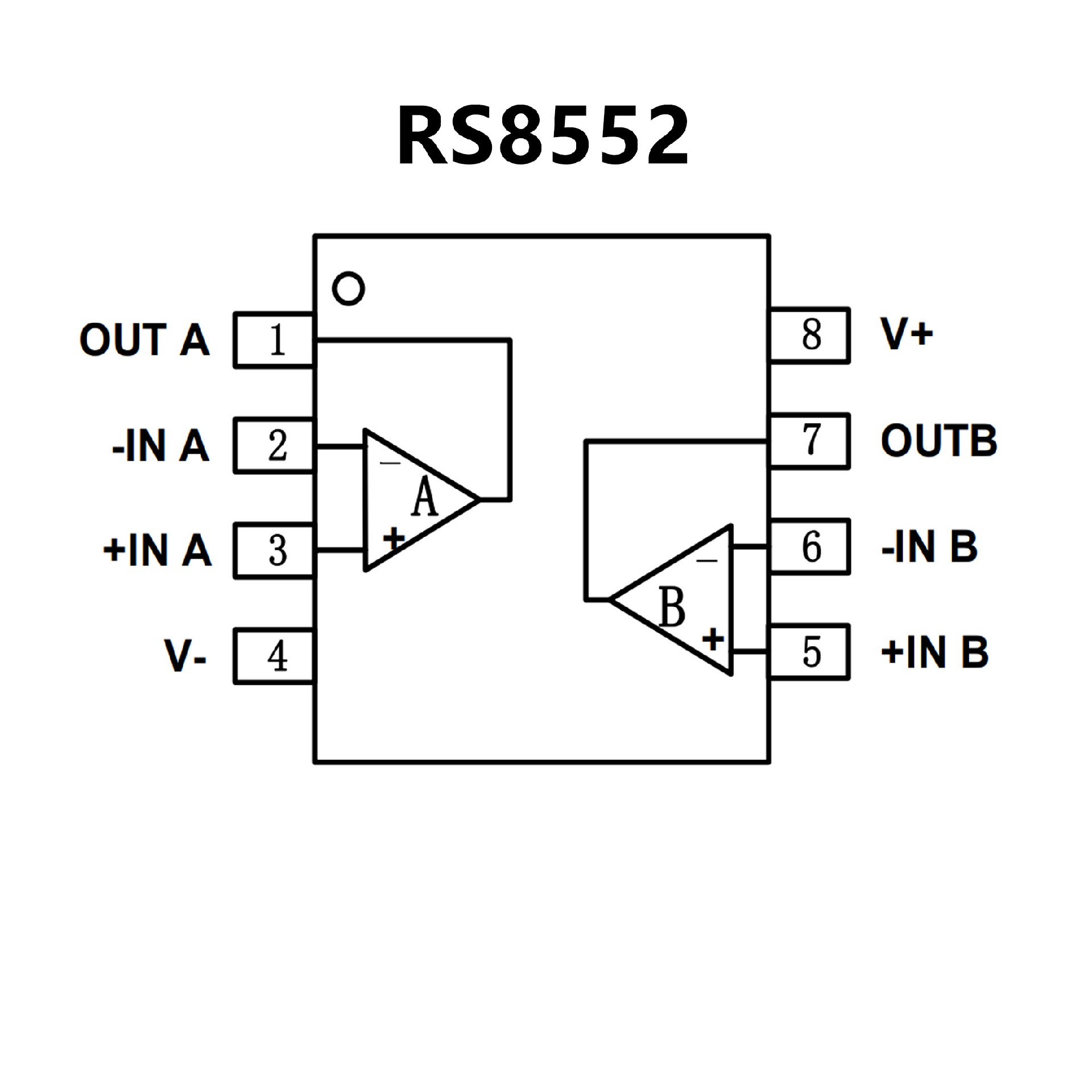

• Low Offset Voltage: 1uV
• Input Offset Drift: 0.005μV/°C
• High Gain Bandwidth Product: 4.5MHz
• Rail-to-Rail Input and Output
• High Gain, CMRR, PSRR:130dB
• High Slew Rate: 2.7V/μs
• Low Noise: 0.75uVp-p (0.01~10Hz)
• Low Power Consumption: 640μA /op amp
• Overload Recovery Time:1us
• Low Supply Voltage: +2.7 V to +5.5 V
• No External Capacitors Required
• Extended Temperature: -40°C to +125°C
