SGM8965A-2.pdf• Gain Bandwidth: 50MHz
• High CMRR: 94dB (TYP)
• Rail-to-Rail Input and Output
• Low Noise: 5.5nV/Hz at 100kHz
• Slew Rate: 30V/μs
• High Precision:
Low Offset: 50μV (TYP), 280μV (MAX)
Low Input Bias Current: 1pA (TYP)
• Unity-Gain Stable
• 2.2V to 5.5V Operation Voltage Range
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging:
SGM8965A-1 Available in Green SOT-23-5 and
SOIC-8 Packages

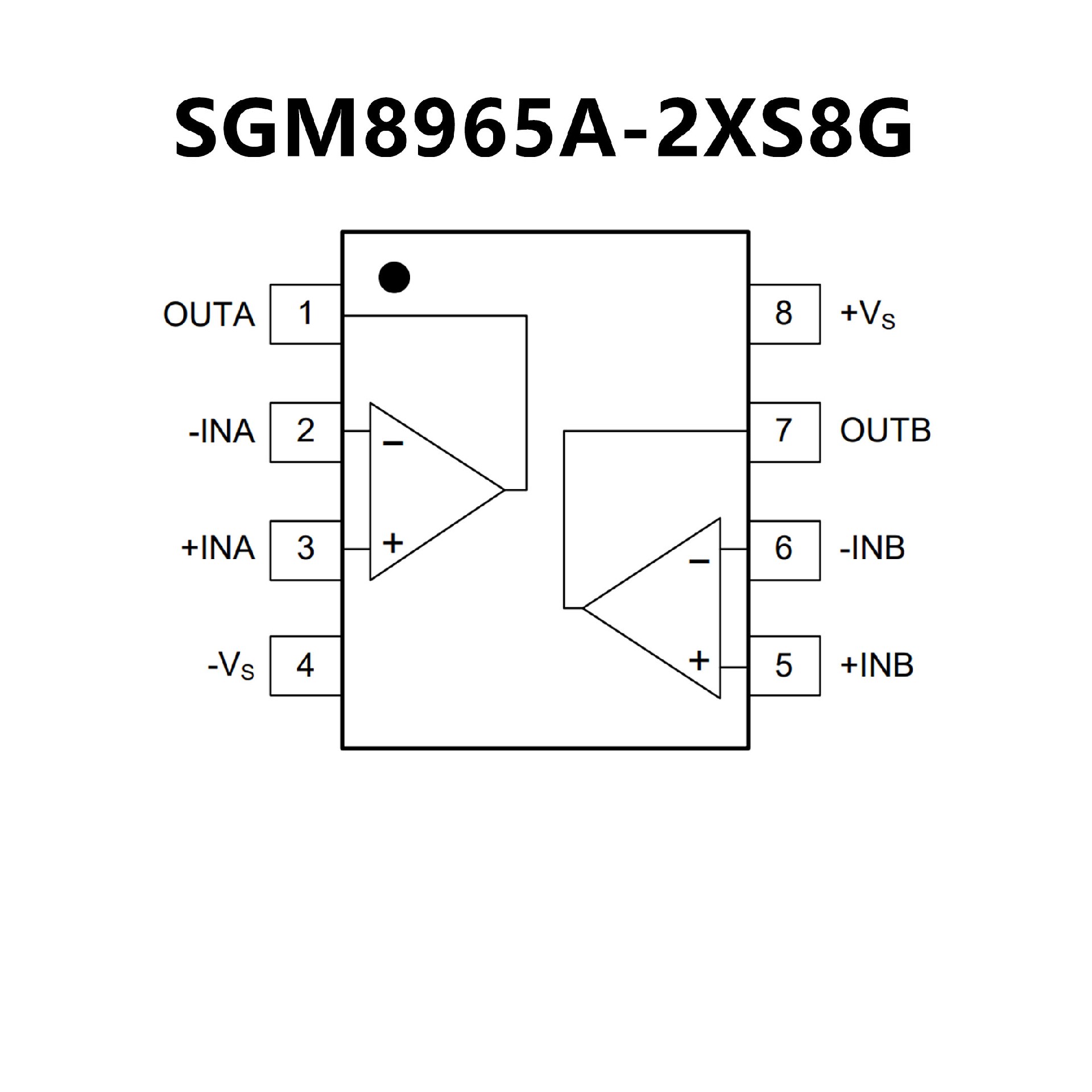

SGM8965A-2 Available in Green SOIC-8 and
MSOP-8 Packages

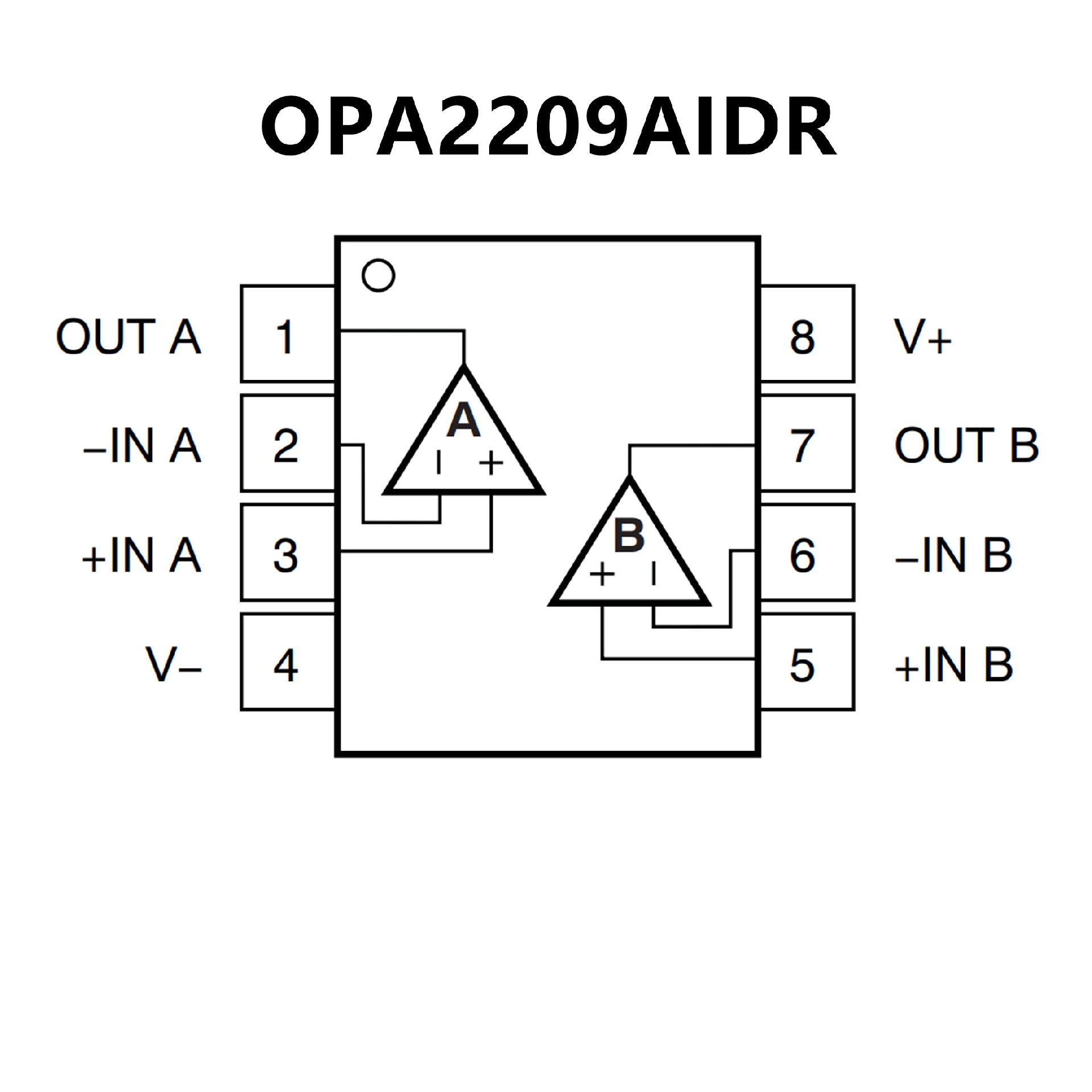

• Low Voltage Noise: 2.2 nV/√Hz at 1 kHz
• 0.1-Hz to 10-Hz Noise: 130 nVPP
• Low Quiescent Current: 2.5 mA/Ch (Maximum)
• Low Offset Voltage: 150 μV (Maximum)
• Gain Bandwidth Product: 18 MHz
• Slew Rate: 6.4 V/μs
• Wide Supply Range:
±2.25 V to ±18 V, 4.5 V to 36 V
• Rail-to-Rail Output
• Short-Circuit Current: ±65 mA
• Available in 5-Pin SOT-23, 8-Pin MSOP,
8-Pin SOIC, and 14-Pin TSSOP Packages
