50MHz, Low Distortion,RRIO, Single-Supply Operational Amplifiers, SGM8965A-2 Replace OPA2350.
SGM8965A-2
SGM8965A-2.pdf
SGM8965A-2.pdfFEATURES
• Gain Bandwidth: 50MHz
• High CMRR: 94dB (TYP)
• Rail-to-Rail Input and Output
• Low Noise: 5.5nV/Hz at 100kHz
• Slew Rate: 30V/μs
• High Precision:
Low Offset: 50μV (TYP), 280μV (MAX)
Low Input Bias Current: 1pA (TYP)
• Unity-Gain Stable
• 2.2V to 5.5V Operation Voltage Range
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging:
SGM8965A-1 Available in Green SOT-23-5 and
SOIC-8 Packages
SGM8965A-2 Available in Green SOIC-8 and
MSOP-8 Packages

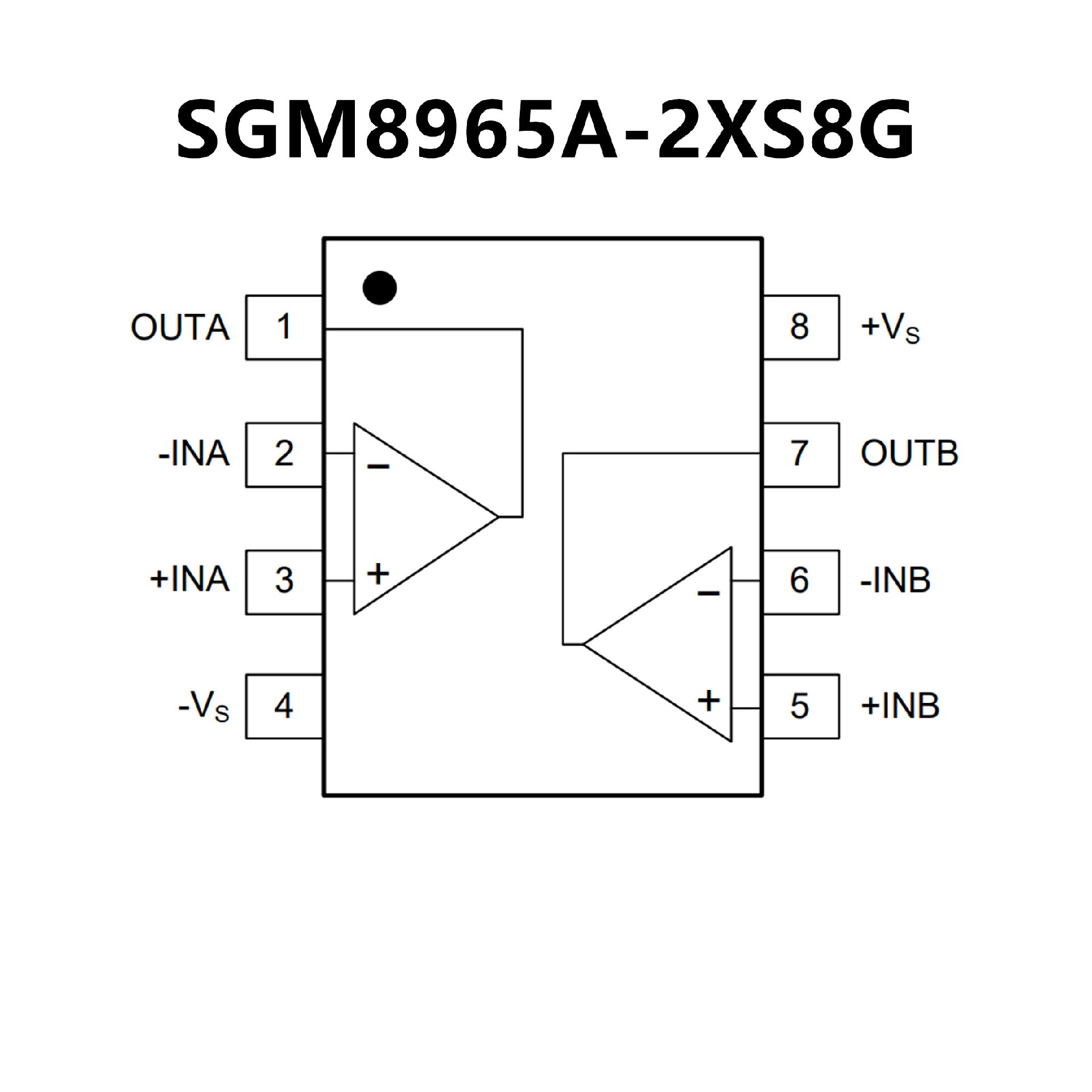

PIN CONFIGUTION
优势替代
FEATURES
• Rail-to-Rail Input
• Rail-to-Rail Output (Within 10 mV)
• Wide Bandwidth: 38 MHz
• High Slew Rate: 22 V/μs
• Low Noise: 5 nV/√Hz
• Low THD+Noise: 0.0006%
• Unity-Gain Stable
• MicroSize Packages
• Single, Dual, and Quad

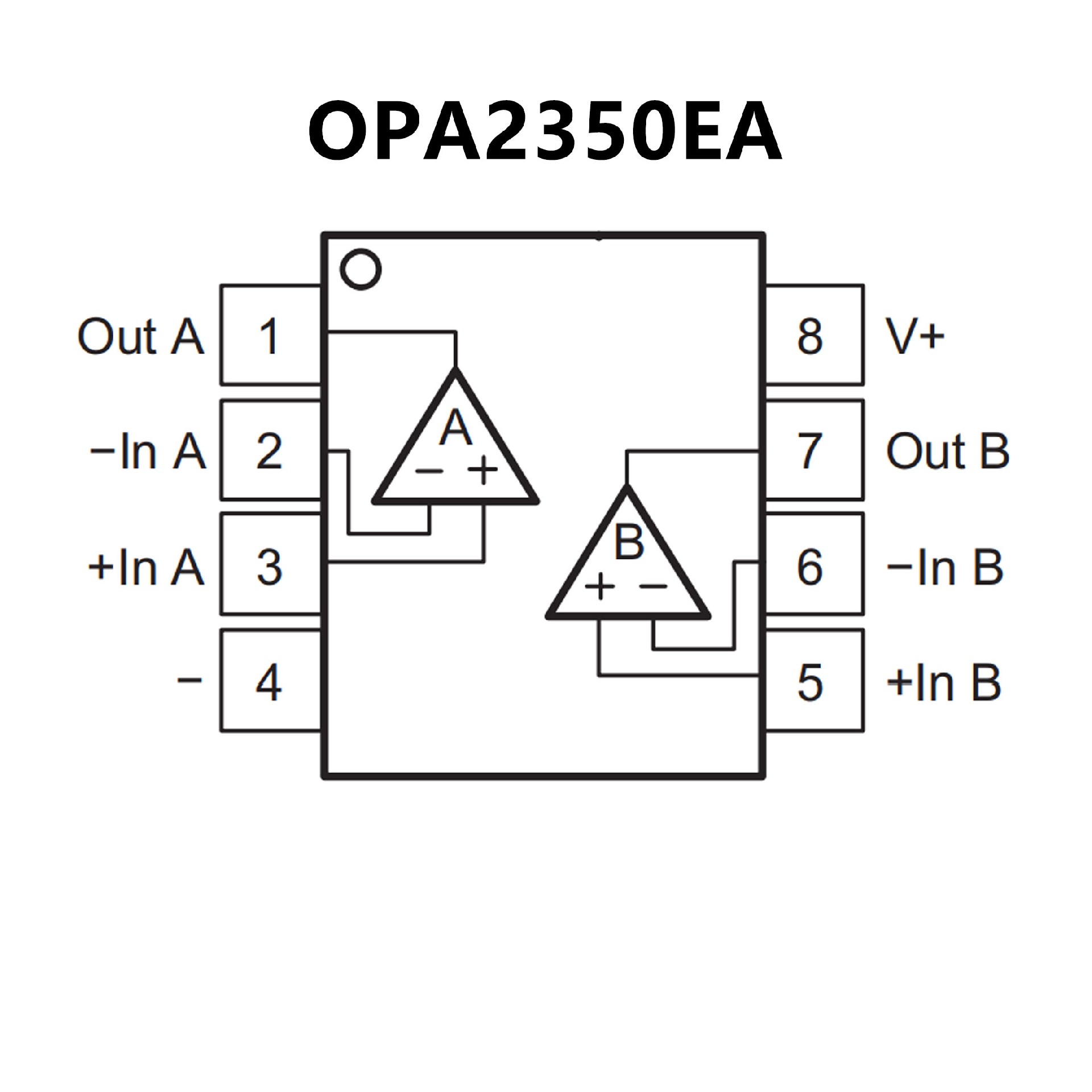

PIN CONFIGUTION
