50MHz, Low Distortion,RRIO, Single Supply Operational Amplifiers,SGM8965-Replace-AD8656.
SGM8965A-2
SGM8965A-2.pdf
SGM8965A-2.pdfFEATURES
• Gain Bandwidth: 50MHz
• High CMRR: 94dB (TYP)
• Rail-to-Rail Input and Output
• Low Noise: 5.5nV/ Hz at 100kHz
• Slew Rate: 30V/μs
• High Precision:
Low Offset: 50μV (TYP), 280μV (MAX)
Low Input Bias Current: 1pA (TYP)
• Unity-Gain Stable
• 2.2V to 5.5V Operation Voltage Range
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging:
SGM8965A-1 Available in Green SOT-23-5 and
SOIC-8 Packages
SGM8965A-2 Available in Green SOIC-8 and
MSOP-8 Packages
PIN CONFIGUTION
优势替代
FEATURES
• Low noise: 2.7 nV/√Hz at f = 10 kHz
• Low offset voltage: 250 µV max over VCM
• Offset voltage drift: 0.4 µV/°C typ and 2.3 µV/°C max
• Bandwidth: 28 MHz
• Rail-to-rail input/output
• Unity gain stable
• 2.7 V to 5.5 V operation −40°C to +125°C operation
• Qualified for automotive applications

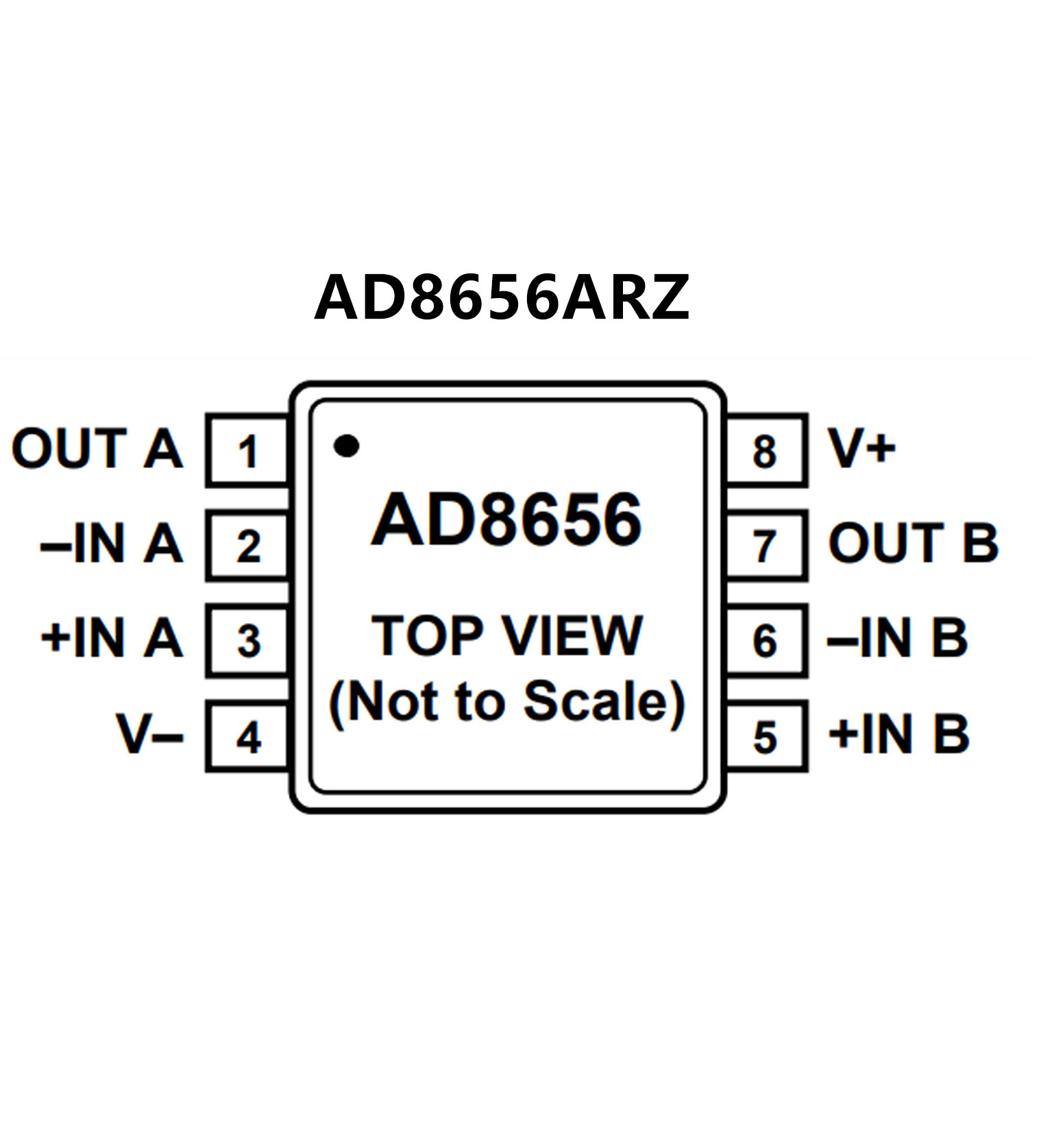

PIN CONFIGUTION
