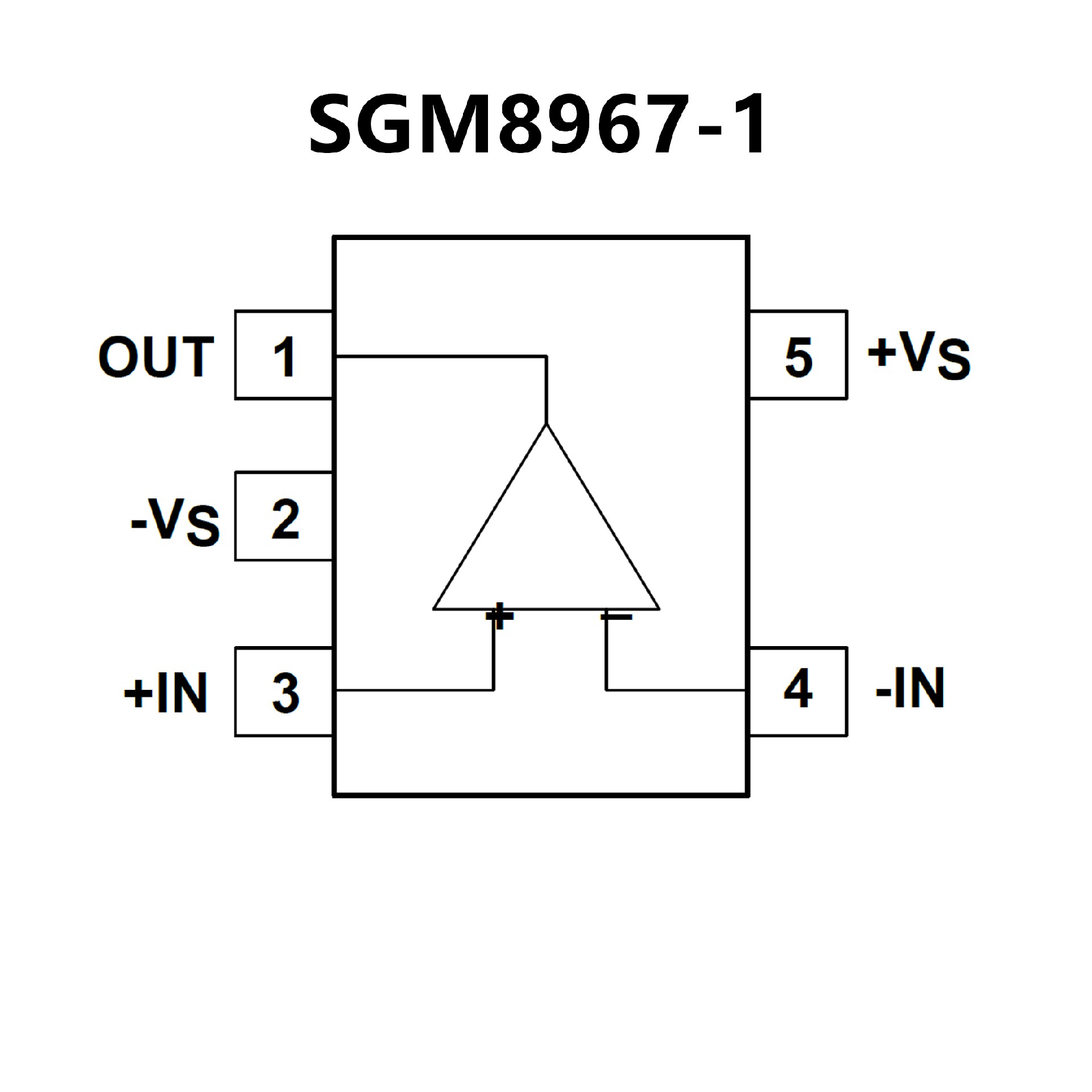

SGM8967-1XN5G.pdf• Rail-to-Rail Input and Output
• Input Offset Voltage: 240μV (MAX)
• High Gain-Bandwidth Product: 27MHz
• High Slew Rate: 30V/μs
• Settling Time to 0.1% with 2V Step: 120ns
• Overload Recovery Time: 60ns
• Low Noise: 8nV/ Hz at 10kHz
• Supply Voltage Range: 2.1V to 5.5V
• Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
• Low Power:
Supply Current: 2.7mA/Amplifier (TYP)
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging:
SGM8967-1 Available in Green SOT-23-5 and
SOIC-8 Packages
SGM8967-2 Available in Green MSOP-8 and
SOIC-8 Packages
SGM8967-4 Available in Green SOIC-14 and
TSSOP-14 Packages

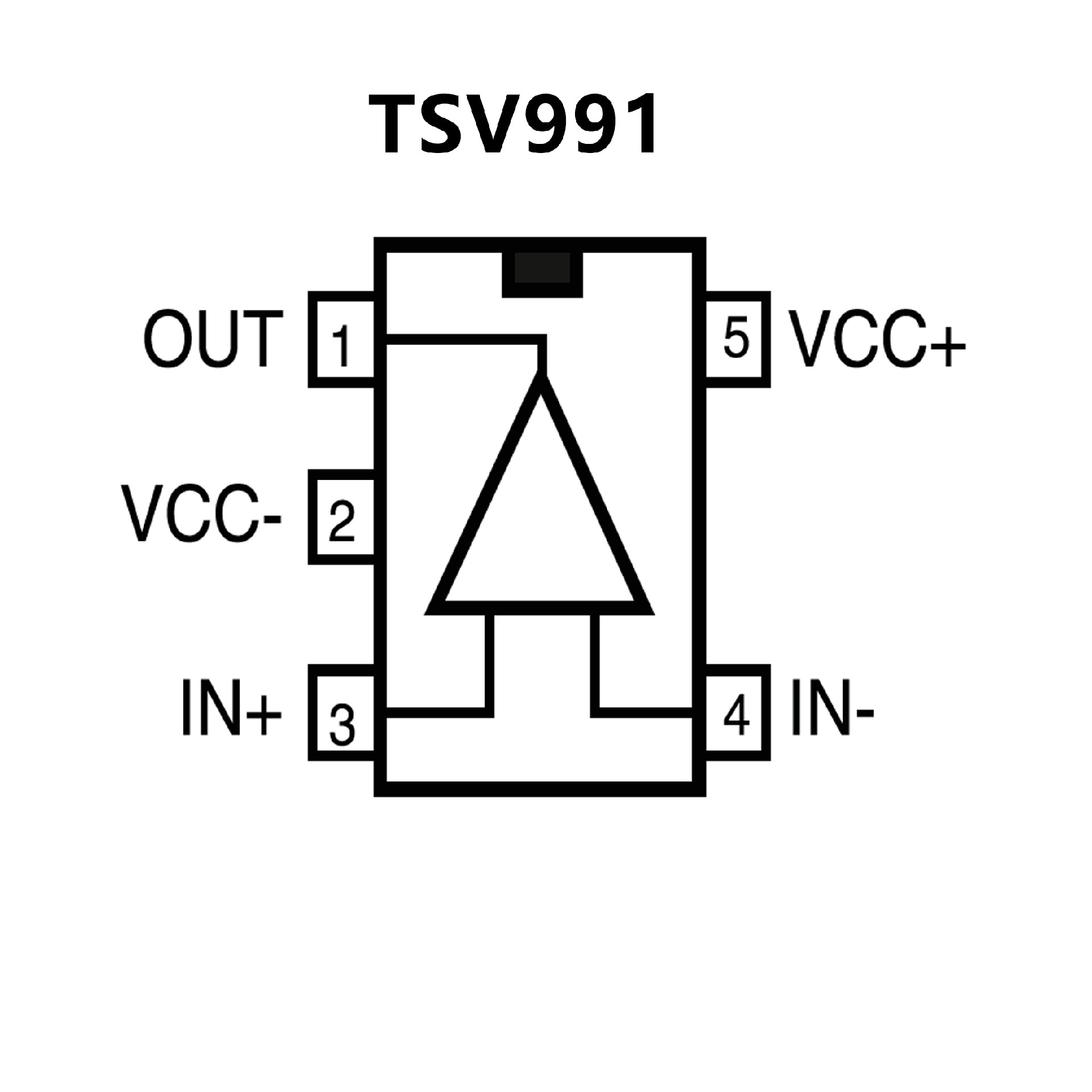

• Low input offset voltage: 1.5 mV max. (A grade)
• Rail-to-rail input and output
• Wide bandwidth 20 MHz
• Stable for gain ≥ 4 or ≤ -3
• Low power consumption: 820 μA typ.
• High output current: 35 mA
• Operating from 2.5 V to 5.5 V
• Low input bias current, 1 pA typ.
• ESD internal protection ≥ 5 kV
