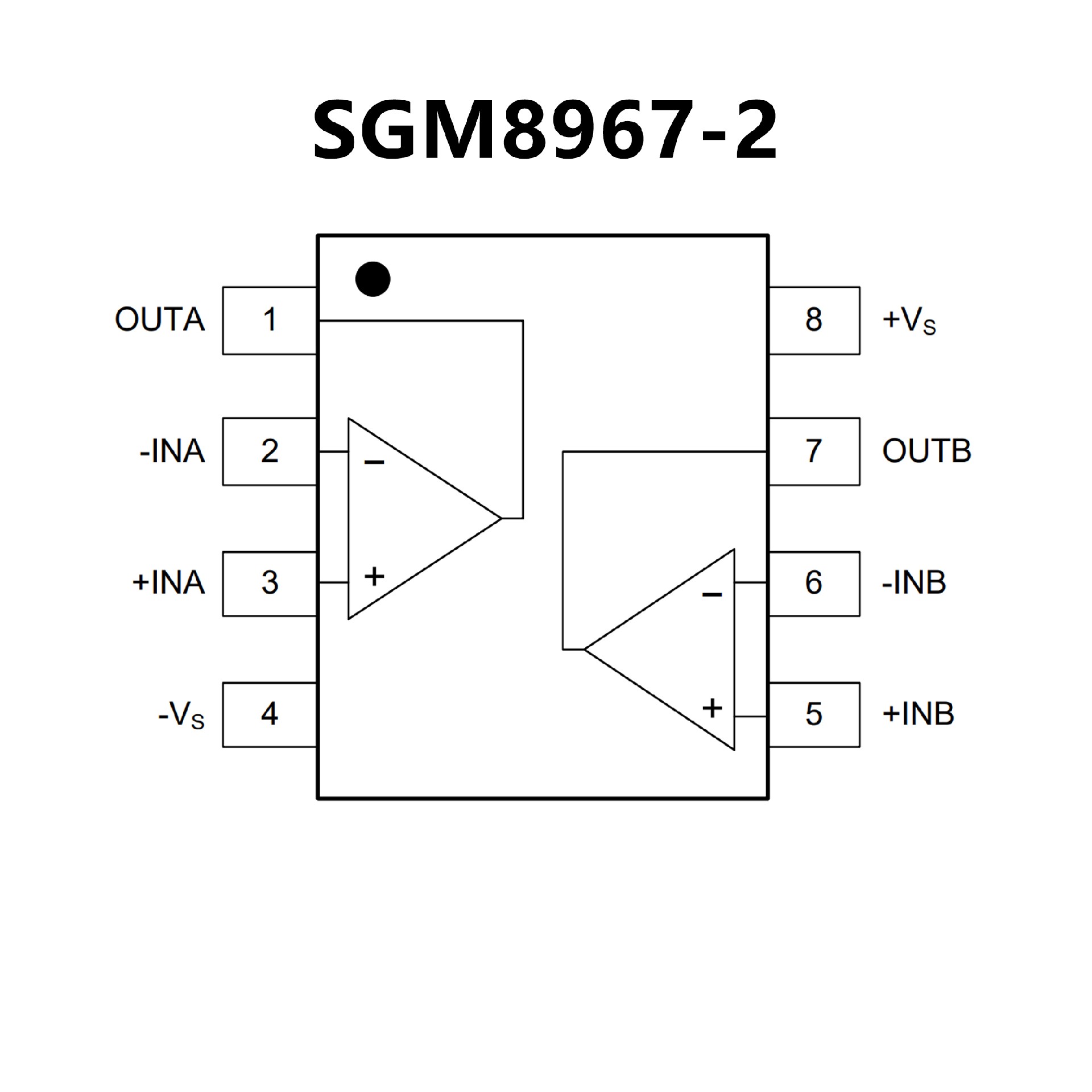

SGM8967-2.pdf• Rail-to-Rail Input and Output
• Input Offset Voltage: 240μV (MAX)
• High Gain-Bandwidth Product: 27MHz
• High Slew Rate: 30V/μs
• Settling Time to 0.1% with 2V Step: 120ns
• Overload Recovery Time: 60ns
• Low Noise: 8nV/ Hz at 10kHz
• Supply Voltage Range: 2.1V to 5.5V
• Input Voltage Range: -0.1V to 5.6V
with VS = 5.5V
• Low Power:Supply Current: 2.7mA/Amplifier (TYP)
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging:
SGM8967-1 Available in Green
SOT-23-5 andSOIC-8 Packages
SGM8967-2 Available in Green
MSOP-8 andSOIC-8 Packages
SGM8967-4 Available in Green
SOIC-14 andTSSOP-14 Packages
• Unless Otherwise Noted,
• Typical Values at VS = 5V.
• Input Offset Voltage ±150 μV (Max)
• Input Bias Current 100 fA
• Input Voltage Noise 5.8 nV/√Hz
• Gain Bandwidth Product 17 MHz

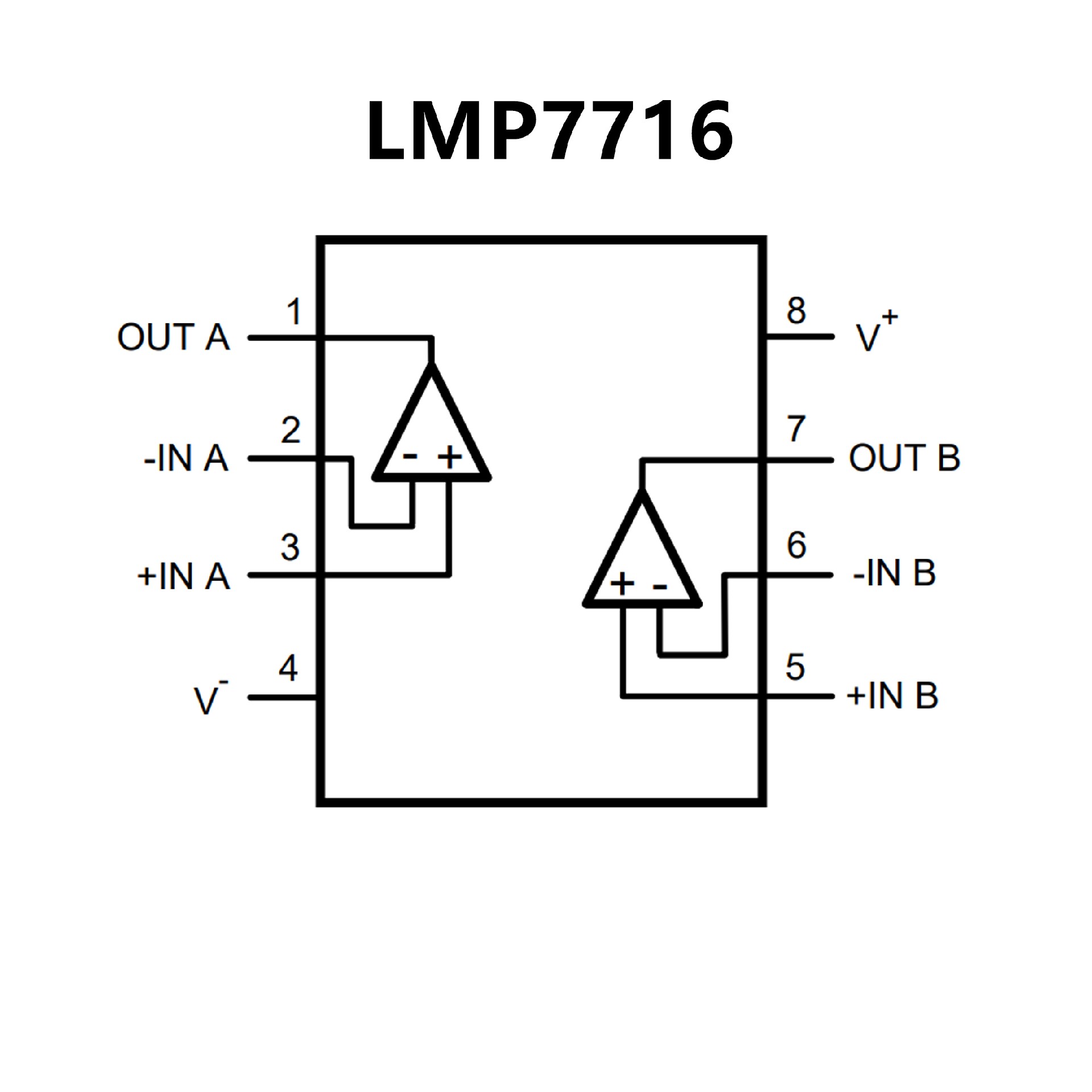

• Supply Current (LMP7715) 1.15 mA
• Supply Current (LMP7716/LMP7716Q) 1.30 mA
• Supply Voltage Range 1.8V to 5.5V
• THD+N @ f = 1 kHz 0.001%
• Operating Temperature Range −40°C to 125°C
• Rail-to-rail Output Swing
• Space Saving SOT-23 Package (LMP7715)
• 8-Pin VSSOP Package
(LMP7716/LMP7716Q)
• LMP7716Q is AEC-Q100 Grade 1
Qualified and is Manufactured
on an Automotive Grade Flow
