• Rail-to-Rail Input and Output

• Input Offset Voltage: 240μV (MAX)

• High Gain-Bandwidth Product: 27MHz

• High Slew Rate: 30V/μs

• Settling Time to 0.1% with 2V Step: 120ns

• Overload Recovery Time: 60ns

• Low Noise: 8nV/Hz at 10kHz

• Supply Voltage Range: 2.1V to 5.5V

• Input Voltage Range: -0.1V to 5.6V with VS = 5.5V

• Low Power:

  Supply Current: 2.7mA/Amplifier (TYP)

• -40℃ to +125℃ Operating Temperature Range

• Small Packaging:

  SGM8967-1 Available in Green SOT-23-5 and

  SOIC-8 Packages

  SGM8967-2 Available in Green MSOP-8 and

  SOIC-8 Packages

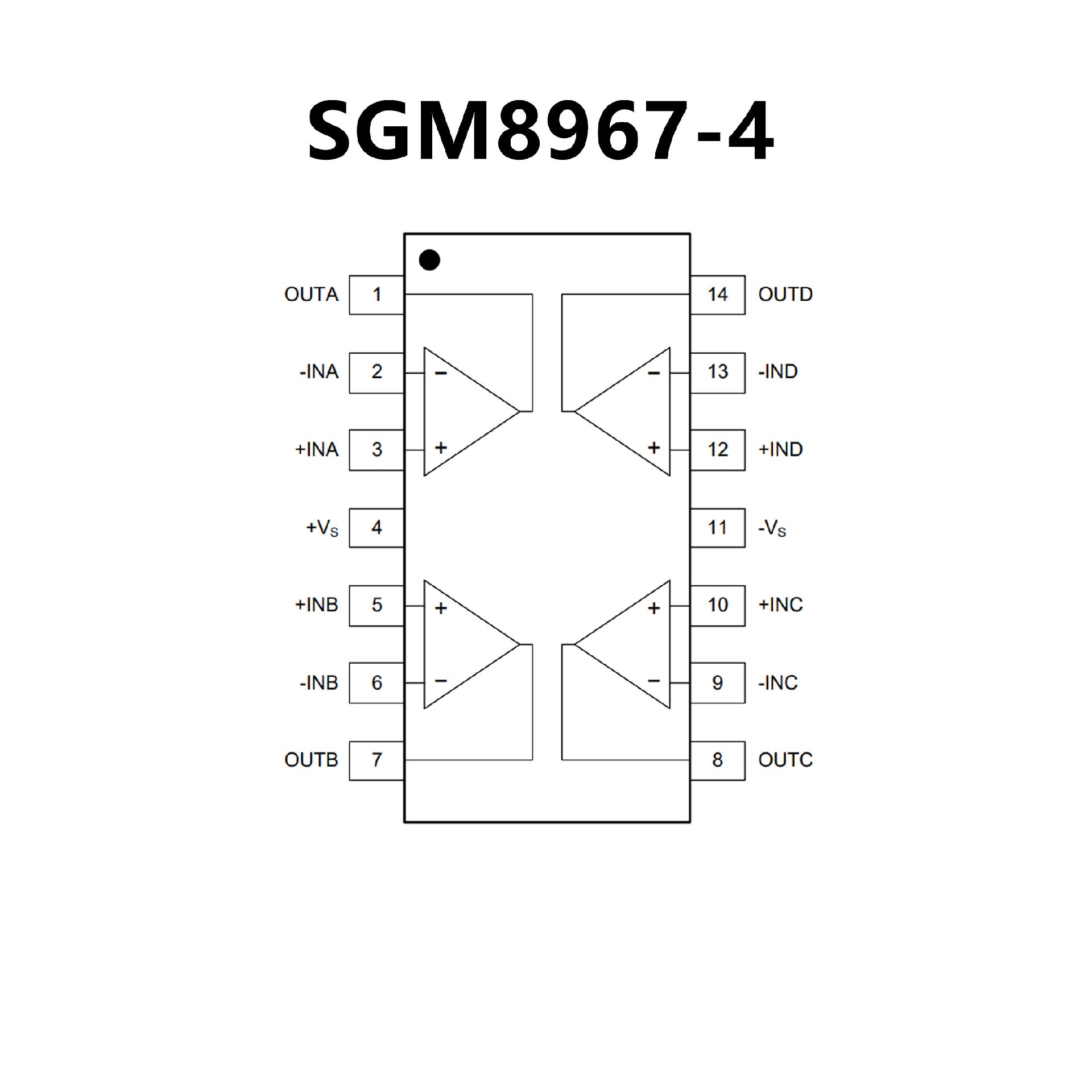

  SGM8967-4 Available in Green SOIC-14 and

  TSSOP-14 Packages
