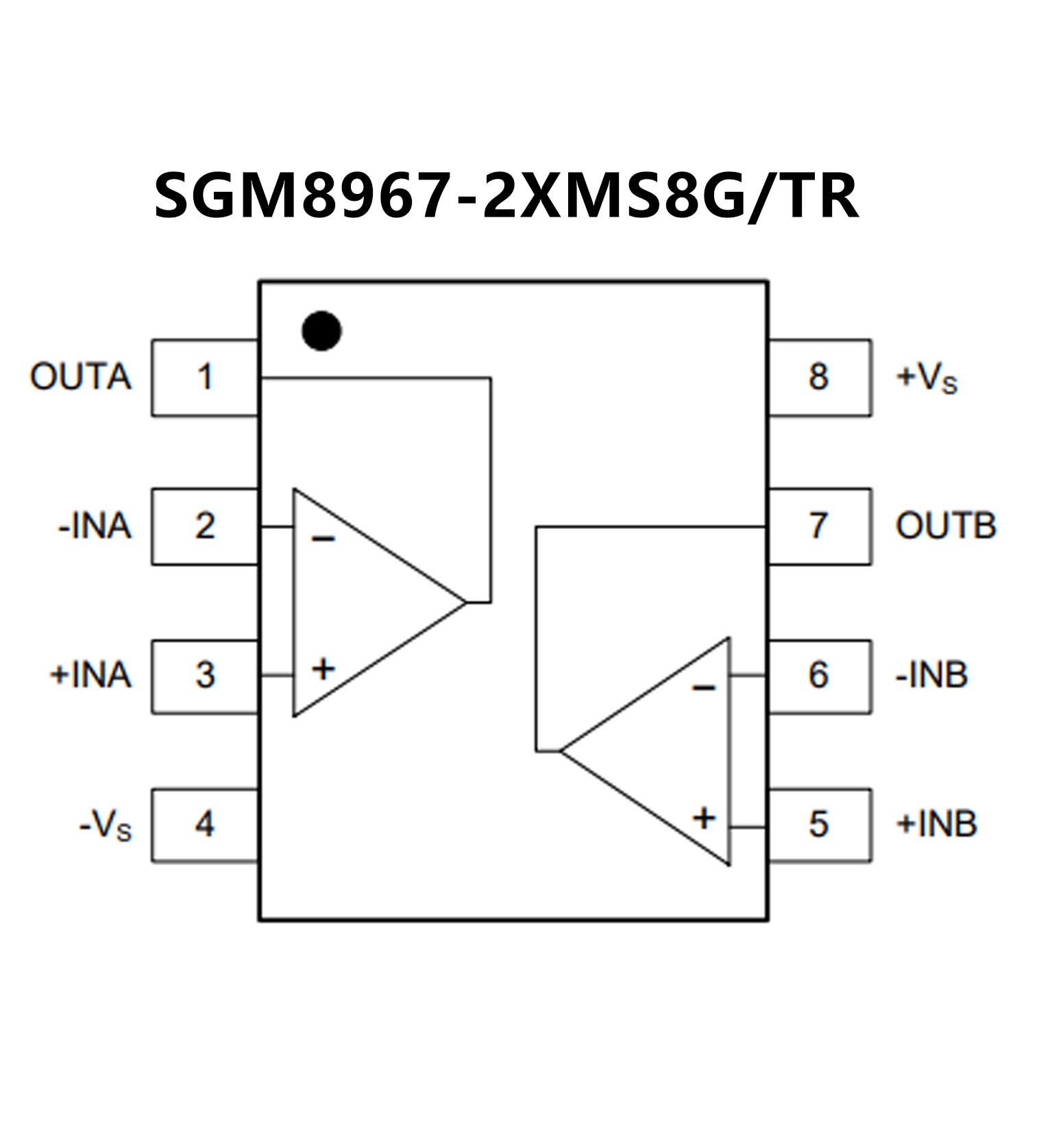

SGM8967.pdf• Rail-to-Rail Input and Output
• Input Offset Voltage: 240μV (MAX)
• High Gain-Bandwidth Product: 27MHz
• High Slew Rate: 30V/μs
• Settling Time to 0.1% with 2V Step: 120ns
• Overload Recovery Time: 60ns
• Low Noise: 8nV/ Hz at 10kHz
• Supply Voltage Range: 2.1V to 5.5V
• Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
• Low Power:Supply Current: 2.7mA/Amplifier (TYP)
SGM8967-3 Supply Current when Disabled: 0.1μA (TYP)
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging:SGM8967-1 Available in Green
SOT-23-5 andSOIC-8 PackagesSGM8967-2 Available
in Green MSOP-8 andSOIC-8 PackagesSGM8967-3
Available in a Green SOT-23-6 PackageSGM8967-4
Available in Green SOIC-14 andTSSOP-14 Packages

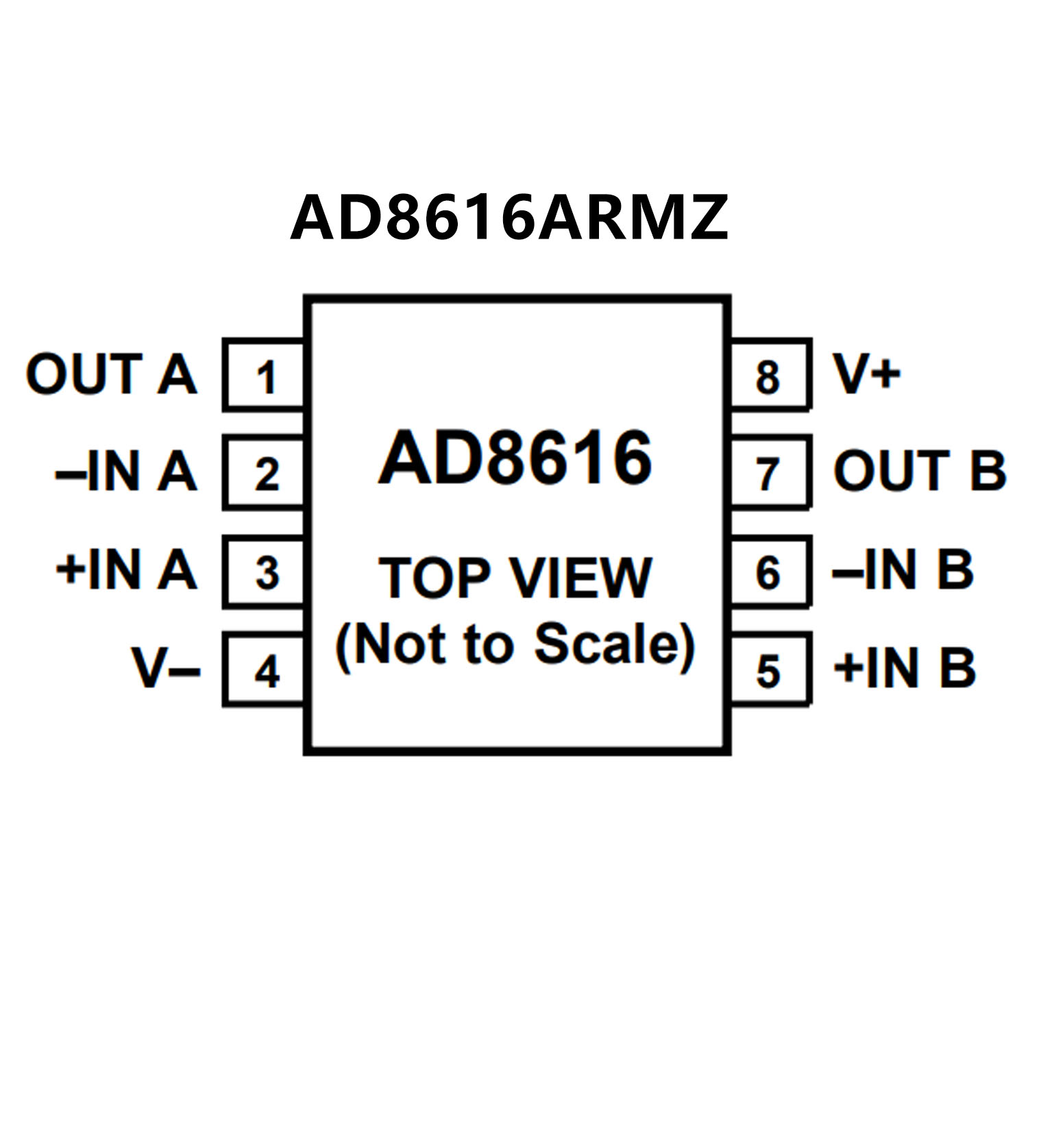

• Low offset voltage: 65 μV maximum
• Single-supply operation: 2.7 V to 5.0 V
• Low noise: 8 nV/√Hz
• Wide bandwidth: >20 MHz
• Slew rate: 12 V/μs
• High output current: 150 mA
• No phase reversal
• Low input bias current: 1 pA
• Low supply current: 2 mA
• Unity-gain stable
