SGM8968-1.pdf• Rail-to-Rail Input and Output
• Input Offset Voltage: 240μV (MAX)
• High Gain-Bandwidth Product: 10MHz
• High Slew Rate: 20V/μs
• Settling Time to 0.1% with 2V Step: 280ns
• Overload Recovery Time: 100ns
• Low Noise: 8nV/ Hz at 10kHz
• Supply Voltage Range: 1.8V to 5.5V
• Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
• Low Power:
Supply Current: 1.6mA/Amplifier (TYP)
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging:

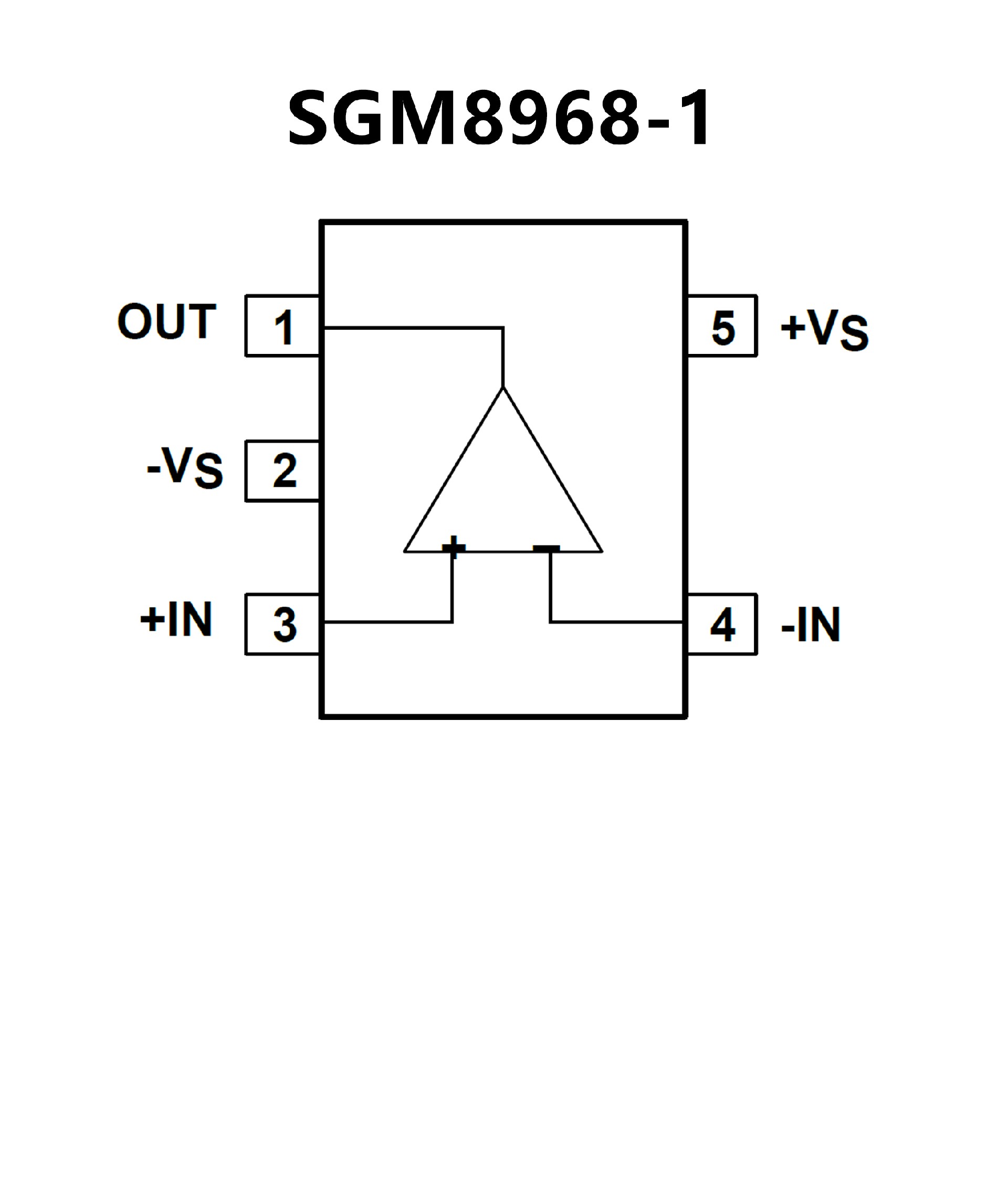

SGM8968-1 Available in Green SOT-23-5 and
SOIC-8 Packages
SGM8968-2 Available in Green SOIC-8 and
MSOP-8 Packages
SGM8968-4 Available in Green SOIC-14 and
TSSOP-14 Packages
• Rail-to-rail input and output
• Low input offset voltage: ±0.3 mV
• Unity-gain bandwidth: 10 MHz
• Low broadband noise: 10 nV/√Hz
• Low input bias current: 0.5 pA
• Low quiescent current: 538 μA
• Unity-gain stable
• Internal RFI and EMI filter
• Operational at supply voltages as low as 1.8 V
• Easier to stabilize with higher capacitive load due
to resistive open-loop output impedance

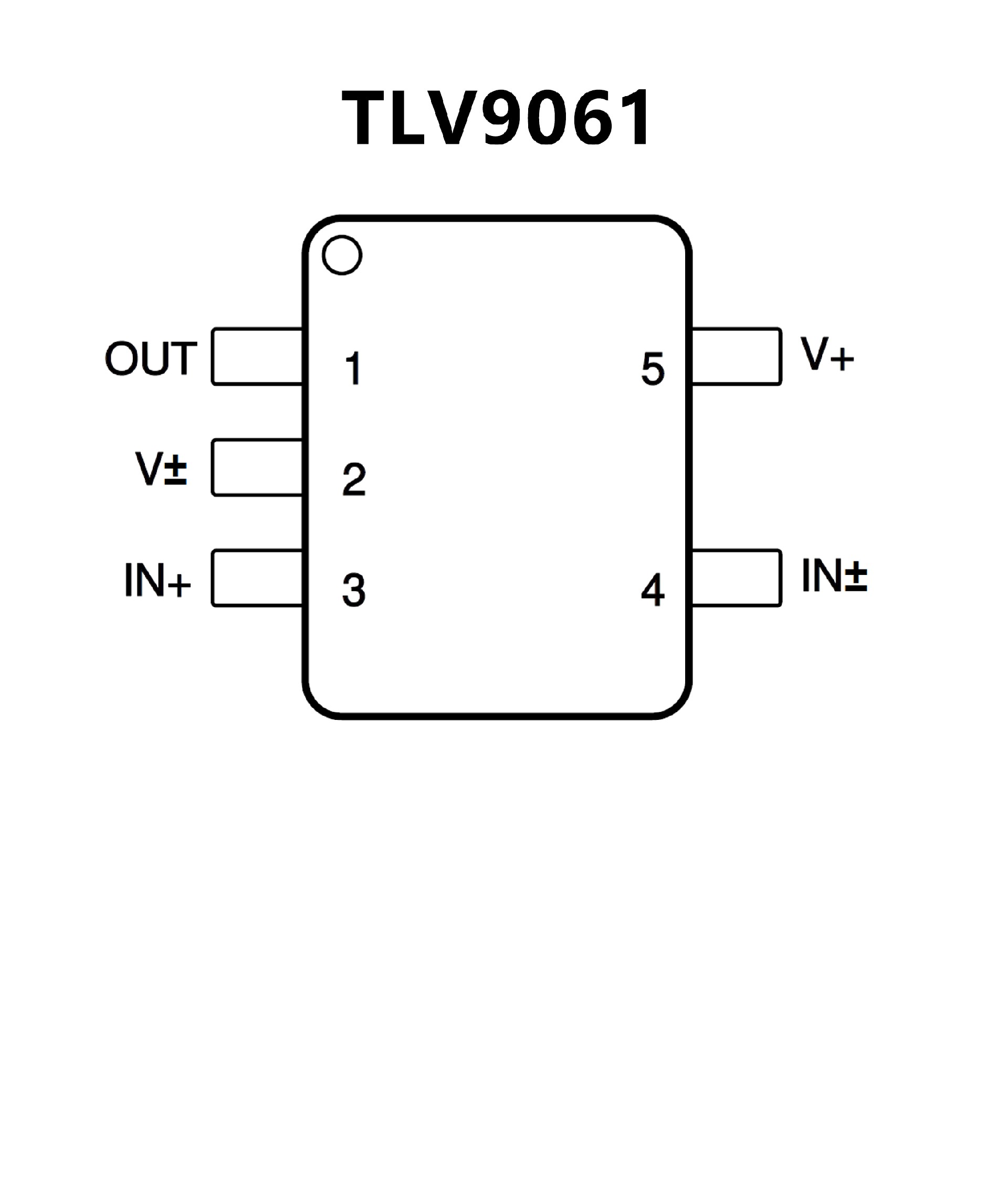

• Shutdown version: TLV906xS
• Extended temperature range: –40°C to 125°C
