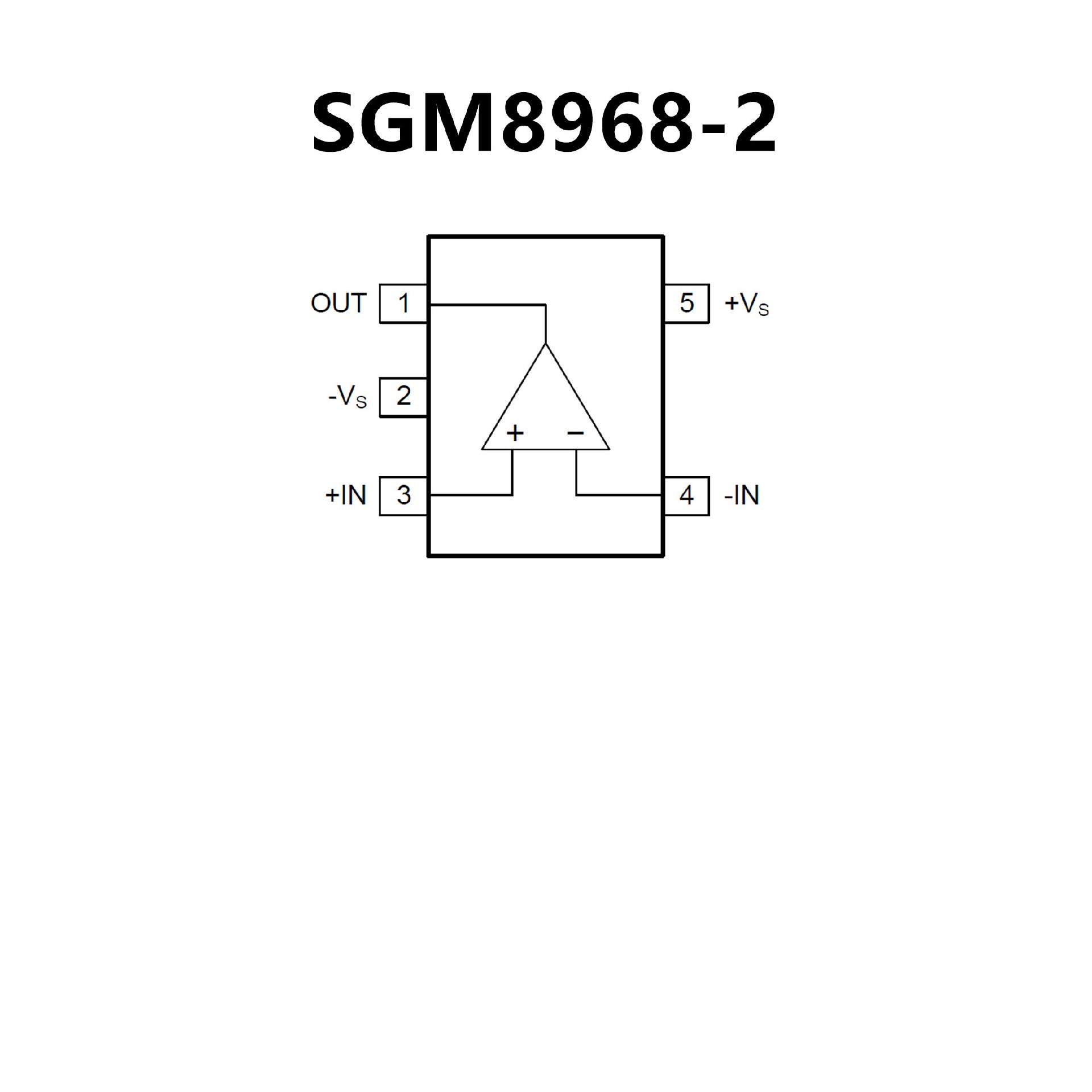

SGM8968-2.pdf• 1.6mA, 10MHz, High Precision, Rail-to-Rail I/O,
• Low Noise, CMOS Operational Amplifiers
• Low Noise: 8nV/ Hz at 10kHz
• Supply Voltage Range: 1.8V to 5.5V
• Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
• Low Power:
• Supply Current: 1.6mA/Amplifier (TYP)
• 40℃ to +125℃ Operating Temperature Range
• Small Packaging:
SGM8968-1 Available in Green
SOT-23-5 and SOIC-8 Packages
SGM8968-2 Available in Green
SOIC-8 and MSOP-8 Packages
SGM8968-4 Available in Green
SOIC-14 and TSSOP-14 Packages

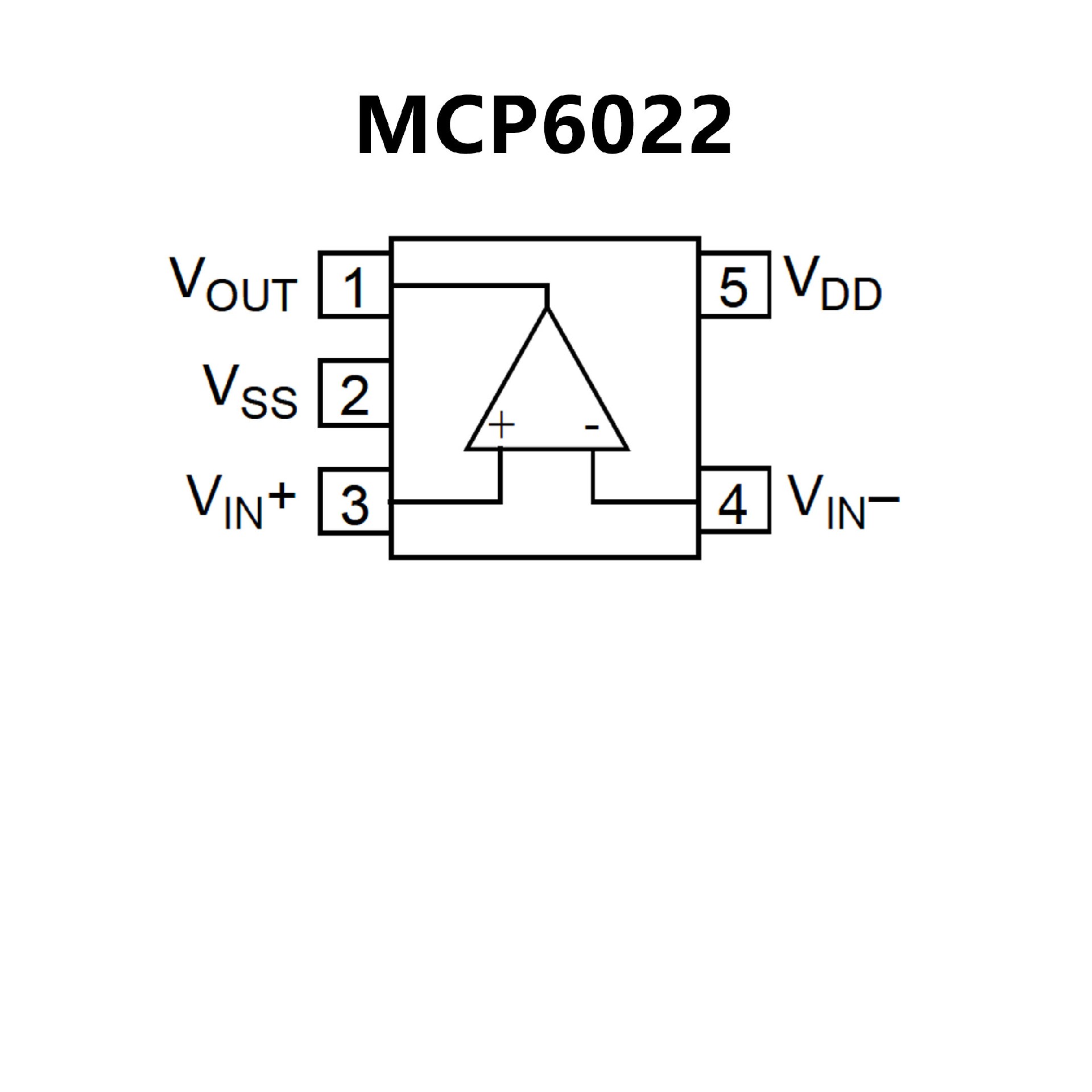

• Available in SC-70-5 and SOT-23-5 packages
• Gain Bandwidth Product: 1 MHz (typical)
• Rail-to-Rail Input/Output
• Supply Voltage: 1.8V to 6.0V
• Supply Current: IQ = 100 μA (typical)
• Phase Margin: 90° (typical)
• Temperature Range:
Industrial: -40°C to +85°C
Extended: -40°C to +125°C
• Available in Single, Dual and Quad Packages
