SGM8968-1.pdf• Rail-to-Rail Input and Output
• Input Offset Voltage: 50μV (TYP)
• High Gain-Bandwidth Product: 10MHz
• High Slew Rate: 20V/μs
• Settling Time to 0.1% with 2V Step: 280ns
• Overload Recovery Time: 100ns
• Low Noise: 8nV/ Hz at 10kHz
• Supply Voltage Range: 1.8V to 5.5V
• Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
• Low Power:Supply Current: 1.6mA/Amplifier (TYP)
• -40℃ to +125℃ Operating Temperature Range

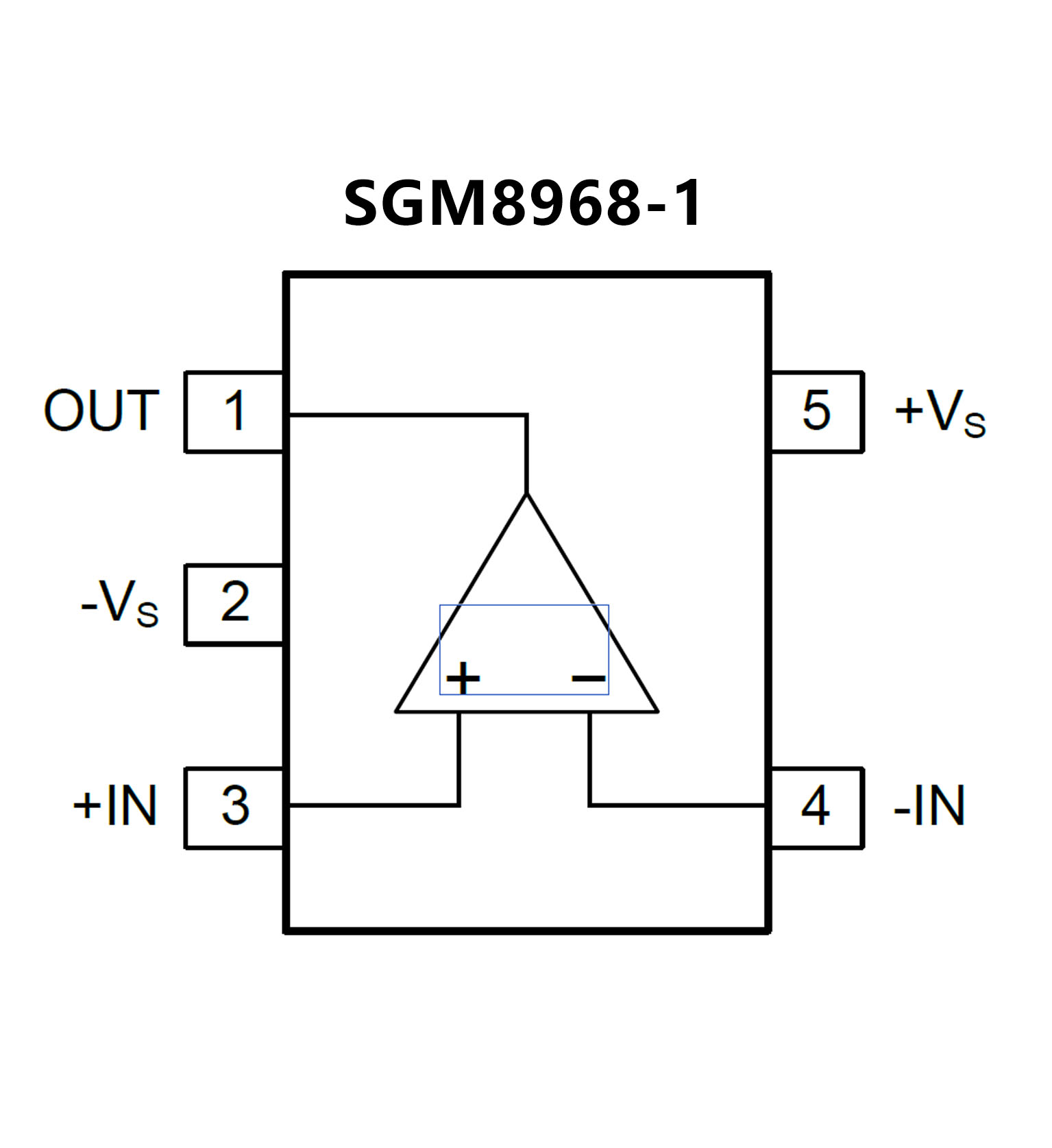

• Small Packaging:SGM8968-1 Available in
Green SOT-23-5 andSOIC-8 PackagesSGM8968-2
Available in Green SOIC-8 andMSOP-8 Packages
SGM8968-4 Available in Green
SOIC-14 andTSSOP-14 Packages
• Low offset voltage: 65 μV maximum
• Low input bias currents: 1 pA maximum
• Low noise: 8 nV/√Hz
• Wide bandwidth: 10 MHz
• High open-loop gain: 1000 V/mV
• Unity gain stable
• Single-supply operation: 2.7 V to 5.5 V

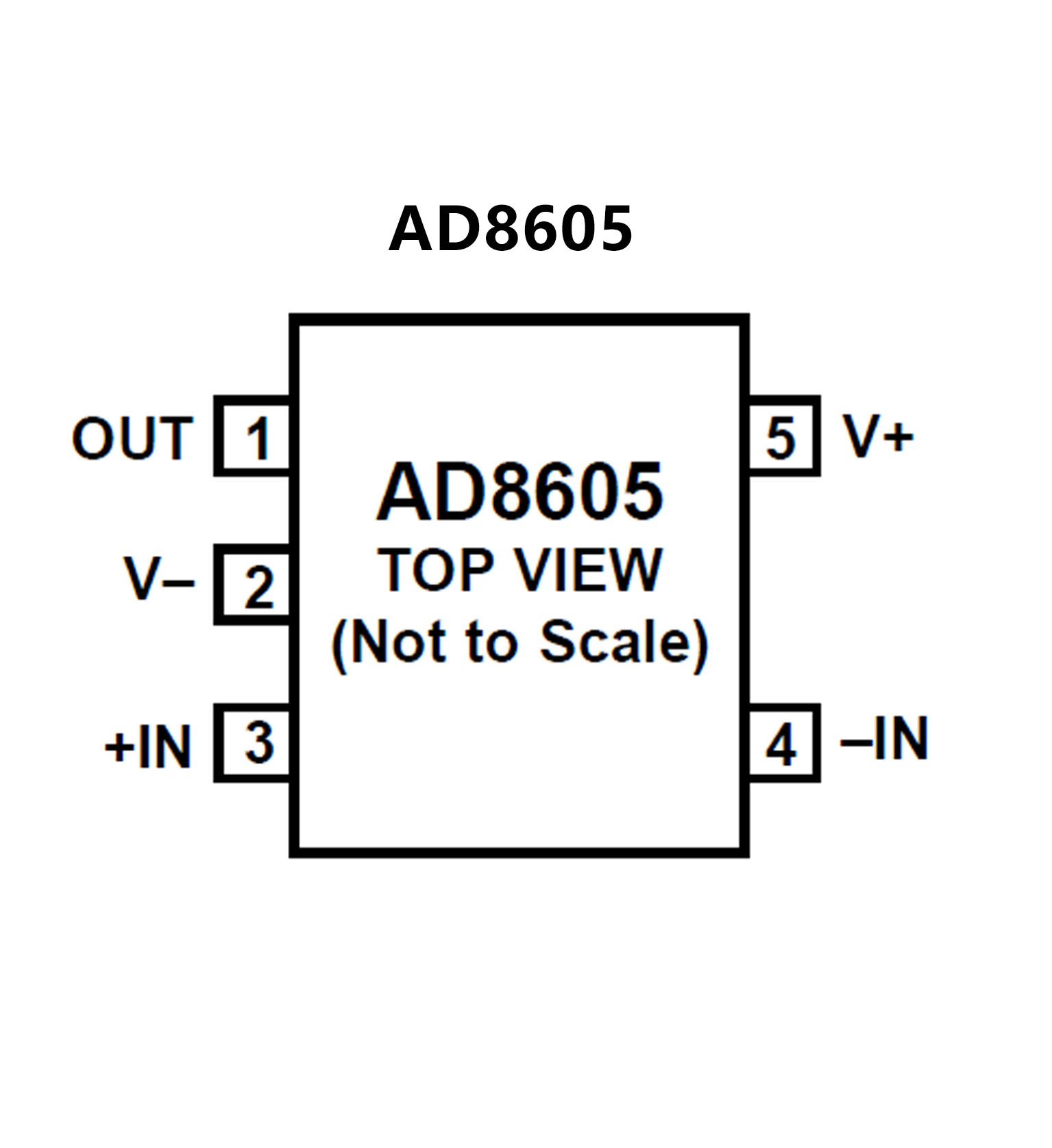

• 5-ball WLCSP for single (AD8605) and 8-ball WLCSP for
• dual (AD8606)
