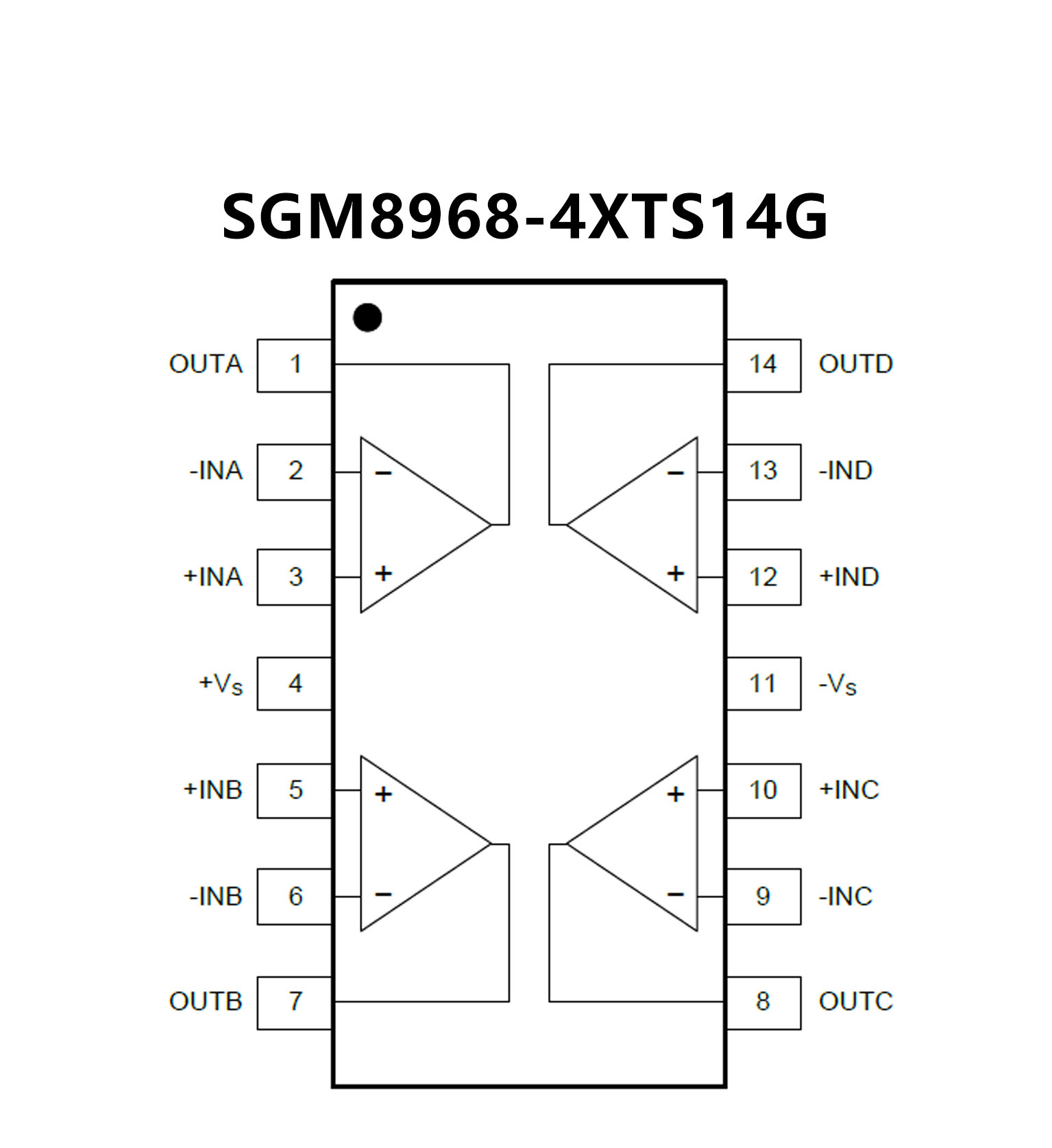

SGM8968-4.pdf• Rail-to-Rail Input and Output
• Input Offset Voltage: 50μV (TYP)
• High Gain-Bandwidth Product: 10MHz
• High Slew Rate: 20V/μs
• Settling Time to 0.1% with 2V Step: 280ns
• Overload Recovery Time: 100ns
• Low Noise: 8nV/ Hz at 10kHz
• Supply Voltage Range: 1.8V to 5.5V
• Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
• Low Power:Supply Current: 1.6mA/Amplifier (TYP)
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging:SGM8968-1 Available in Green
SOT-23-5 andSOIC-8 PackagesSGM8968-2 Available
in Green SOIC-8 andMSOP-8 PackagesSGM8968-4
Available in Green SOIC-14 andTSSOP-14 Packages

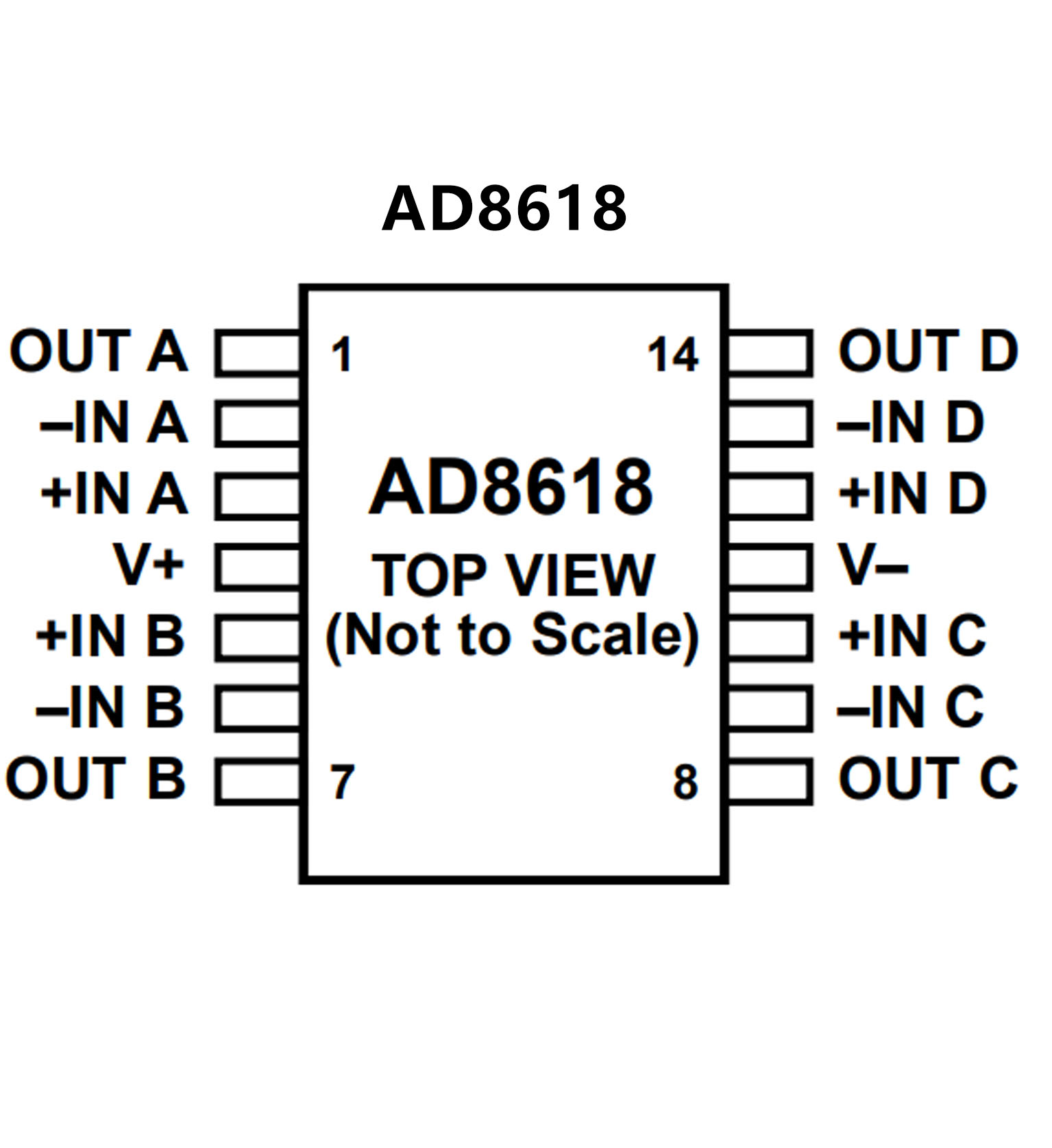

• Low offset voltage: 65 μV maximum
• Single-supply operation: 2.7 V to 5.0 V
• Low noise: 8 nV/√Hz
• Wide bandwidth: >20 MHz
• Slew rate: 12 V/μs High output current: 150 mA
• No phase reversal
• Low input bias current: 1 pA
• Low supply current: 2 mA
• Unity-gain stable
