600kHz, Low Noise, High Voltage,Precision Operational Amplifier, SGMOP07E Replace OPA177.
SGMOP07E
SGMOP07E.pdf
SGMOP07E.pdfFEATURES
• Rail-to-Rail Output
• Low Bias Current: ±1nA (TYP)
• High Open-Loop Gain: 130dB at VS = ±15V
• High PSRR: 135dB
• Gain-Bandwidth Product: 600kHz
• Low Noise: 8.5nV/Hz at 1kHz
• Supply Voltage Range:
3.6V to 36V or ±1.8V to ±18V
• Input Common Mode Voltage Range:
(-VS) + 1.5V to (+VS) - 2V
• Low Quiescent Current: 0.75mA (TYP)
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SOIC-8 Package

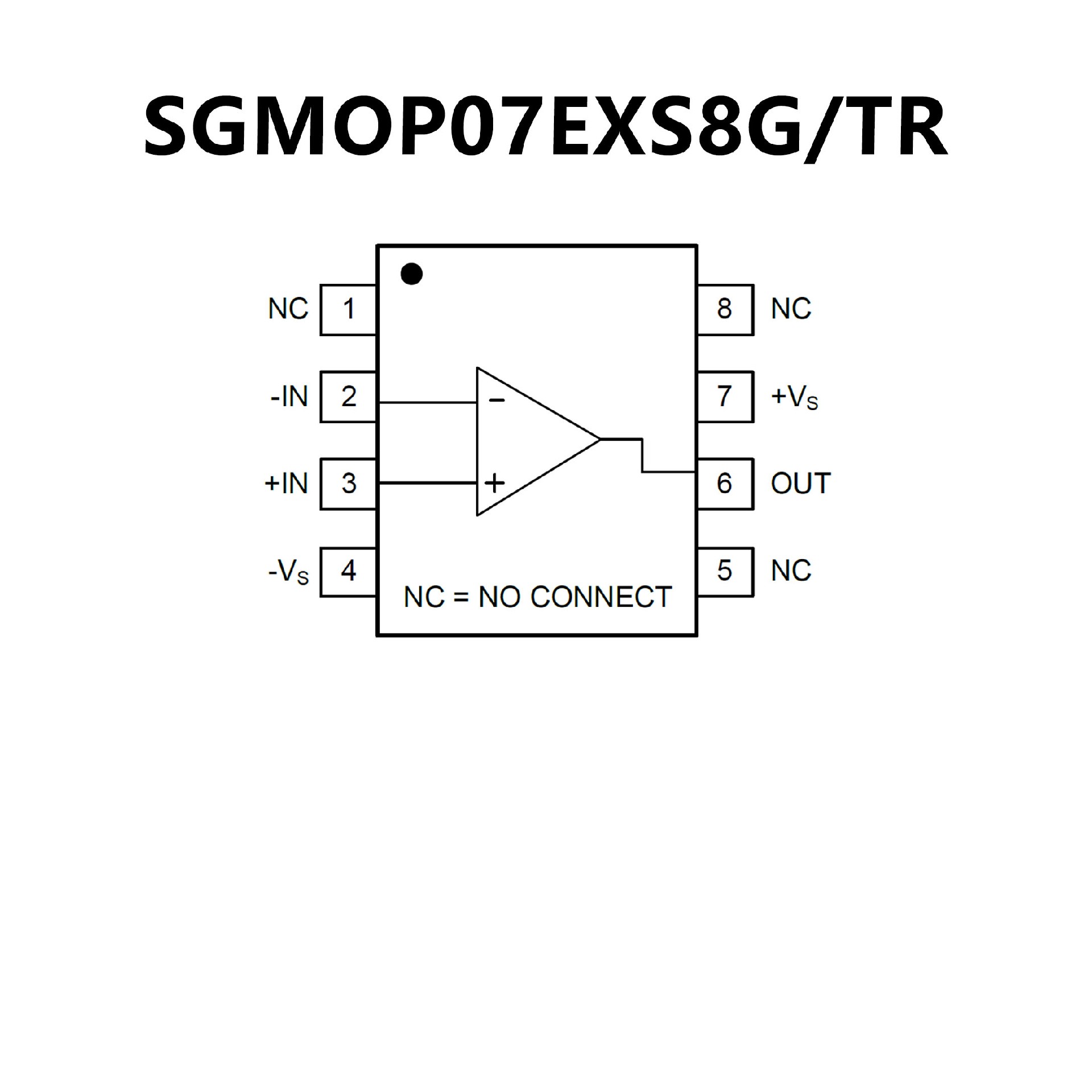

PIN CONFIGUTION
优势替代
FEATURES
• l LOW OFFSET VOLTAGE: 25mV max
• l LOW DRIFT: 0.3mV/°C
• l HIGH OPEN-LOOP GAIN: 130dB min
• l LOW QUIESCENT CURRENT: 1.5mA typ
• l REPLACES INDUSTRY-STANDARD OP
• AMPS: OP-07, OP-77, OP-177, AD707,ETC.

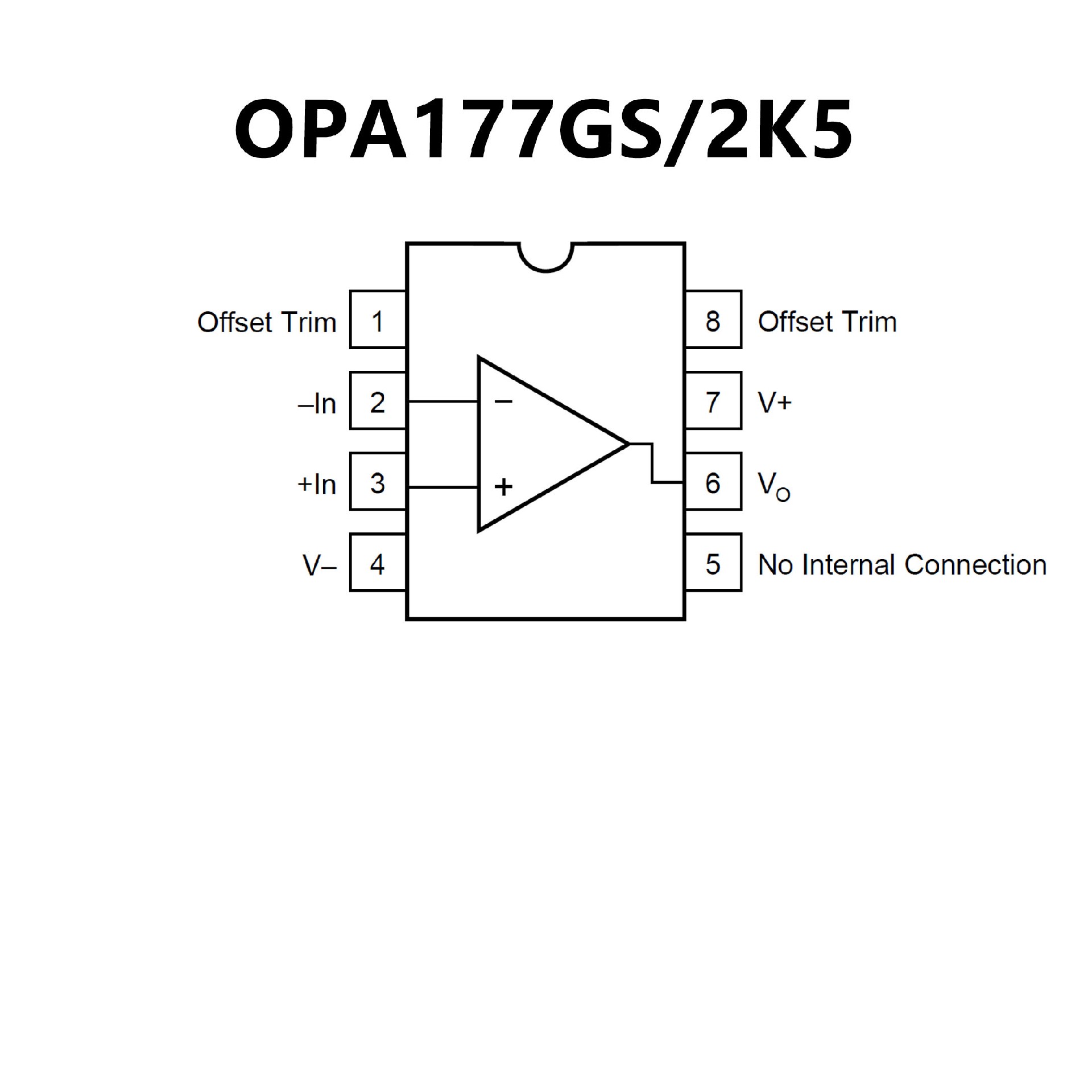

PIN CONFIGUTION
