3.6-A Brushed DC Motor Driver (PWM Control), TMI8080 Replace DRV8870.
TMI8080.pdf优势替代
FEATURES
• H-Bridge Motor Driver
– Drives One DC Motor, One Winding of a
Stepper Motor, or Other Loads
• Wide 6.5-V to 45-V Operating Voltage
• 565-mΩ Typical RDS(on) (HS + LS)
• 3.6-A Peak Current Drive
• PWM Control Interface
• Integrated Current Regulation
• Low-Power Sleep Mode
• Small Package and Footprint
– 8-Pin HSOP With PowerPAD™
– 4.9 × 6.0 mm

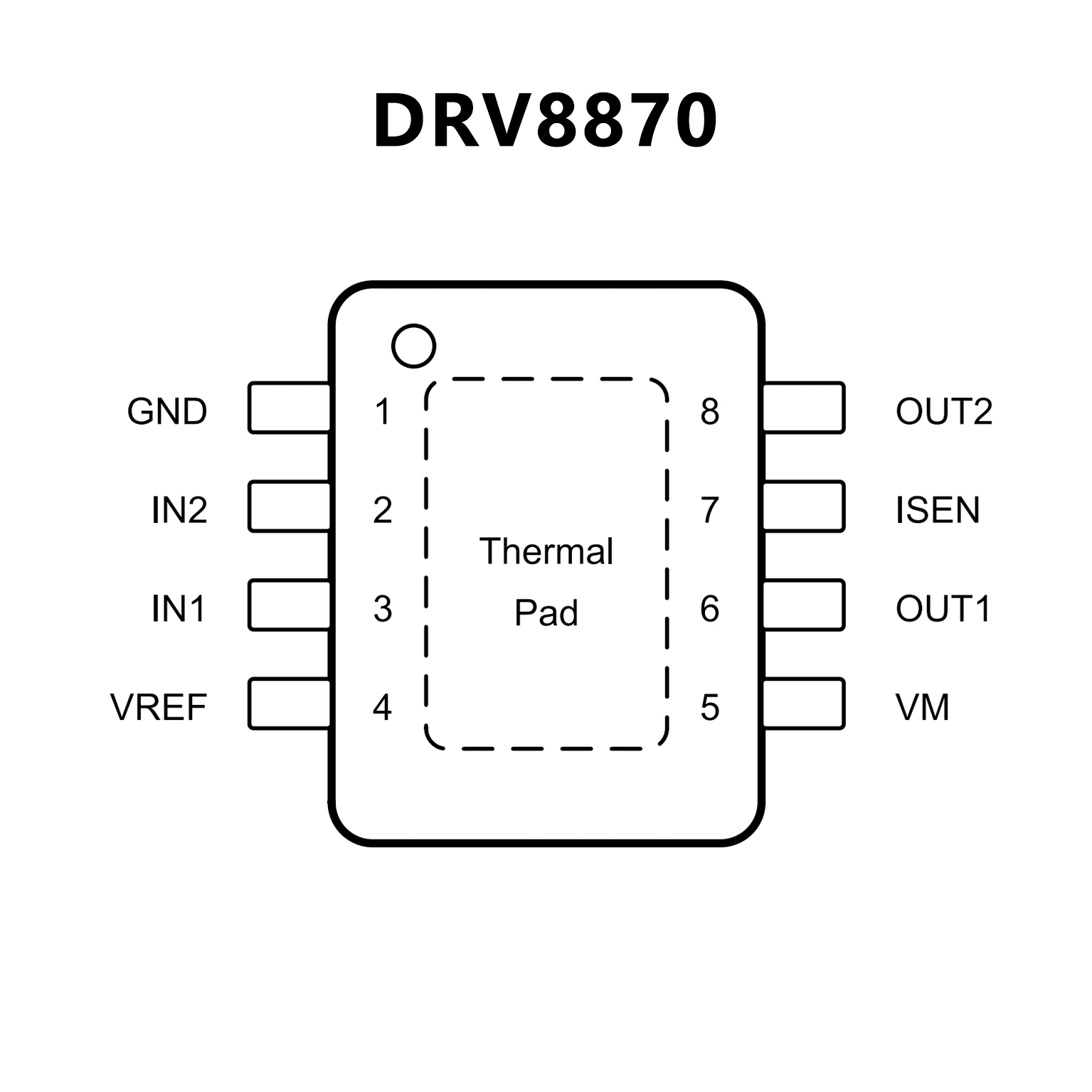

PIN CONFIGUTION
