45V, 15A low VF Trench MEGA Schottky barrier rectifier, TSUP15M45SH Replace PMEG045T150EPD.
TSUP15M45SH
TSUP15M45SH.pdf
TSUP15M45SH.pdfFEATURES
• AEC-Q101 qualified
• Patented Trench Schottky technology
• Low power loss, high efficiency
• Ideal for automated placement
• Wettable flank
• Moisture sensitivity level: level 1, per J-STD-020
• RoHS Compliant
• Halogen-free according to IEC 61249-2-21

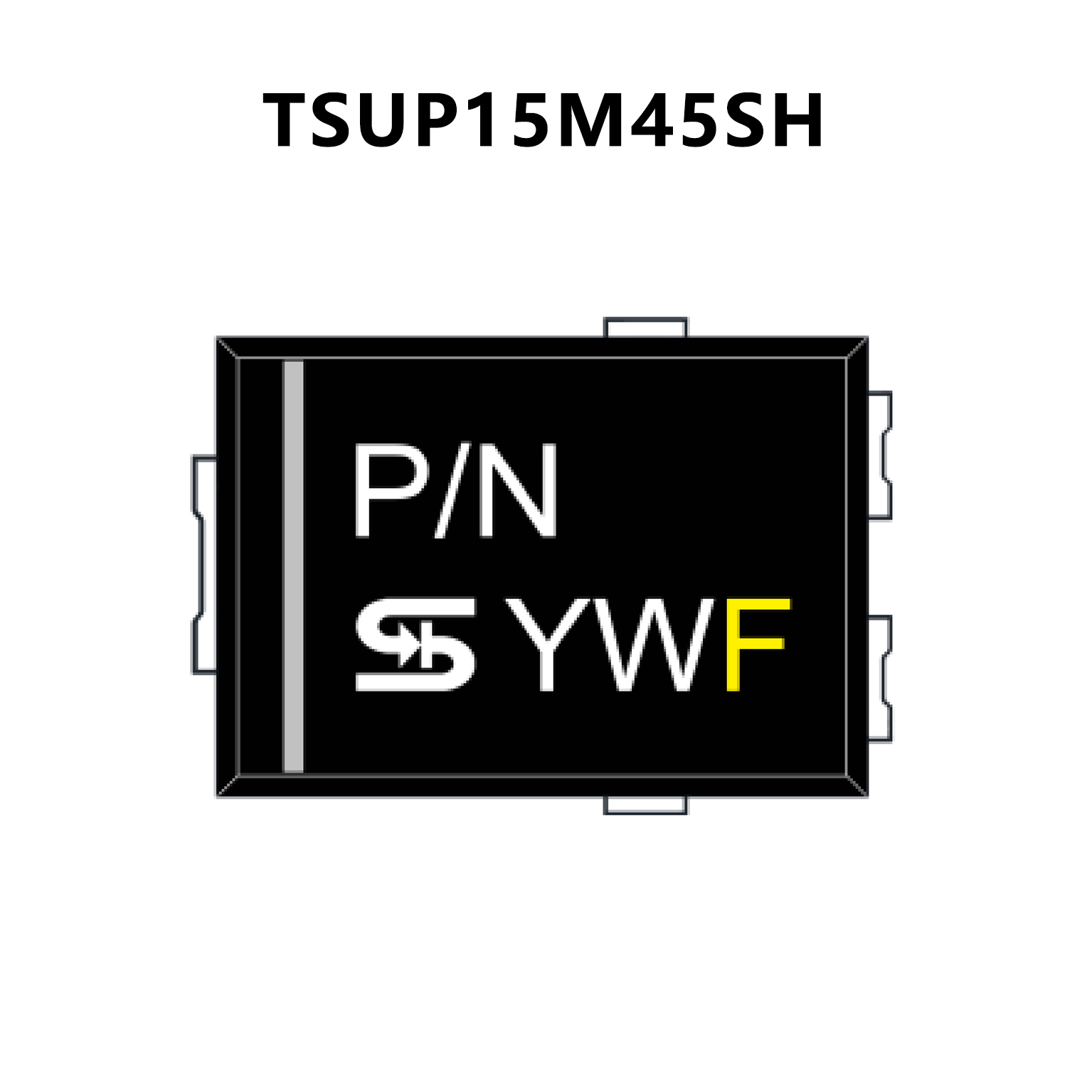

PIN CONFIGUTION
优势替代
FEATURES
• Average forward current: IF(AV) ≤ 15 A
• Reverse voltage: VR ≤ 45 V
• Low forward voltage
• Low leakage current due to Trench MEGA Schottky
technology
• High power capability due to clip-bonding technology
and heat sink
• Small and thin SMD power plastic package, typical
height 0.78 mm
• AEC-Q101 qualified

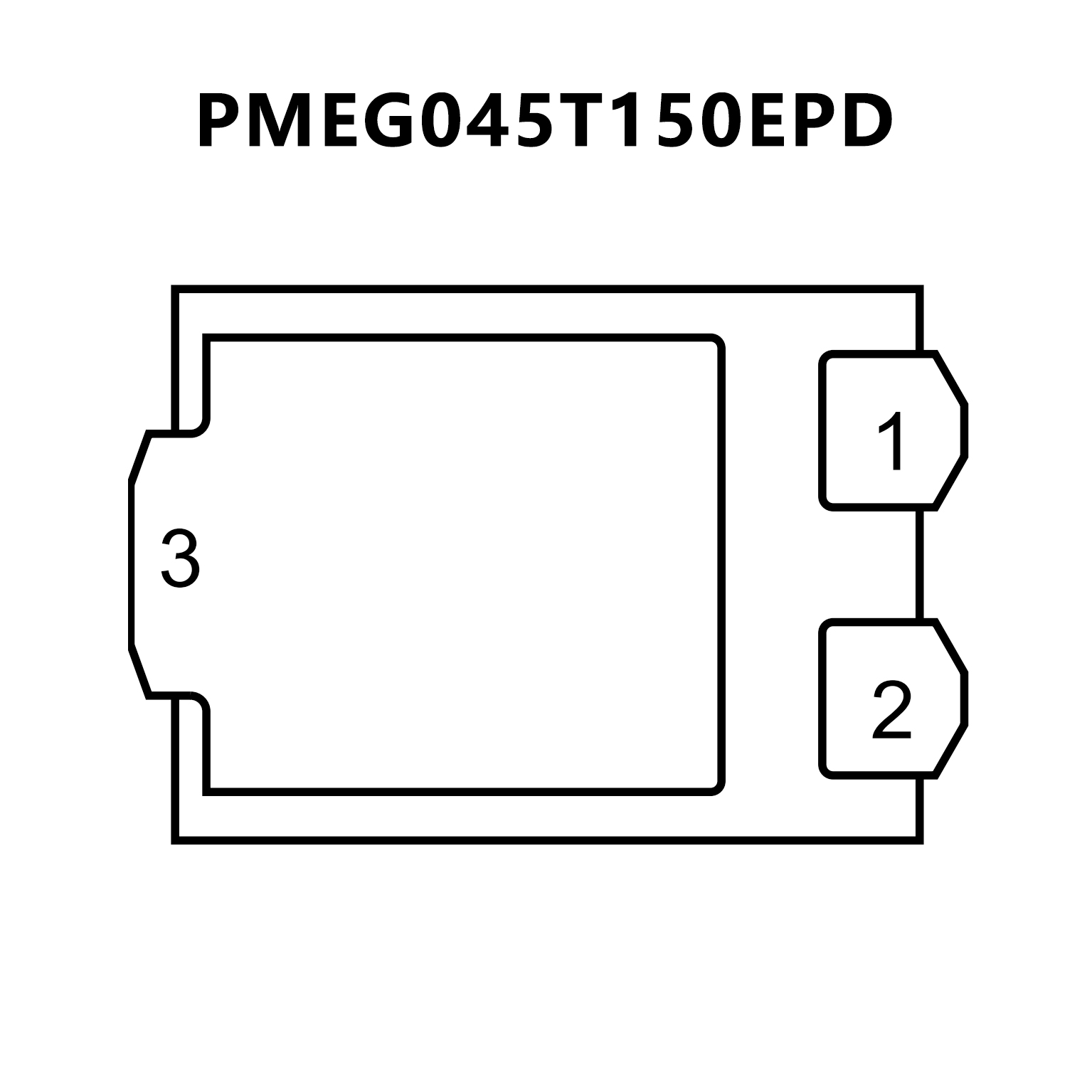

PIN CONFIGUTION
