High-Side Measurement Current Shunt Monitor, ZXCT1082 Replace INA168.
ZXCT1082
ZXCT1082.pdf
ZXCT1082.pdfFEATURES
• Wide supply and common-mode voltage range
2.7V to 60V ZXCT1082/84/86
2.7V to 40V ZXCT1083/85/87
• Independent supply and input common-mode voltage
• Low quiescent current (0.6µA).
• AEC-Q100 Grade 1 qualified
• Extended industrial temperate range -40 to 125°C
• Package SOT25

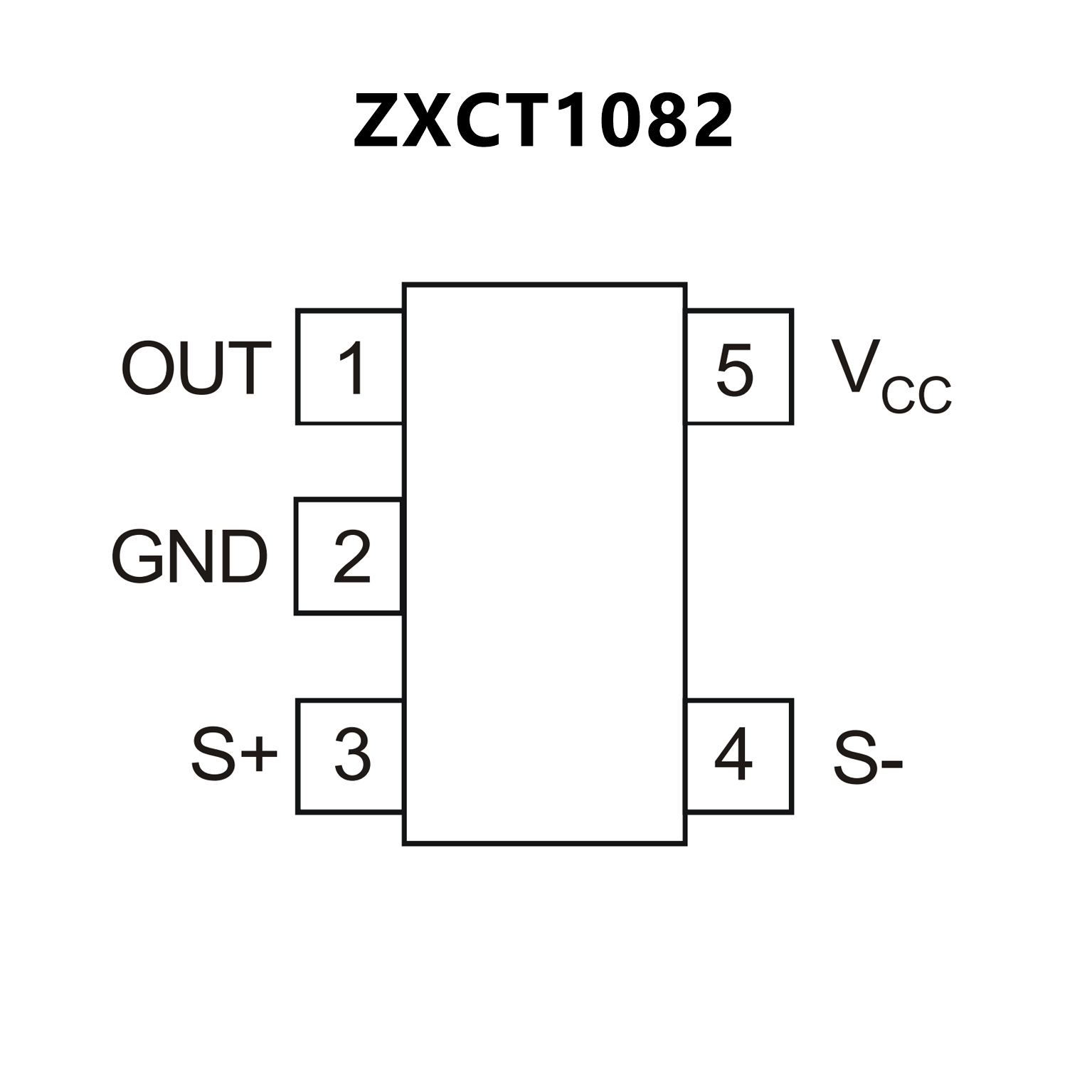

PIN CONFIGUTION
优势替代
FEATURES
• Complete Unipolar High-Side Current
Measurement Circuit
• Wide Supply and Common-Mode Range
• INA138: 2.7 V to 36 V
• INA168: 2.7 V to 60 V
• Independent Supply and Input Common-Mode
Voltages
• Single Resistor Gain Set
• Low Quiescent Current (25 µA Typical)
• Wide Temperature Range: –40°C to +125°C
• 5-Pin SOT-23 Package

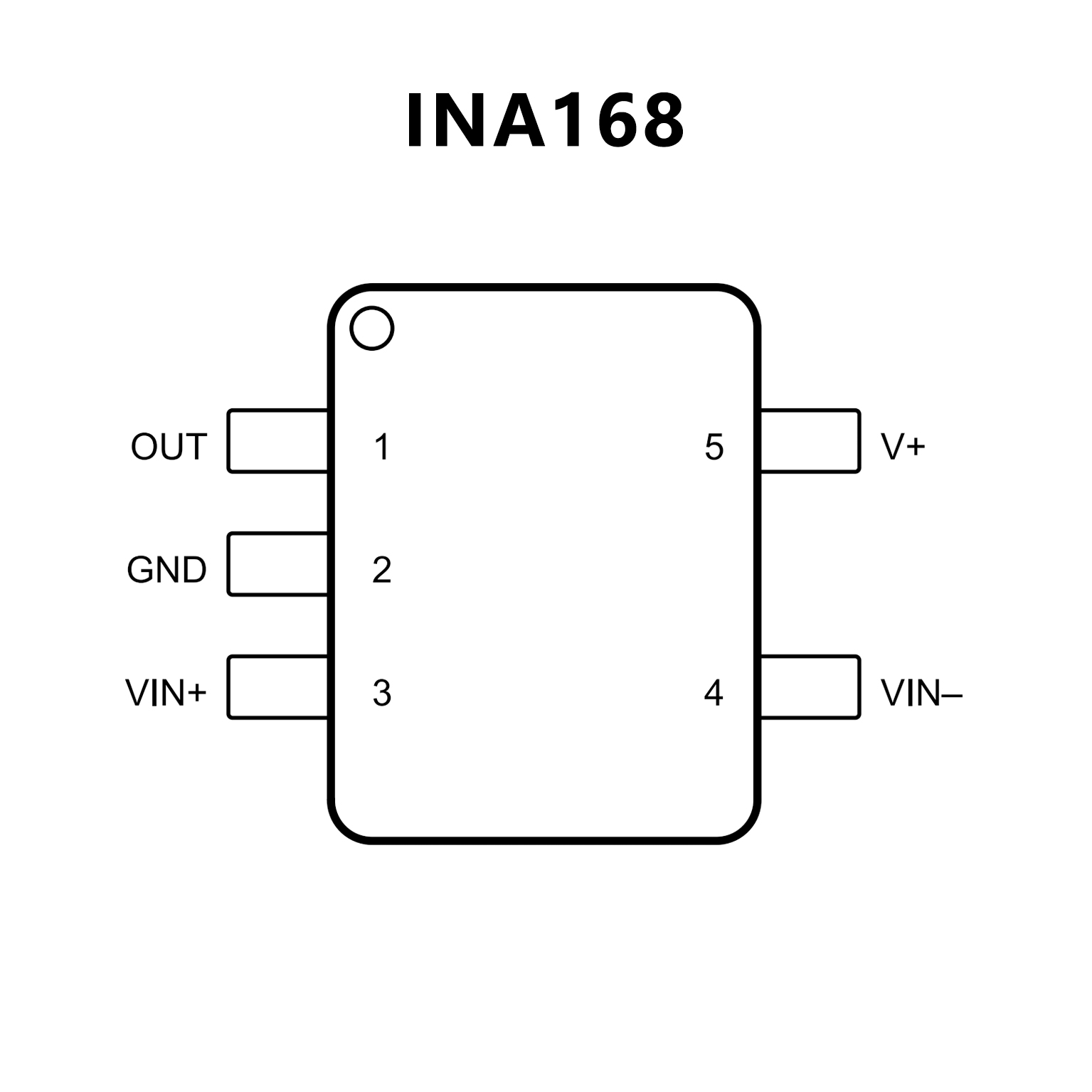

PIN CONFIGUTION
