26V, Zero-Drift, High-Precision Current Monitors, ZXCT210 Replace INA210.
ZXCT210
ZXCT210.pdf
ZXCT210.pdfFEATURES
• Supply Voltage Range: 2.7V to 26V
• Temperature Range: -40°C to +125°C
• Wide Common-Mode Range: -0.3V to 26V
• Support Shunt Drops of 10mV Full-Scale
• Gain Error (Maximum Overtemperature)
• A and B Version: ±0.8%
• C Version: ±0.5%
• Low Offset Voltage: ±30μV (max)
• Quiescent Current: 100μA (max)
• Low Gain Error Drift: 10ppm/°C (max)
• Rail-to-Rail Output Capacity
• Choice of Gains:
– ZXCT210: 200V/V
– ZXCT211: 500V/V
– ZXCT212: 1000V/V
– ZXCT213: 50V/V
– ZXCT214: 100V/V
– ZXCT215: 75V/V
• Package: 6-pin SOT363 and 10-pin U-QFN1418-10
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• An automotive-compliant part is available under separate
datasheet (ZXCT21xQ)

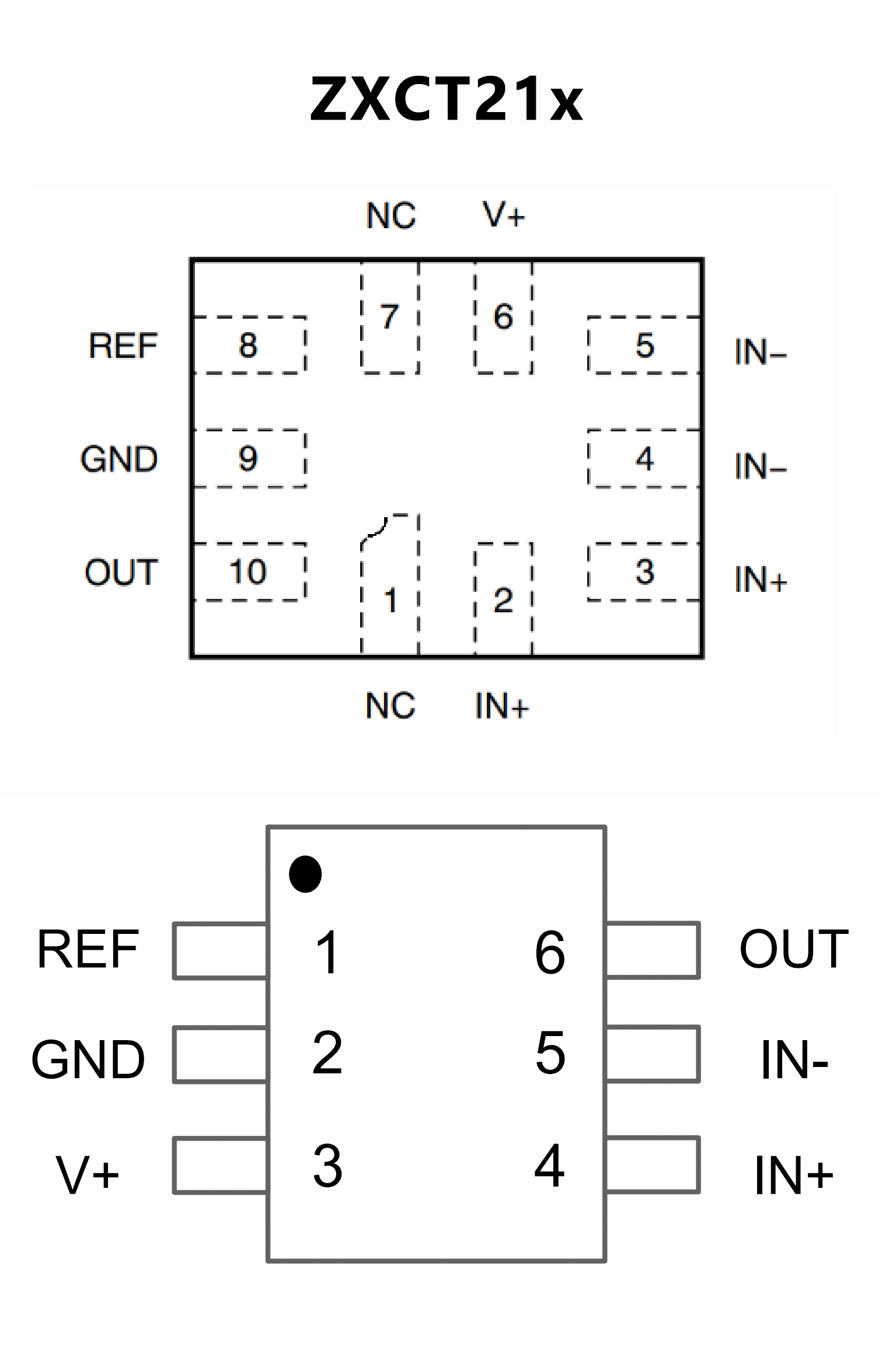

PIN CONFIGUTION
优势替代
FEATURES
• Updated format to match new TI layout and flow.
Tables, figures and cross-references use a new
numbering sequence throughout the document.
Wide Common-Mode Range: –0.3 V to 26 V
• Offset Voltage: ±35 μV (Maximum, INA210)
(Enables Shunt Drops of 10-mV Full-Scale)
• Accuracy:
– Gain Error (Maximum Over Temperature):
• ±0.5% (Version C)
• ±1% (Versions A and B)
– 0.5-µV/°C Offset Drift (Maximum)
– 10-ppm/°C Gain Drift (Maximum)
• Choice of Gains:
– INA210: 200 V/V
– INA211: 500 V/V
– INA212: 1000 V/V
– INA213: 50 V/V
– INA214: 100 V/V
– INA215: 75 V/V
• Quiescent Current: 100 μA (Maximum)
• SC70 and Thin UQFN Packages: All Models

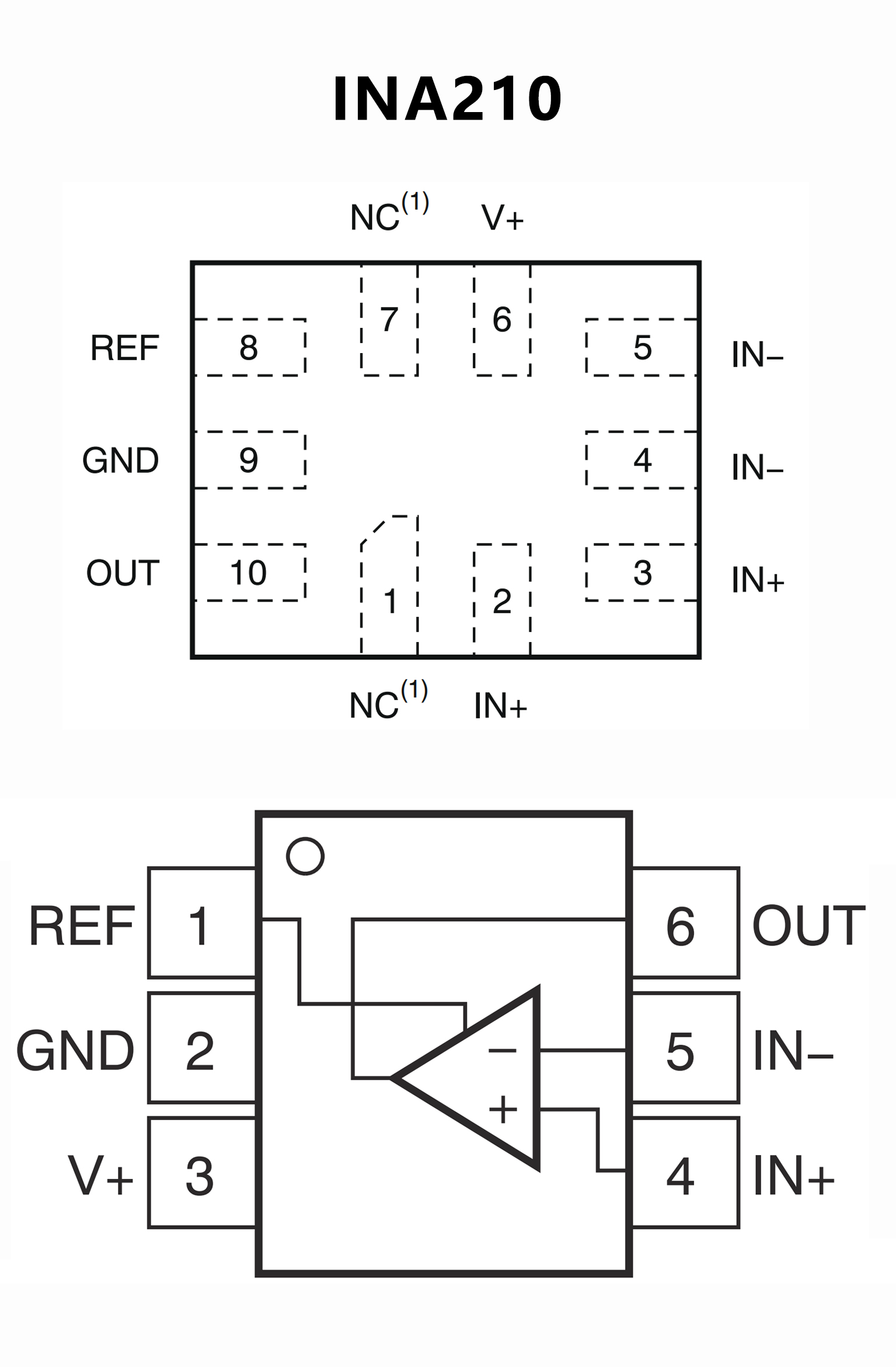

PIN CONFIGUTION
