26V, Zero-Drift, High-Precision Current Monitors, ZXCT210 Replace TSC210.
ZXCT210
ZXCT210.pdf
ZXCT210.pdfFEATURES
• Supply Voltage Range: 2.7V to 26V
• Temperature Range: -40°C to +125°C
• Wide Common-Mode Range: -0.3V to 26V
• Support Shunt Drops of 10mV Full-Scale
• Gain Error (Maximum Overtemperature)
• A and B Version: ±0.8%
• C Version: ±0.5%
• Low Offset Voltage: ±30μV (max)
• Quiescent Current: 100μA (max)
• Low Gain Error Drift: 10ppm/°C (max)
• Rail-to-Rail Output Capacity
• Choice of Gains:
– ZXCT210: 200V/V
– ZXCT211: 500V/V
– ZXCT212: 1000V/V
– ZXCT213: 50V/V
– ZXCT214: 100V/V
– ZXCT215: 75V/V
• Package: 6-pin SOT363 and 10-pin U-QFN1418-10
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• An automotive-compliant part is available under separate
datasheet (ZXCT21xQ)

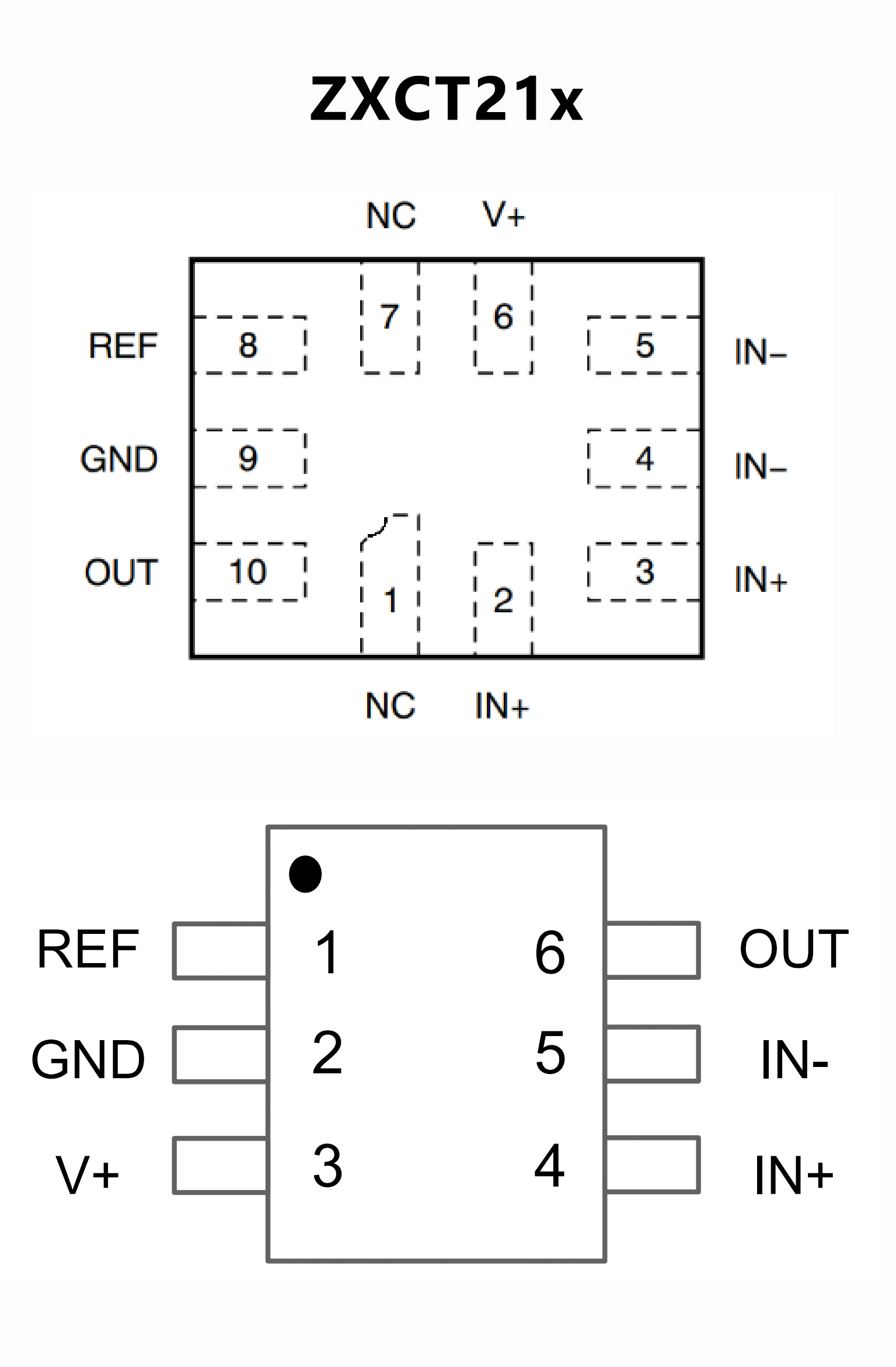

PIN CONFIGUTION
优势替代
FEATURES
• Wide common mode voltage: -0.3 to 26 V
• Offset voltage: ±35 µV max. (TSC210)
• 2.7 to 26 V supply voltage
• Different gain available
– TSC210 (200 V/V)
– TSC211 (500 V/V)
– TSC212 (1000 V/V)
– TSC213 (50 V/V)
– TSC214 (100 V/V)
– TSC215 (75 V/V)
• Gain error: ±1% max.
• Offset drift: 0.1 µV/°C max.
• Gain drift: 20 ppm/°C max.
• Quiescent current: 100 µA
• QFN10 (1.8x1.4) and SC70-6

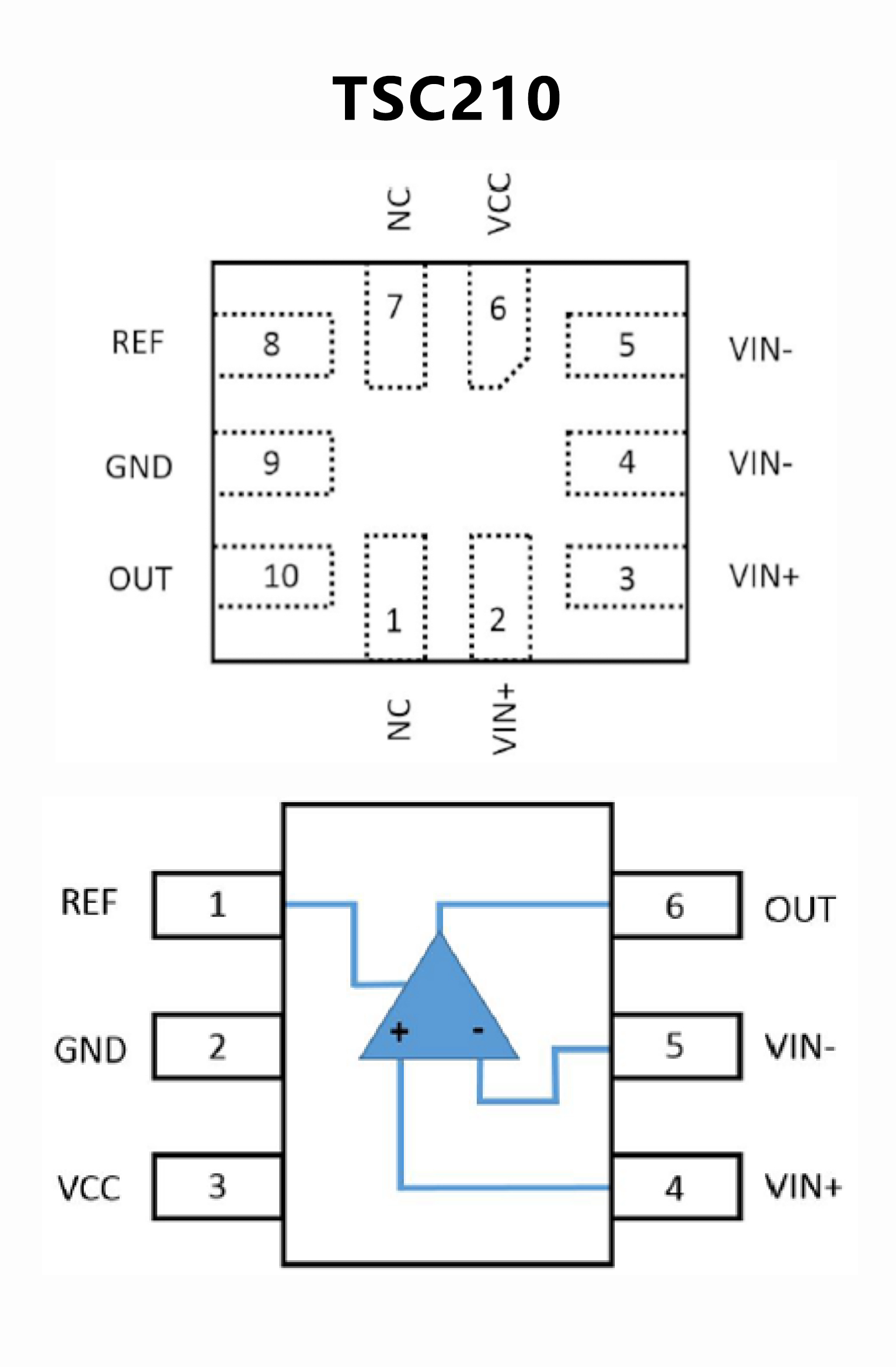

PIN CONFIGUTION
