26V, Zero-Drift, High-Precision Current Monitors, ZXCT214 Replace MCP6C02.
ZXCT214
ZXCT214.pdf
ZXCT214.pdfFEATURES
• Supply Voltage Range: 2.7V to 26V
• Temperature Range: -40°C to +125°C
• Wide Common-Mode Range: -0.3V to 26V
• Support Shunt Drops of 10mV Full-Scale
• Gain Error (Maximum Overtemperature)
• A and B Version: ±0.8%
• C Version: ±0.5%
• Low Offset Voltage: ±30μV (max)
• Quiescent Current: 100μA (max)
• Low Gain Error Drift: 10ppm/°C (max)
• Rail-to-Rail Output Capacity
• Choice of Gains:
– ZXCT210: 200V/V
– ZXCT211: 500V/V
– ZXCT212: 1000V/V
– ZXCT213: 50V/V
– ZXCT214: 100V/V
– ZXCT215: 75V/V
• Package: 6-pin SOT363 and 10-pin U-QFN1418-10
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• An automotive-compliant part is available under separate
datasheet (ZXCT21xQ)

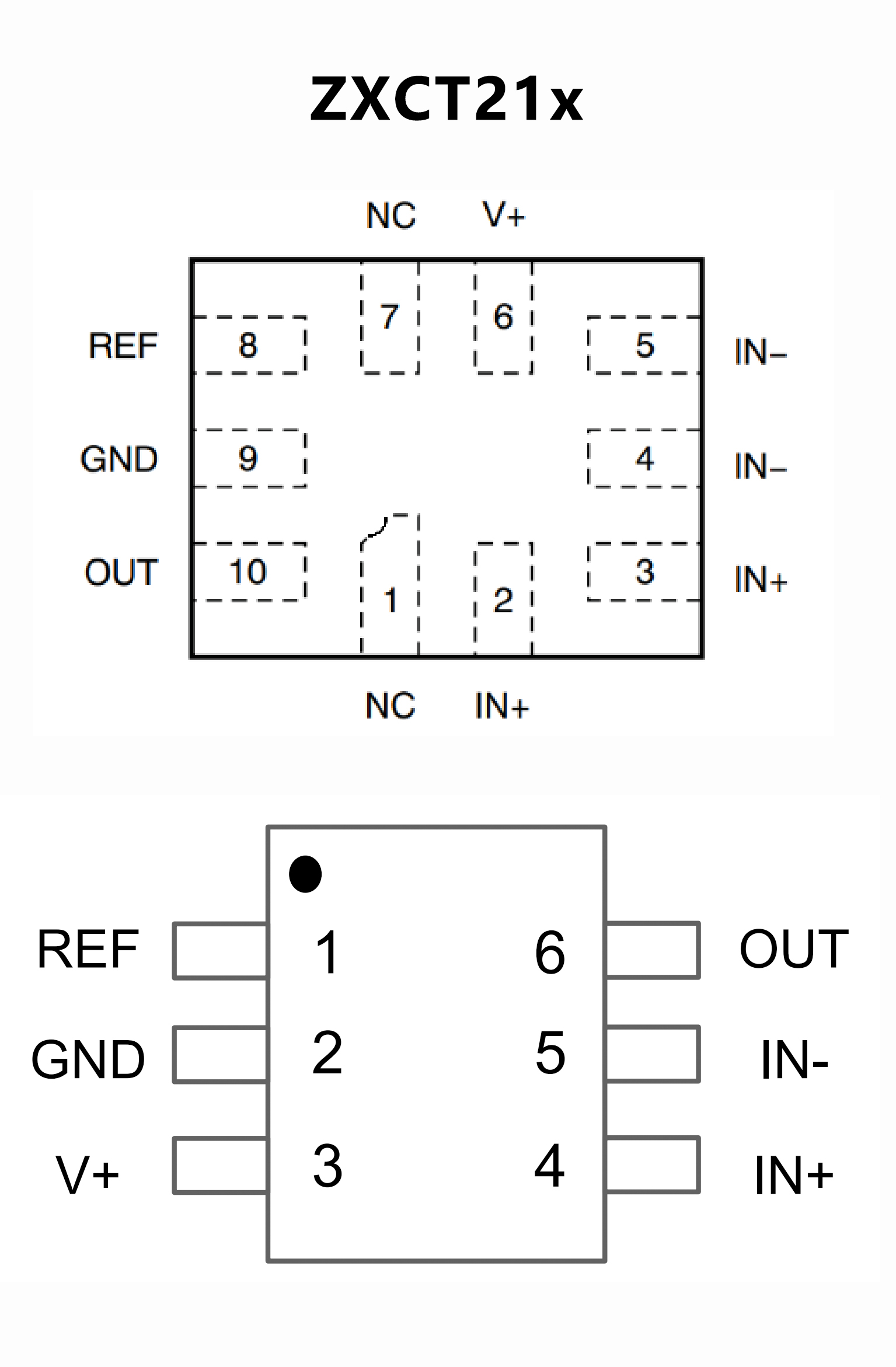

PIN CONFIGUTION
优势替代
FEATURES
• Single Amplifier: MCP6C02
• Bidirectional or Unidirectional
• Input (Common-mode) Voltages:
- +3.0V to +65V, specified
- +2.8V to +68V, operating
- -0.3V to +70V, survival
• Power Supply:
- 2.0V to 5.5V
- Single or Dual (Split) Supplies
• High DC Precision:
- VOS: ±1.65 μV (typical)
- CMRR: 154 dB (typical)
- PSRR: 138 dB (typical)
- Gain Error: ±0.1% (typical)
• Preset Gains: 20, 50 and 100 V/V
• POR Protection:
- HV POR for VIP – VSS
- LV POR for VDD – VSS
• Bandwidth: 500 kHz (typical)
• Supply Currents:
- IDD: 490 μA (typical)
- IBP: 170 μA (typical)
• Enhanced EMI Protection:
- EMIRR: 118 dB at 2.4 GHz (typical)
• Specified Temperature Ranges:
- -40°C to +125°C (E-Temp part)
- -40°C to +150°C (H-Temp part)

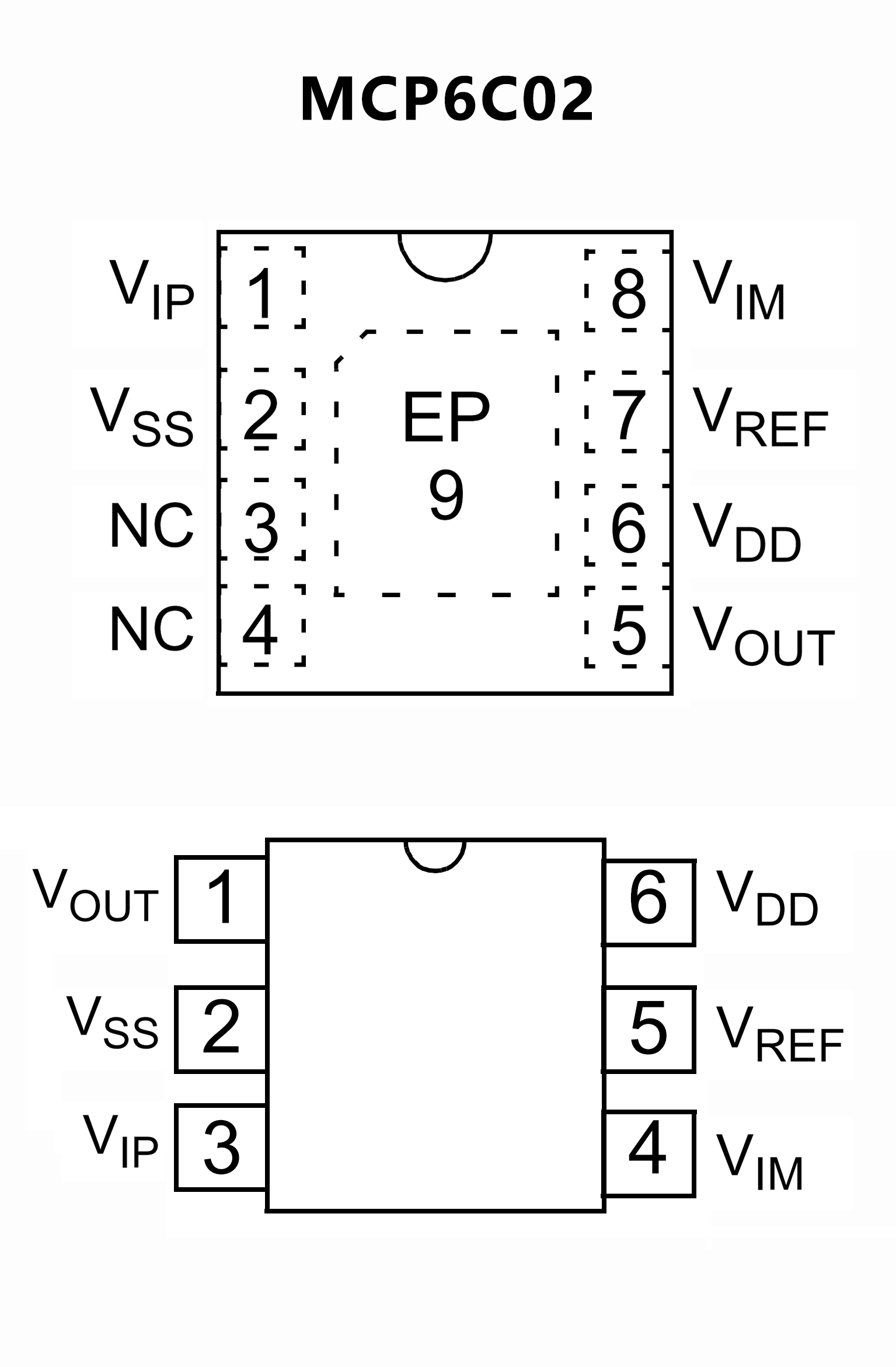

PIN CONFIGUTION
