26V, Zero-Drift, High-Precision Current Monitors, ZXCT214 Replace NCS214.
ZXCT214
ZXCT214.pdf
ZXCT214.pdfFEATURES
• Supply Voltage Range: 2.7V to 26V
• Temperature Range: -40°C to +125°C
• Wide Common-Mode Range: -0.3V to 26V
• Support Shunt Drops of 10mV Full-Scale
• Gain Error (Maximum Overtemperature)
• A and B Version: ±0.8%
• C Version: ±0.5%
• Low Offset Voltage: ±30μV (max)
• Quiescent Current: 100μA (max)
• Low Gain Error Drift: 10ppm/°C (max)
• Rail-to-Rail Output Capacity
• Choice of Gains:
– ZXCT210: 200V/V
– ZXCT211: 500V/V
– ZXCT212: 1000V/V
– ZXCT213: 50V/V
– ZXCT214: 100V/V
– ZXCT215: 75V/V
• Package: 6-pin SOT363 and 10-pin U-QFN1418-10
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• An automotive-compliant part is available under separate
datasheet (ZXCT21xQ)

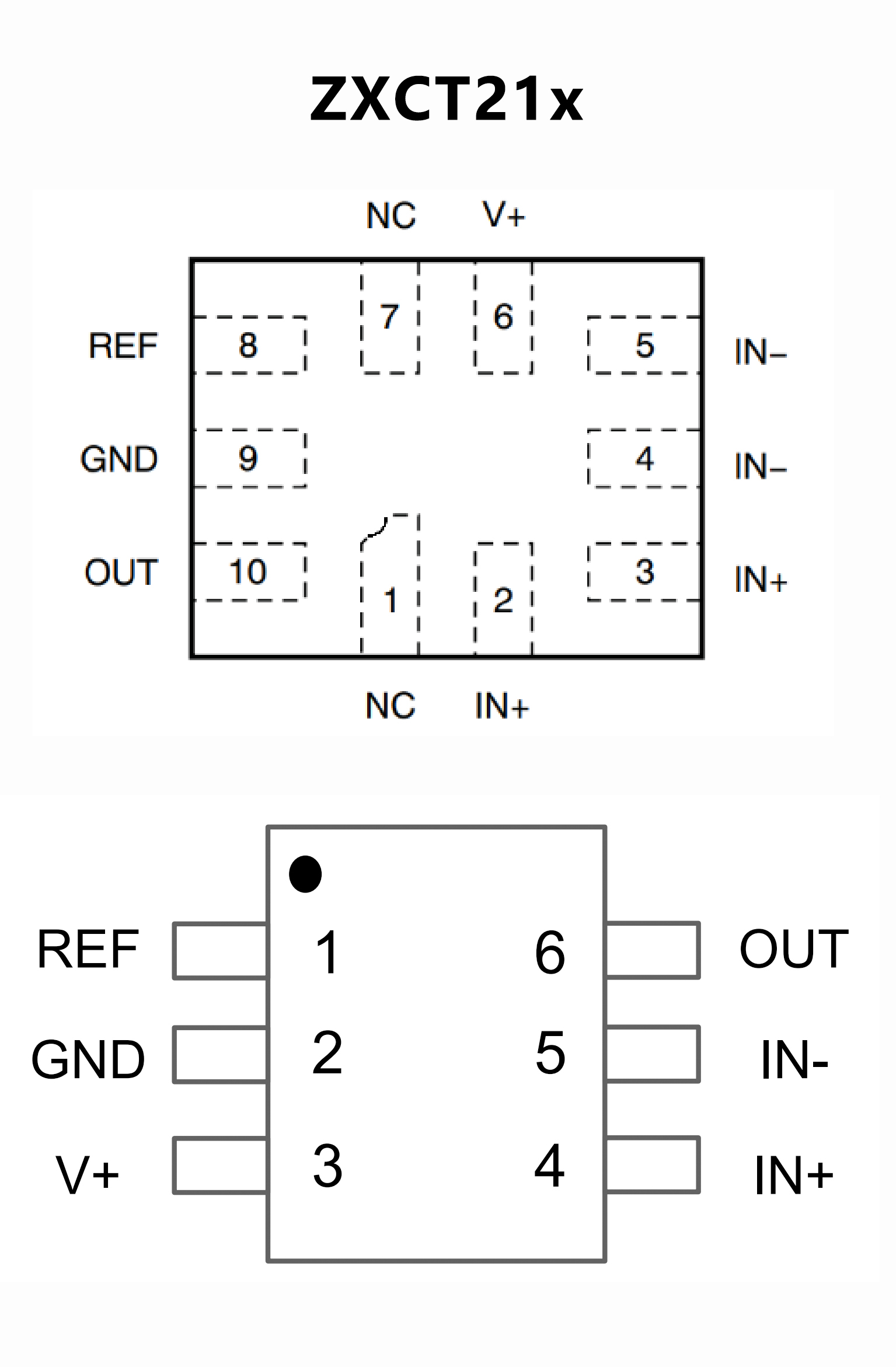

PIN CONFIGUTION
优势替代
FEATURES
• Wide Common Mode Input Range: −0.3 V to 26 V
• Supply Voltage Range: 2.2 V to 26 V
• Low Offset Voltage: ±35 V max
• Low Offset Drift: ±0.5 V/°C
• Low Gain Error: ±1% max
• Low Gain Error Drift: ±10 ppm/°C max
• Rail−to−Rail Output Capability
• Low Current Consumption: 40 A typ, 80 A max
• NCV Prefix for Automotive and Other Applications
Requiring Unique Site Qualified and PPAP Capable

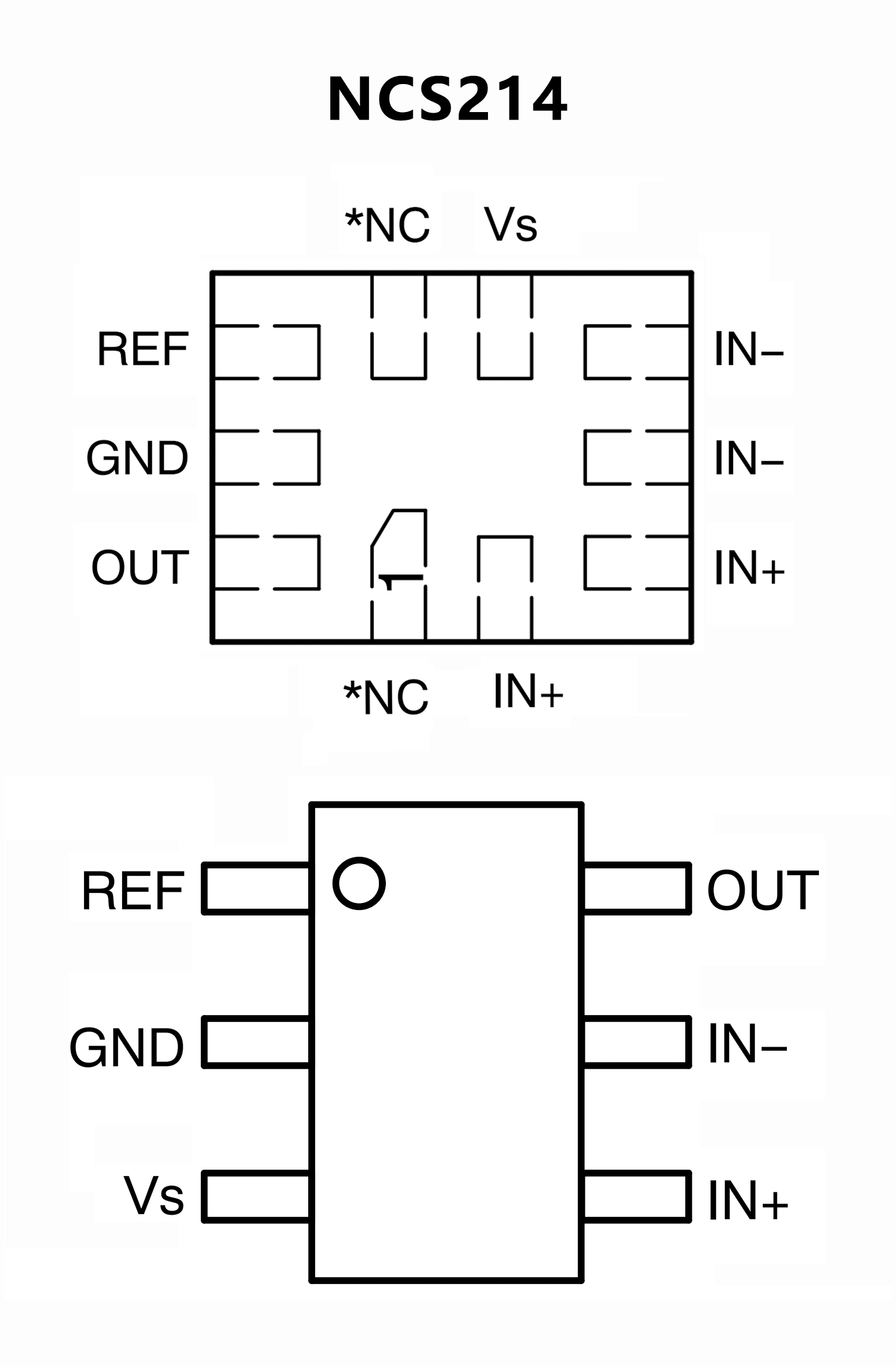

PIN CONFIGUTION
