Surface Mount Fast Switching Diode
BAV70T-7-F
BAV70T-7-F.pdf
BAV70T-7-F.pdf
No.11108
FEATURES
• Ultra-Small Surface Mount Package
• Fast Switching Speed
• For General Purpose Switching Applications
• High Conductance
DESCRIPTION
• Case: SOT-523
• Case Material: Molded Plastic, “Green” Molding Compound;
UL Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020

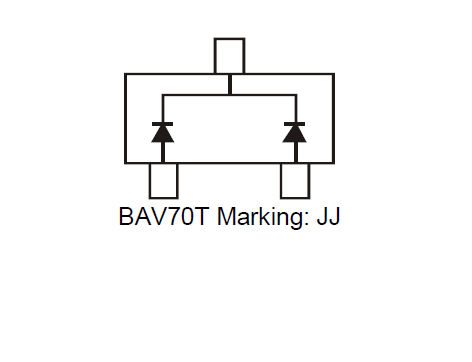

APPLICATION CIRCUIT

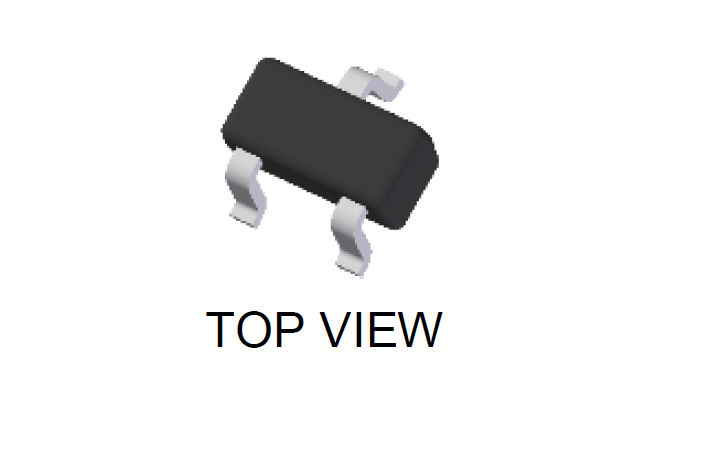

PIN CONFIGUTION
