Surface Mount Surface Mount Rectifiers
FB3100D
FB3100D.pdf
FB3100D.pdf
No.11091
FEATURES
• Very low profile package
• High efficiency
• Extremely fast switching
• Negligible switching losses
• Low forward voltage drop, low power loss
• Qualified to AEC-Q101 Rev_C
DESCRIPTION

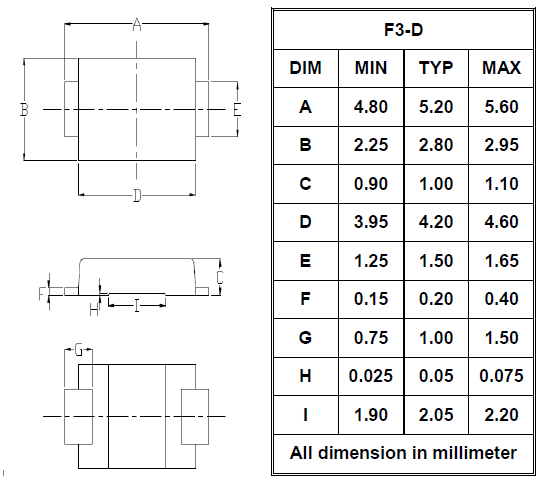

• Case: JEDEC DO-221AC
• Case Material: “Green” molding compound, UL Flammability
classification 94V-0,(No Br. SB. Cl.) “Halogen-free”.
• Moisture Sensitivity: Level 1 per J-STD-020
• Lead free finish, RoHS compliant
• Weight:0.0354 grams (Approximate)
• Marking code: B3100
APPLICATION CIRCUIT
PIN CONFIGUTION
