• Low Quiescent Current: 8uA at 5V

• High PSRR: 60dB range to 10KHz

• Low Output Noise: 44uVRMS

• Low Dropout: 270mV at 150mA load

• Low Temperature Coefficient: ±100ppm/°C

• Excellent Line Regulation: 0.05%/V

• Highly Accurate: ±2%

LC1207 series are a group of positive voltage output, high precise, and high PSRR and low power consumption voltage regulator. Voltages are selectable in 100mV steps within a range of 2.5V to 5.5V. It also can be customized on command.

LC1207 series have excellent load and line transient response and good temperature characteristics, which can assure the stability of chip and power system. And it uses trimming technique to guarantee output voltage accuracy within ±2%.

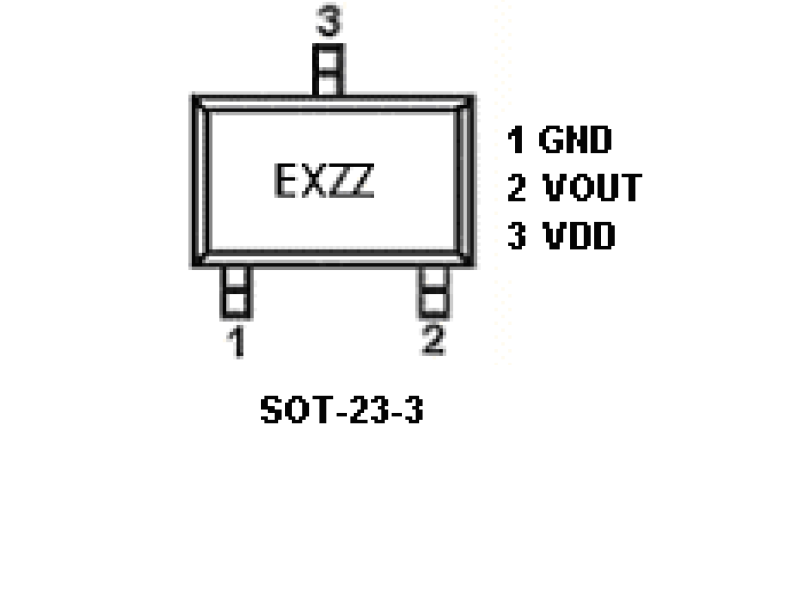

LC1207 series are available in SOT-23-3, SOT-23-5,SOT-89-3,TO-92 packages, which are lead (Pb)- free.
