60V PNP Small Signal Transistor in SOT523.
MMBT2907AT-7-F
MMBT2907AT-7-F.pdf
MMBT2907AT-7-F.pdf
No.10570
FEATURES
• BVCEO > -60V
• IC = -600mA Collector Current
• Epitaxial Planar Die Construction
• Ultra-Small Surface Mount Package
• Complementary NPN Type: MMBT2222AT
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• Qualified to AEC-Q101 Standards for High Reliability
DESCRIPTION
Mechanical Data：
• Case: SOT523
• Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminals: Finish – Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
• Weight: 0.002 grams (Approximate)
APPLICATION CIRCUIT

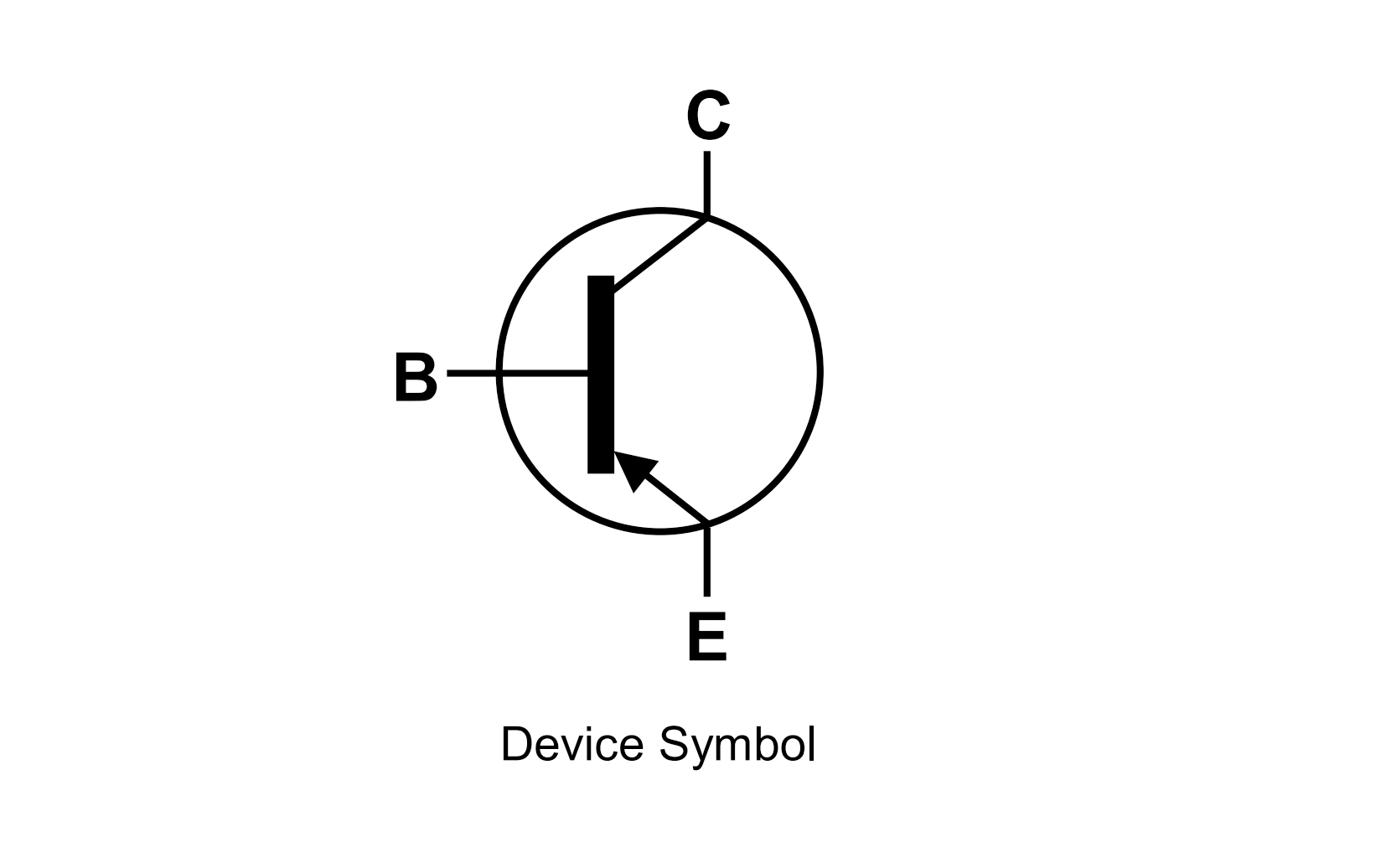

PIN CONFIGUTION
