P-Channel Logic Level Enhancement
P2504EDG
P2504EDG.pdf
P2504EDG.pdf
No.10575
FEATURES
• V(BR)DSS: -40V
• RDS(ON): 25.8mΩ
• ID: -18A
DESCRIPTION
• P-Channel Logic Level Enhancement

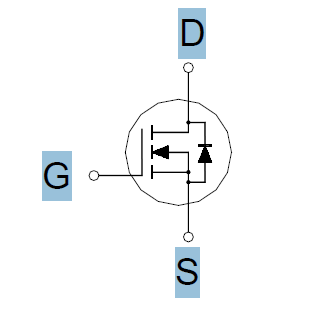

APPLICATION CIRCUIT

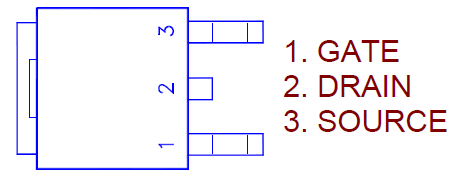

PIN CONFIGUTION
