• Supply voltage, VDD = 3.3V ±5%

• Compatible w/ DVI, HDMITM 1.1, 1.2, and 1.3 signals

• Supports both AC-coupled and DC-coupled inputs

• 1:2 Demux

• Supports Deep ColorTM Signals

• Confi gurable output swing control (500mV, 750mV, 1000mV)

• Confi gurable Pre-Emphasis levels (0dB, 1.5dB, 3.5dB, 6.0dB)

• Confi gurable De-Emphasis (0dB, -1.5dB, -3.5dB, -6.0dB)

• Confi gurable Equalization (1dB,3.5dB, 6dB, 8dB)

• Data Rate = 2.5Gbps (Max)

• Inputs w/ built-in termination

• Propagation delay < 2ns input

• Uni-Directional

• 10kV HBM ESD protection on all high speed data channels

  (Supplemental contact ESD test results are available upon

  request)

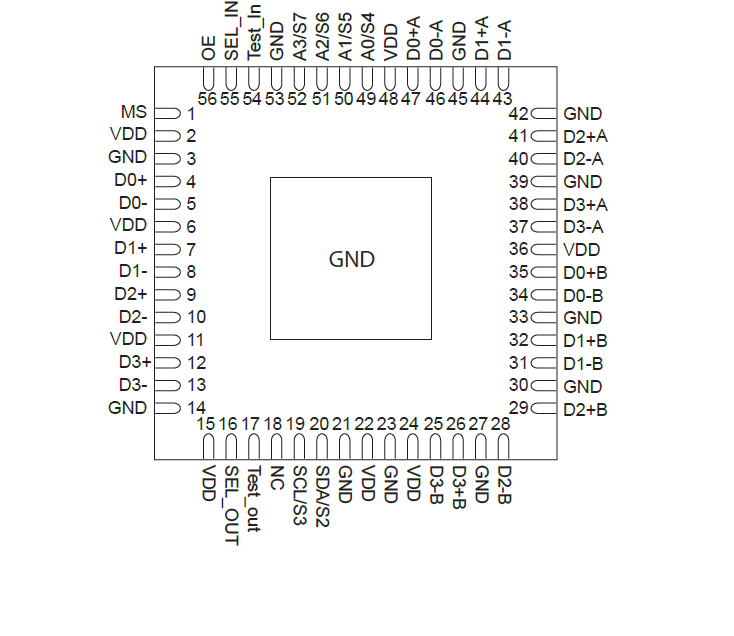

• Packaging (Pb-free & Green): 56-pad TQFN (ZB56)

Pericom Semiconductor’s PI3HDMI412AD, active-drive switch solution is targeted for high-resolution video networks that are based on DVI/HDMITM standards, and TMDS signal processing.

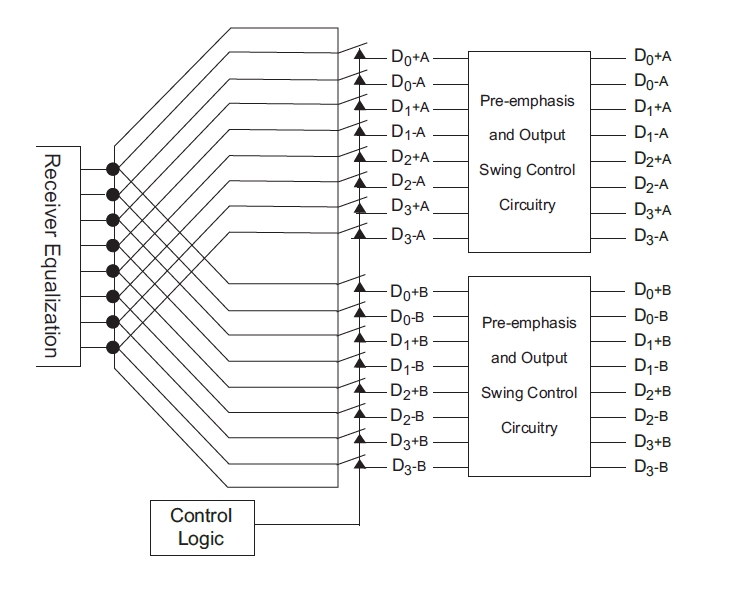

The PI3HDMI412AD is an active single TMDS channel to two TMDS channel DeMux with Hi-Z outputs. The device drives differential signals to multiple video display units. It provides three controllable output swing levels that can be controlled through pin control or I2C control, depending on the mode select pin. The swing levels are 500mV, 700mV & 1000mV. This solution also provides a unique advanced pre-emphasis technique to increase rise and fall times which are reduced during transmission across long distances.

The maximum DVI/HDMITM data rate of 1.65Gbps provides a 1920x1080 resolution required by the next Gen HDTV and PC graphics products. Due to its active uni-directional feature, this switch is de-signed for usage only for the video driver’s side. For PC graphics application, the device sits at the driver’s side to switch between multiple display units, such as PC LCD monitor, projector, TV, etc.
