• Case: SOT-23

 • Case Material: Molded Plastic, “Green” Molding Compound. UL

   Flammability Classification Rating 94V-0

 • Moisture Sensitivity: Level 1 per J-STD-020

 • Terminals: Finish ⎯ Matte Tin annealed over Alloy 42 leadframe.

    Solderable per MIL-STD-202, Method 208

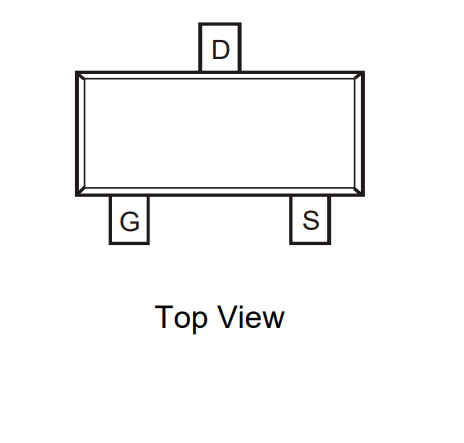

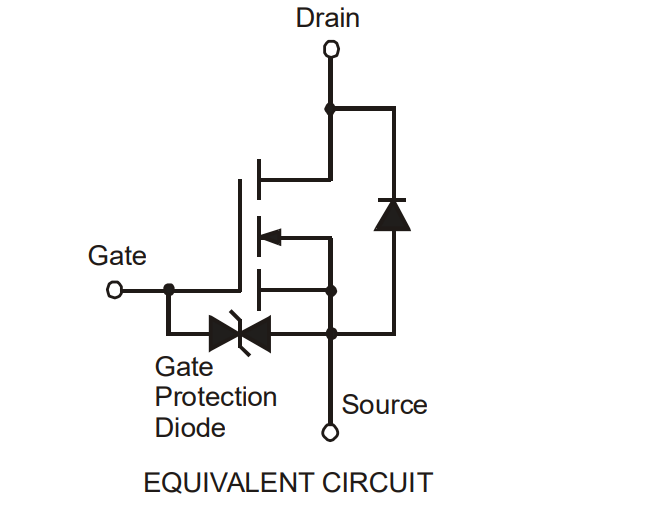

 • Terminal Connections: See Diagram

 • Weight: 0.008 grams (approximate)

• Low On-Resistance

• Low Input Capacitance

• Fast Switching Speed

• Low Input/Output Leakage
