• Wide Input Range: 4.5V-60V

• Up to 3.5A Continuous Output Current

• 0.8V ±1% Feedback Reference Voltage

• Integrated 80mΩ High-Side

• Low Quiescent Current: 175µA

• Pulse Skipping Mode (PSM) in light load

• 130ns Minimum On-time

• 4ms Internal Soft-start Time

• Adjustable Frequency 100KHz to 1.2MHz

• External Clock Synchronization

• Precision Enable Threshold for Programmable

  Input Voltage Under-Voltage Lock

  Out Protection (UVLO) Threshold and Hysteresis

• Low Dropout Mode Operation

• Derivable Inverting Voltage Regulator

• Over-voltage and Over-Temperature Protection

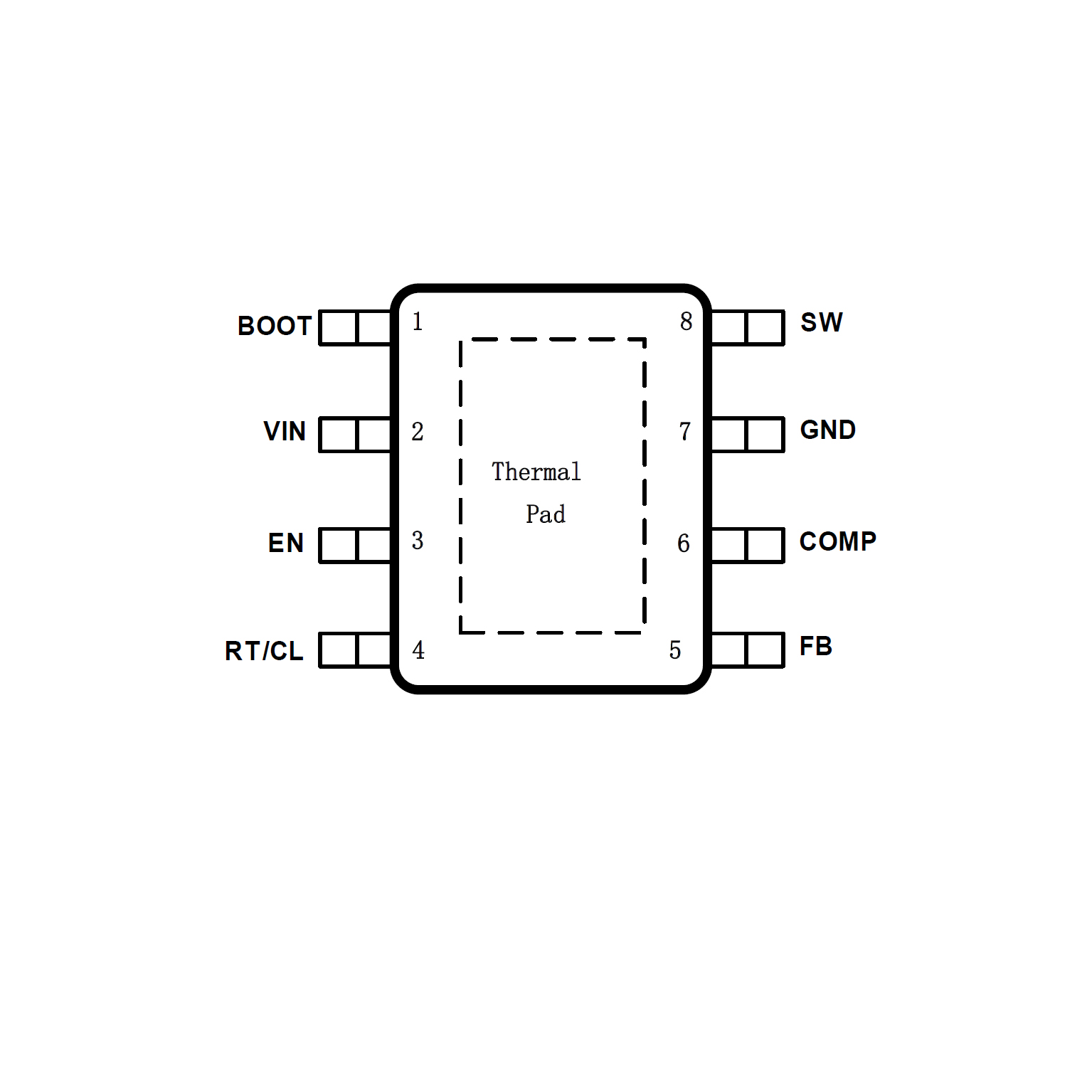

• Available in an ESOP-8 Package

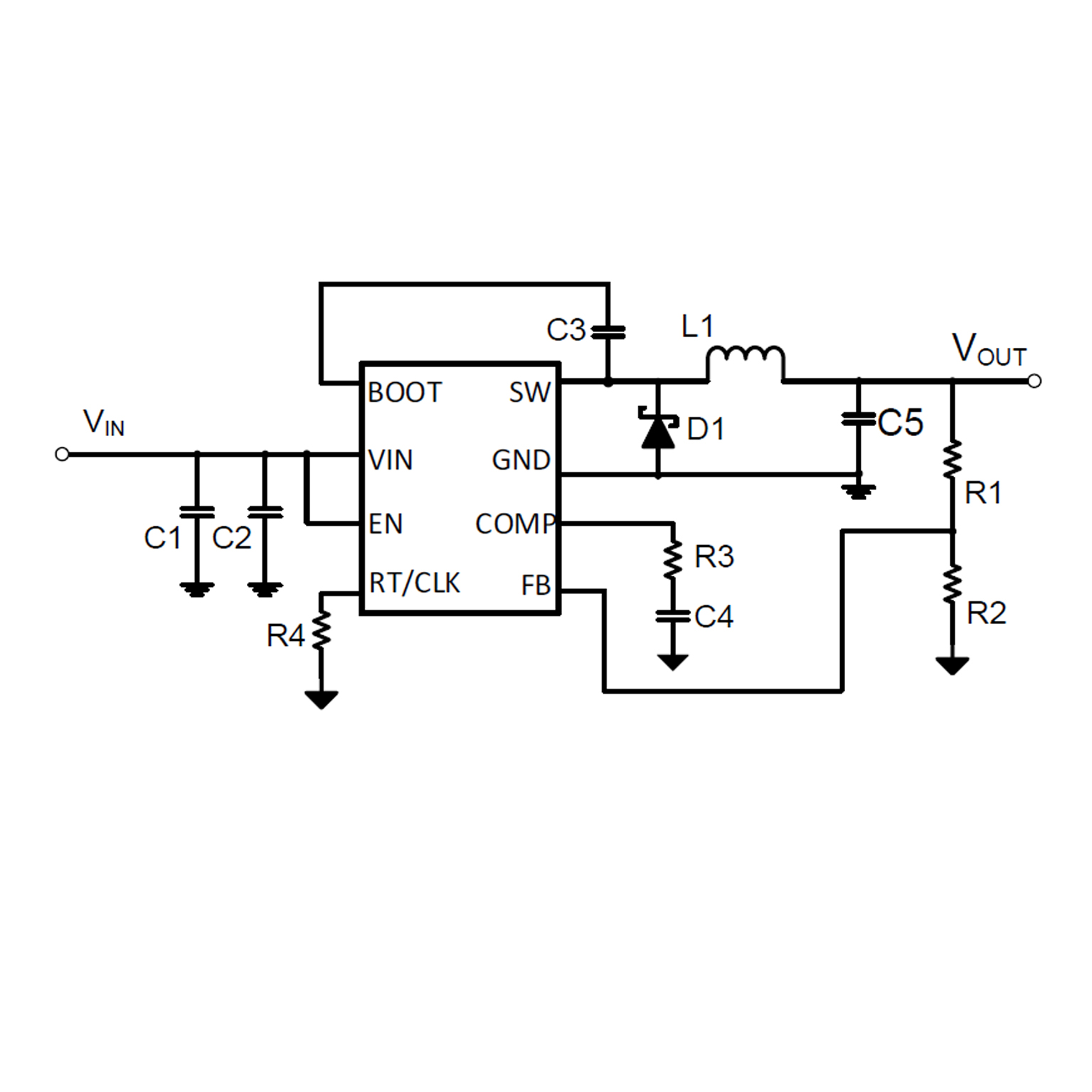

The SCT2630A is 3.5A buck converters with wide input voltage, ranging from 4.5V to 60V, which integrates an 80mΩ high-side MOSFET. The SCT2630A, adopting the peak current mode control, supports the Pulse Skipping Modulation (PSM) which assists the converter on achieving high efficiency at light load or standby condition.

The SCT2630A features programmable switching frequency from 100kHz to 1.2MHz with an external resistor, which provides the flexibility to optimize either efficiency or external component size. The converter supports external clock synchronization with a frequency band from 100kHz to 1.2MHz. The SCT2630A allows power conversion from high input voltage to low output voltage with a minimum 130ns on-time of high-side MOSFET.

The device offers fixed 4ms soft start to prevent inrush current during the startup of output voltage ramping. The SCT2630A features external loop compensation to provide the flexibility to optimize either loop stability or loop response. The SCT2630A provides cycle-by-cycle current limit, thermal shutdown protection, output over-voltage protection and input voltage under-voltage protection. The device is available in an 8-pin ESOP-8 package.
