• Up to 95% Efficiency

• Wide input voltage: 6.5V ~ 30V

• Continuous 3A Current Load Capability

• Integrated 40V Power MOSFET Switches

• Fixed 300KHz Switching Frequency

• 0.9V Voltage Reference with ±2% Accuracy

• Maximum 10μA Shutdown Current

• Light Load Sleep Operation

• Programmable Soft-Start Limits

• Input Under-Voltage Lockout

• Input Over-Voltage protection

• Output Over Voltage Protection

• Output Short Protection

• Over Temperature Protection

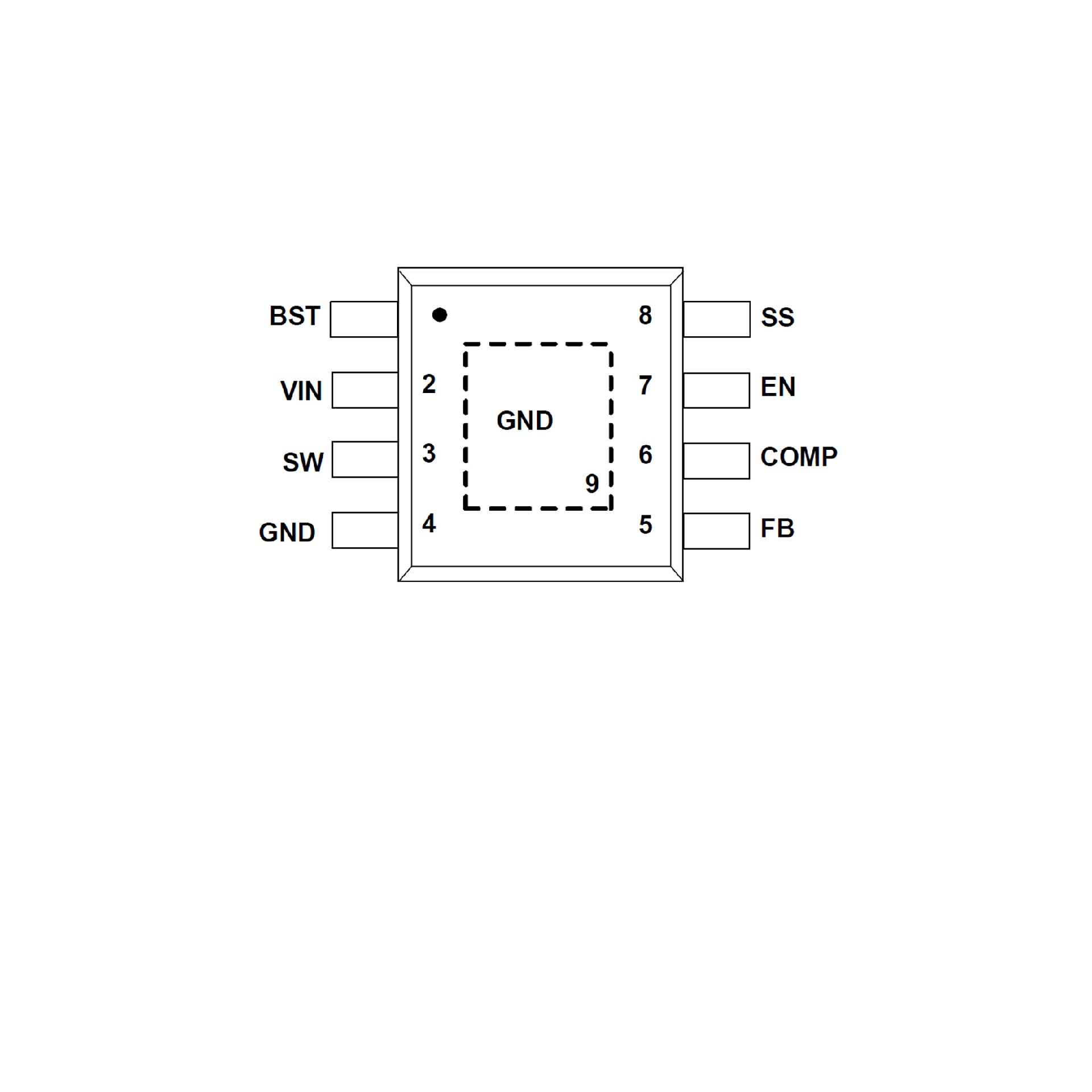

• General SOP8-EP package

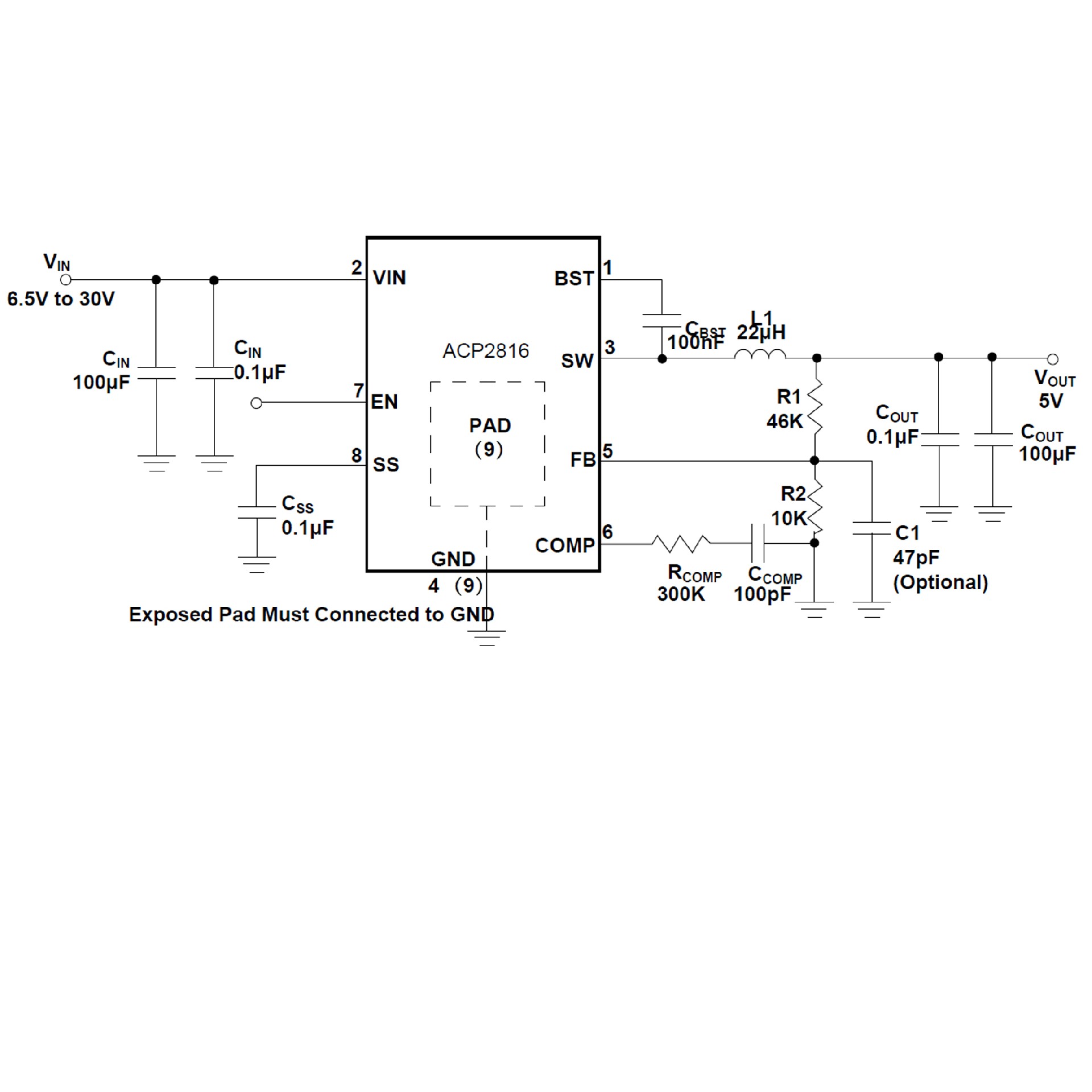

The ACP2816 are monolithic buck DC/DC converter which can provide 3A continuous load current over 6.5V to 30V wide input voltage range. The devices are set with 33V input over-voltage protection and 6.5V under-voltage Lockout protection. They have peak current mode control provides fast transient responses and cycle-by-cycle current limiting. Other features include programmable soft-start and over temperature protection. The device is available in general SOP8-EP package.
