Surface Mounted Low Leakage Diode.
BAV170T
BAV170T.pdf
BAV170T.pdf
No.13524
FEATURES
• Ultra-Small Surface Mount Package
• Very Low Leakage Current
DESCRIPTION
Mechanical Data:
• Case: SOT-523
• Case Material: Molded Plastic, “Green”Molding Compound.
UL Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020D
• Terminals: Solderable per MIL-STD-202, Method 208
• Lead Free Plating (Matte Tin Finish annealed over Alloy 42
leadframe).
• Polarity: See Diagrams Below

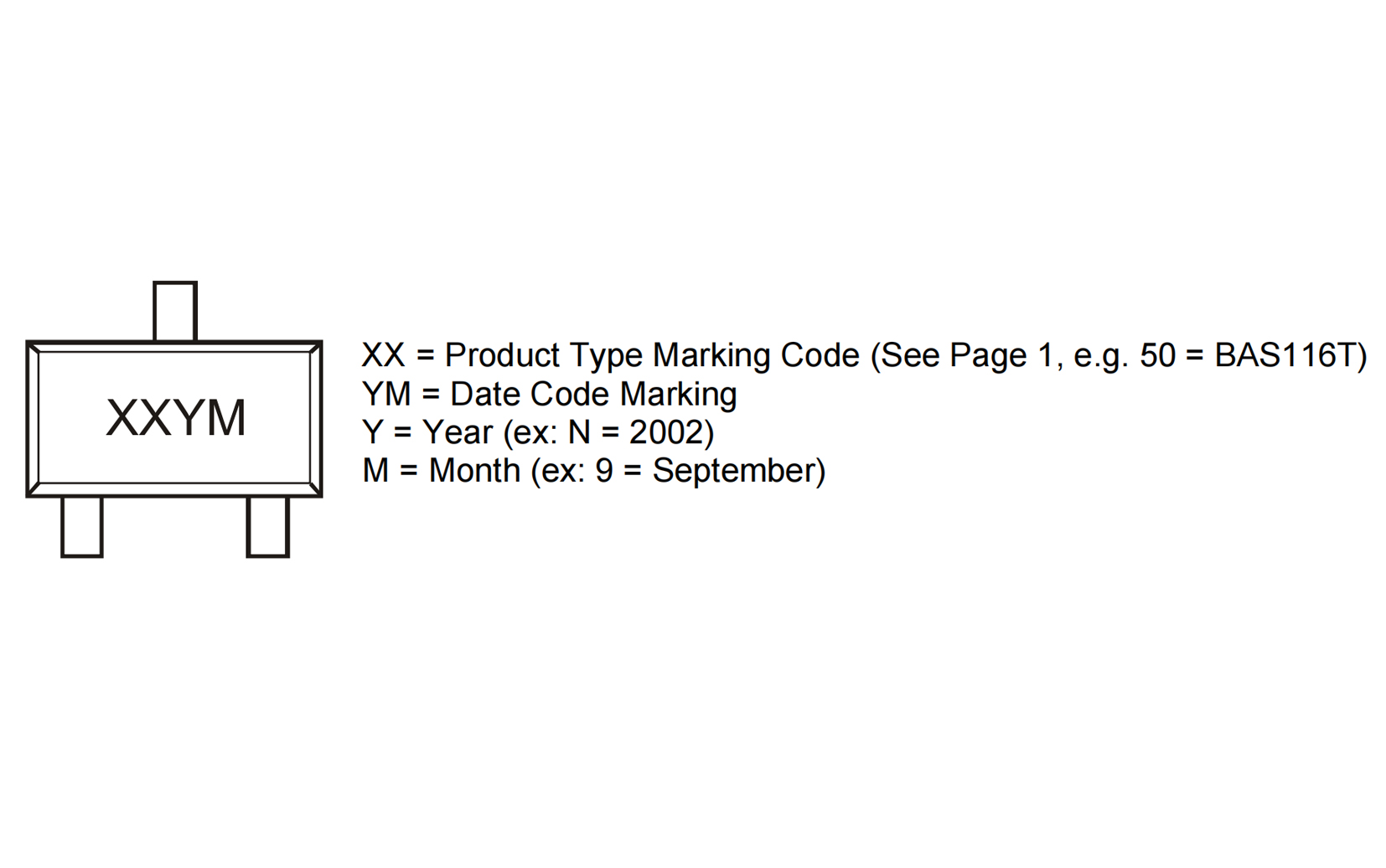

• Marking Information: See Diagrams Below and Page 3
• Ordering Information: See Page 2
• Weight: 0.002 grams (approximate)

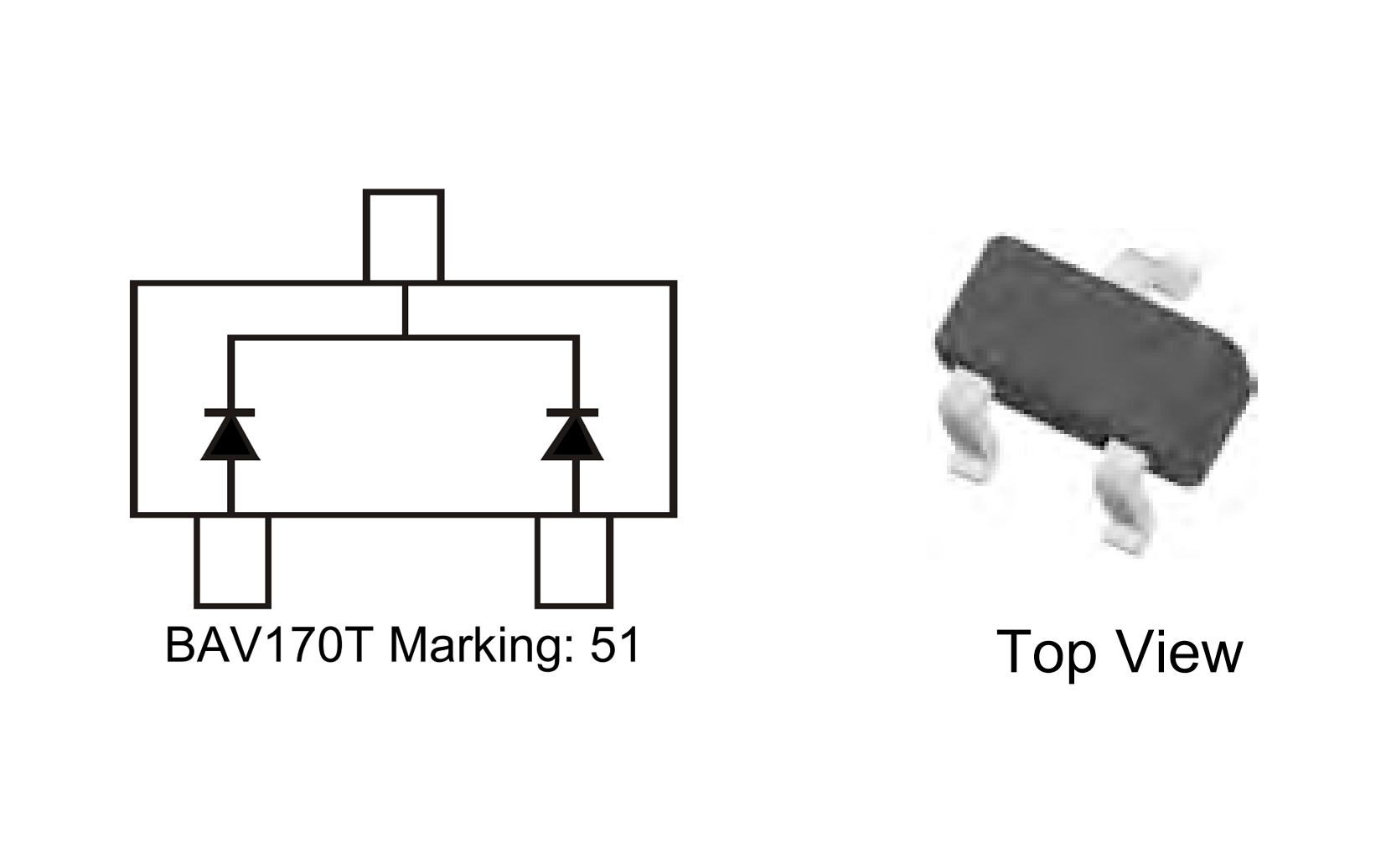

APPLICATION CIRCUIT
PIN CONFIGUTION
