Surface mounted Schottky barrier diode.
BAS40-04T
BAS40-04T.pdf
No.13525
FEATURES
• Low Forward Voltage Drop
• Fast Switching
• Ultra-Small Surface Mount Package
• PN Junction Guard Ring for Transient and ESD Protection
DESCRIPTION
Mechanical Data
• Package: SOT523
• Package Material: Molded Plastic. UL Flammability
Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminals: Finish – Matte Tin Plated Leads, Solderable
per MIL-STD-202, Method 208
• Polarity: See Diagrams Below
• Weight: 0.002 grams (Approximate)

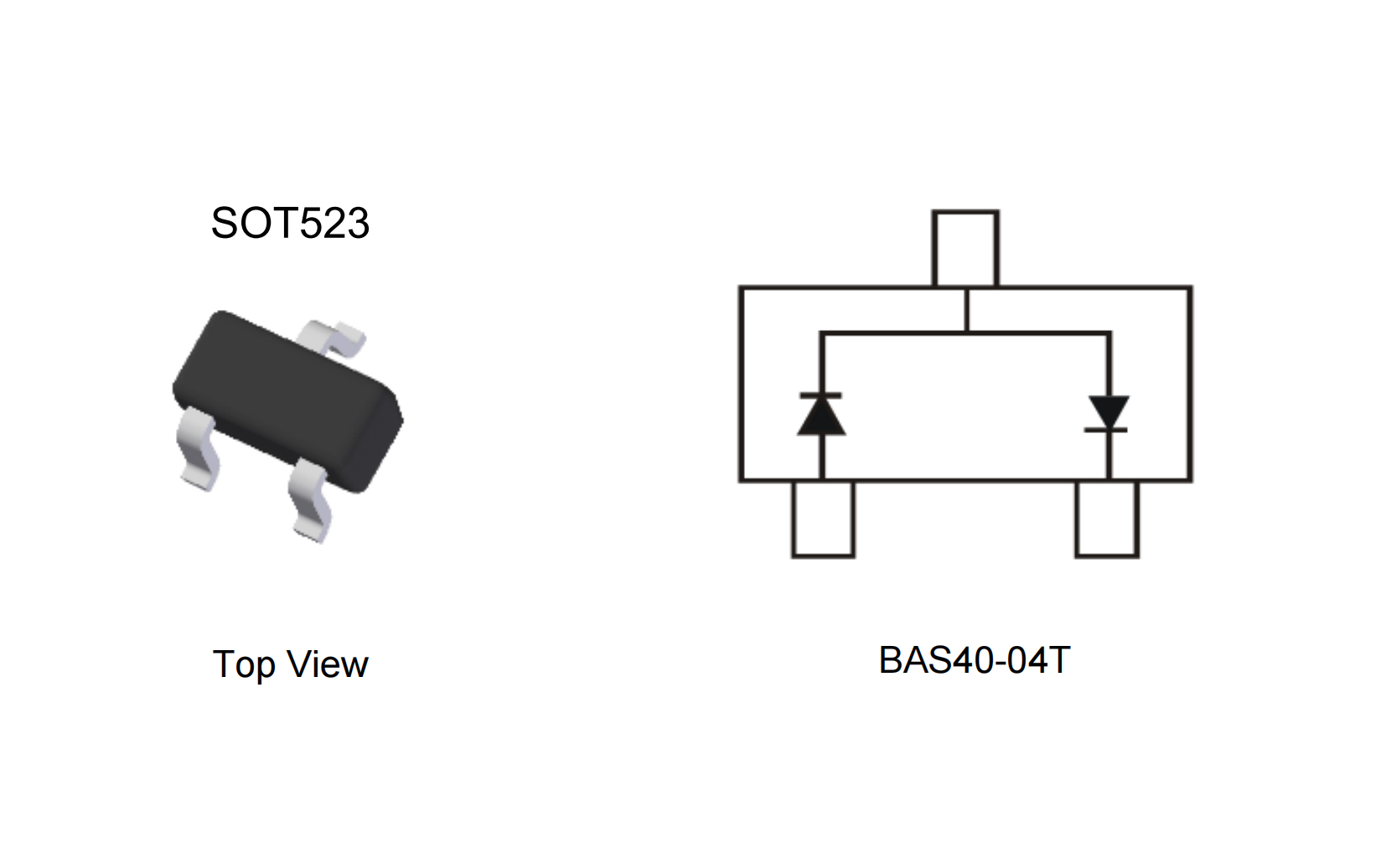

APPLICATION CIRCUIT

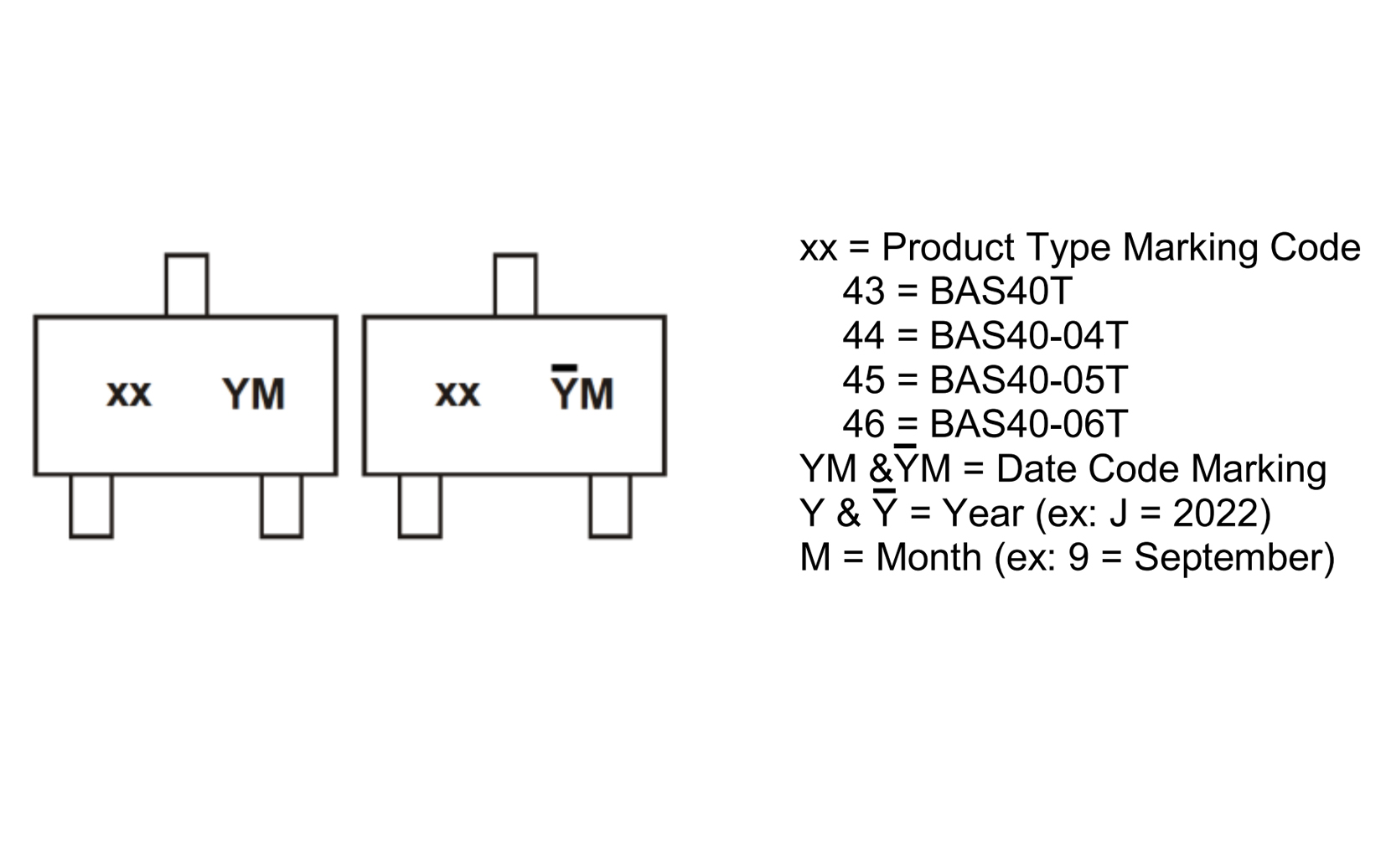

PIN CONFIGUTION
