NPN Pre-Biased Transistor in SOT523.
DDTC144EE
DDTC144EE.pdf
DDTC144EE.pdf
No.13526
FEATURES
• Epitaxial Planar Die Construction
• Complementary PNP Types Available (DDTA)
• Built-In Biasing Resistors, R1 = R2
DESCRIPTION
Mechanical Data:
• Case: SOT523
• Case Material: Molded Plastic, “Green” Molding Compound
UL Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminals: Finish – Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
• Weight: 0.002 grams (Approximate)

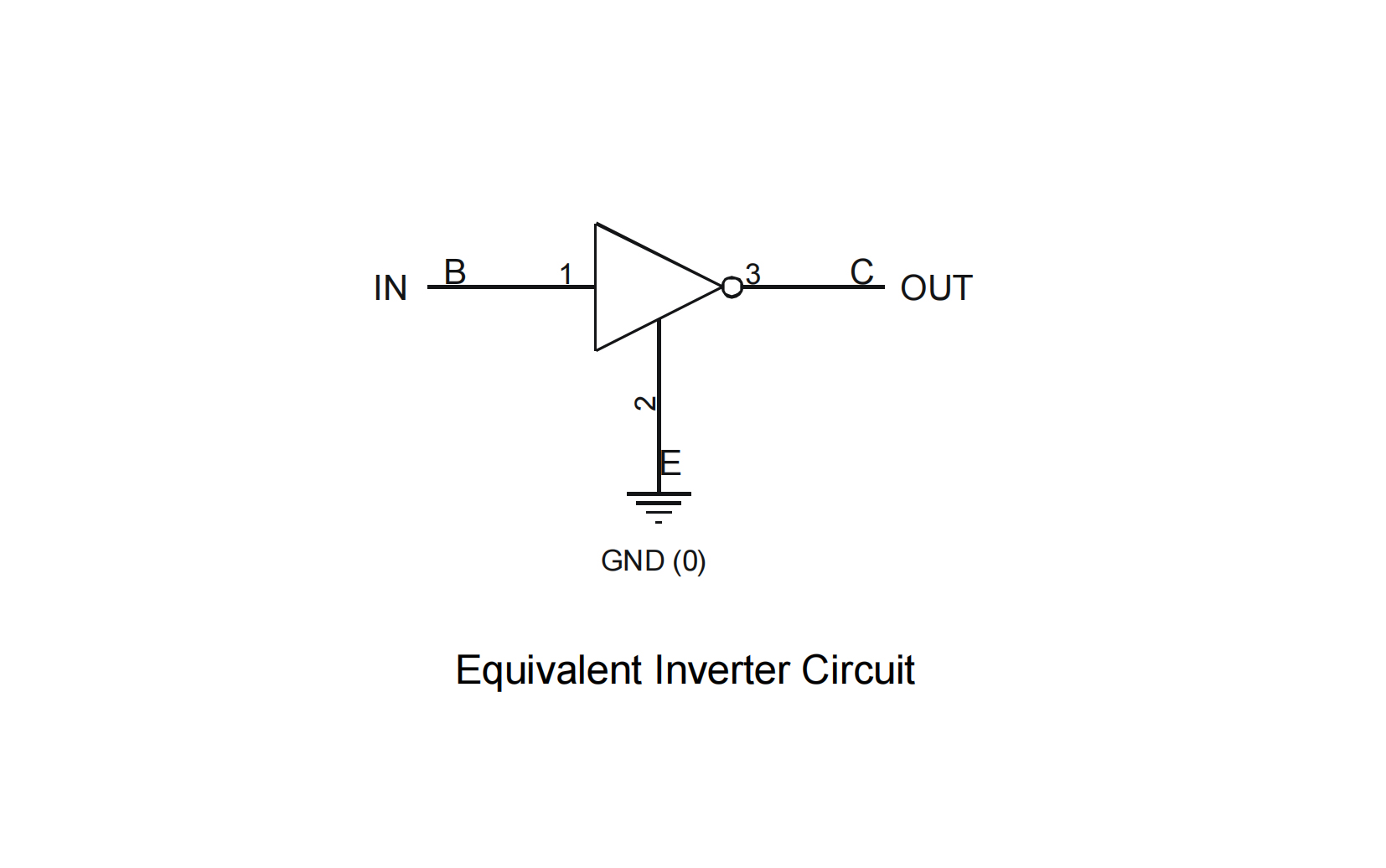

APPLICATION CIRCUIT

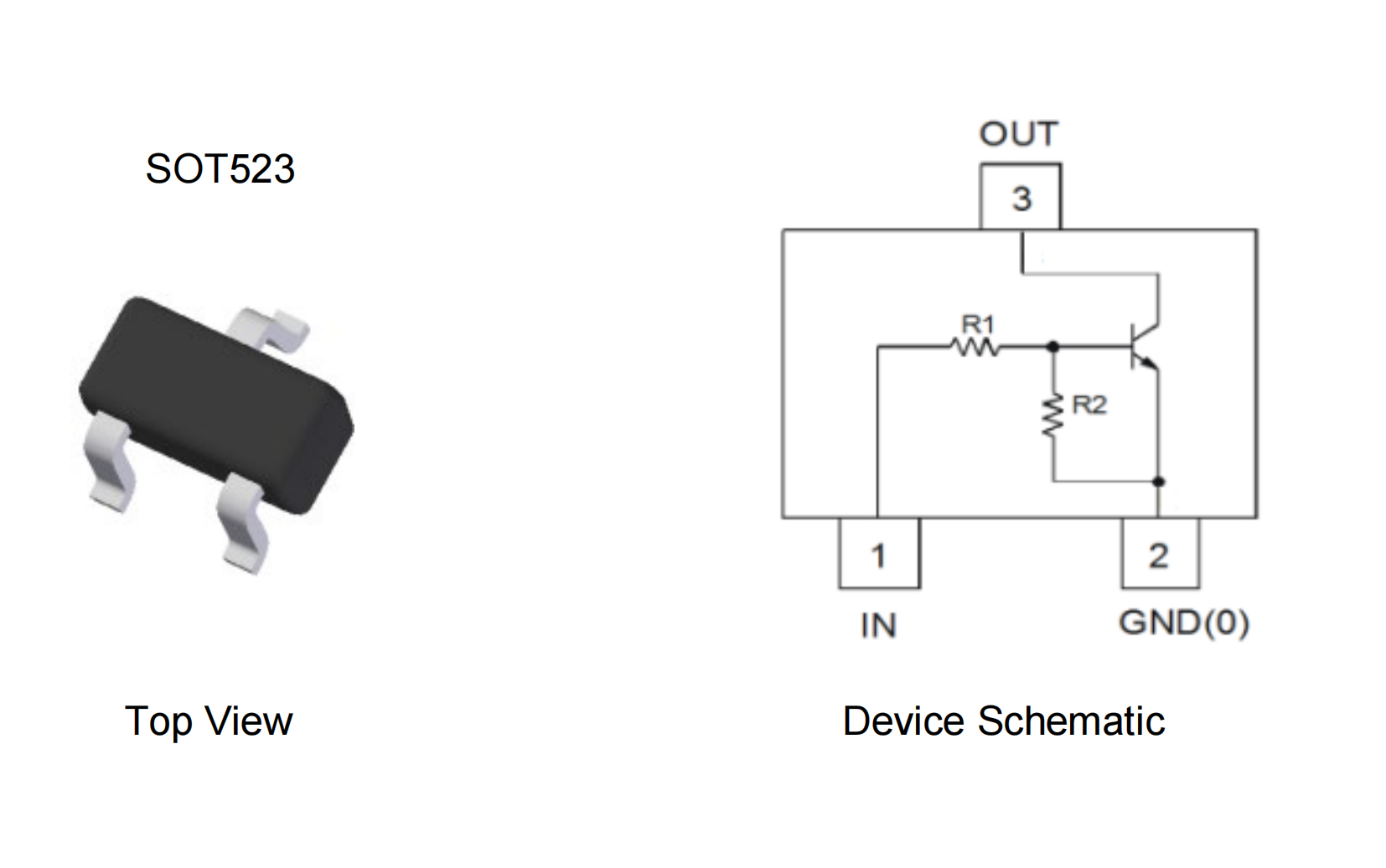

PIN CONFIGUTION
