400W Surface Mount Transient Voltage Suppressor.
SMAJ8.5CA-13-F
SMAJ8.5CA-13-F.pdf
SMAJ8.5CA-13-F.pdf
No.13532
FEATURES
• 400W Peak Pulse Power Dissipation
• Glass Passivated Die Construction
• Unidirectional and Bidirectional Versions Available
• Excellent Clamping Capability
• Fast Response Time
DESCRIPTION
Mechanical Data:

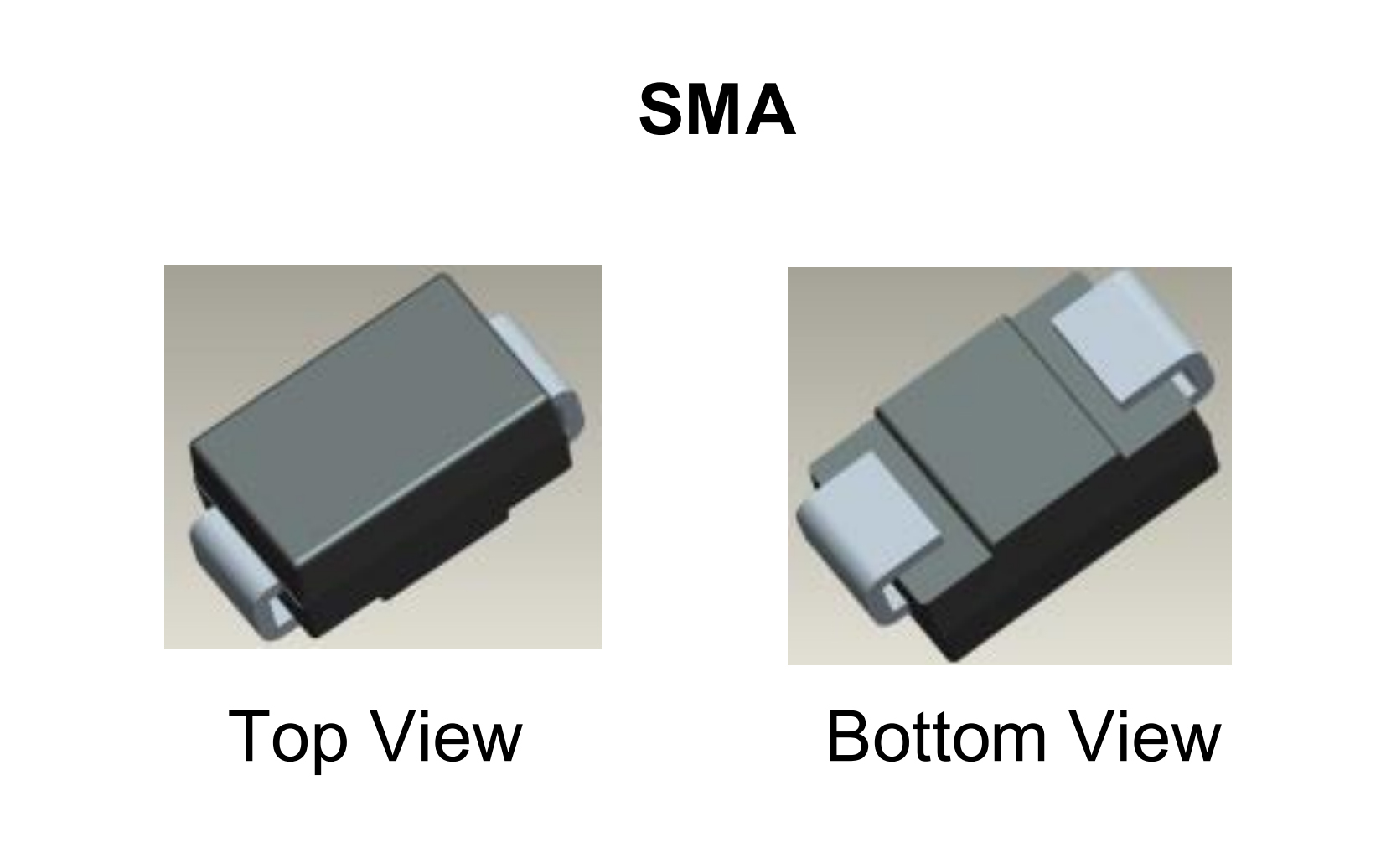

• Case: SMA
• Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminals: Lead-Free Plating (Matte Tin Finish).
Solderable per MIL-STD-202, Method 208

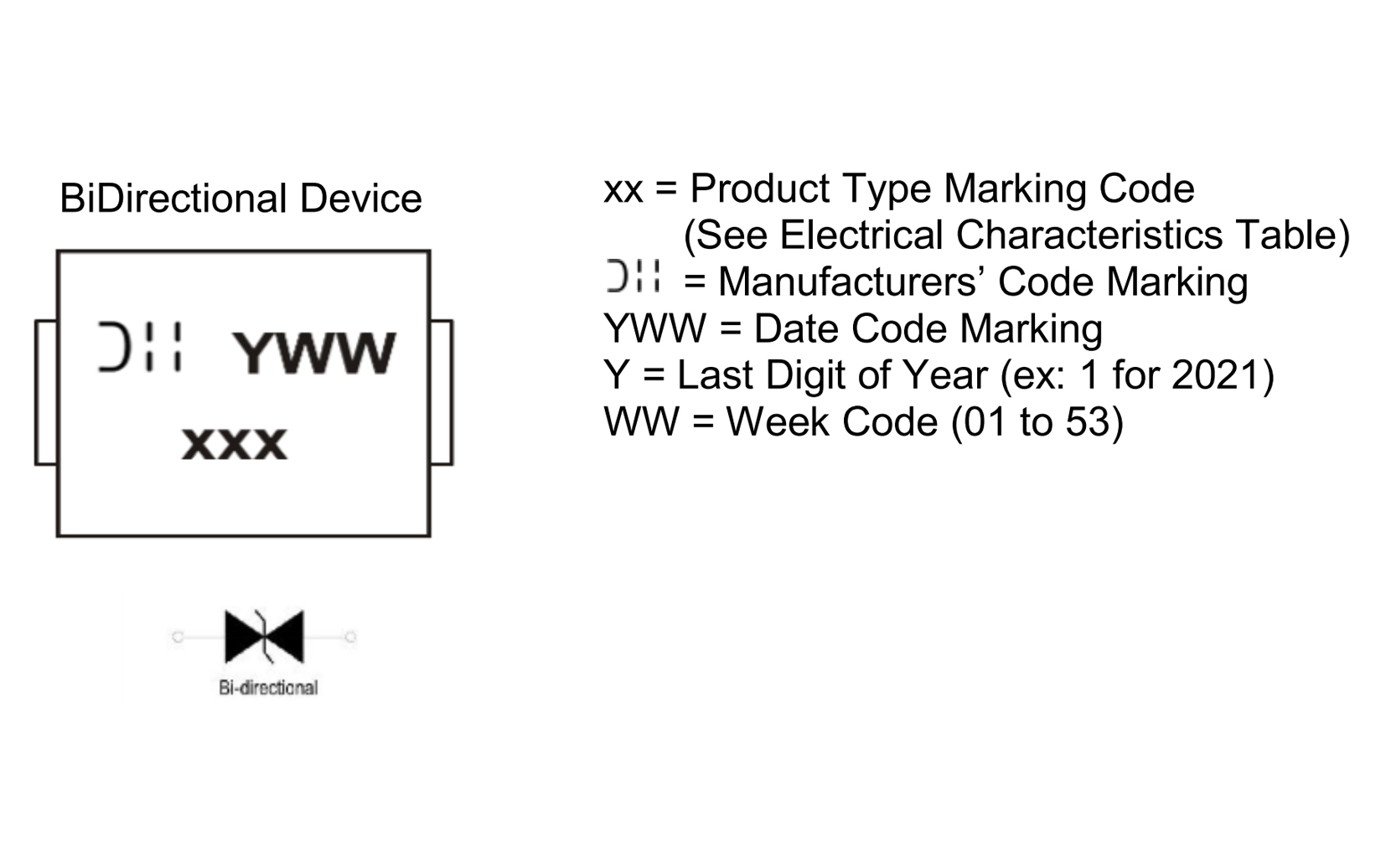

• Polarity Indicator: Cathode Band (Bidirectional Devices do not
Have a Polarity Indicator)
• Weight: 0.064 grams (Approximate)
APPLICATION CIRCUIT
PIN CONFIGUTION
