3.0A Surface Mount Schottky Barrier Rectifier.
B360B-13-F
B360B-13-F.pdf
B360B-13-F.pdf
No.13537
FEATURES
• Guard Ring Die Construction for Transient Protection
• Ideally Suited for Automated Assembly
• Low Power Loss, High Efficiency
• Surge Overload Rating to 125A Peak
• For Use in Low Voltage, High Frequency Inverters, Free
Wheeling, and Polarity Protection Applications
DESCRIPTION
Mechanical Data:

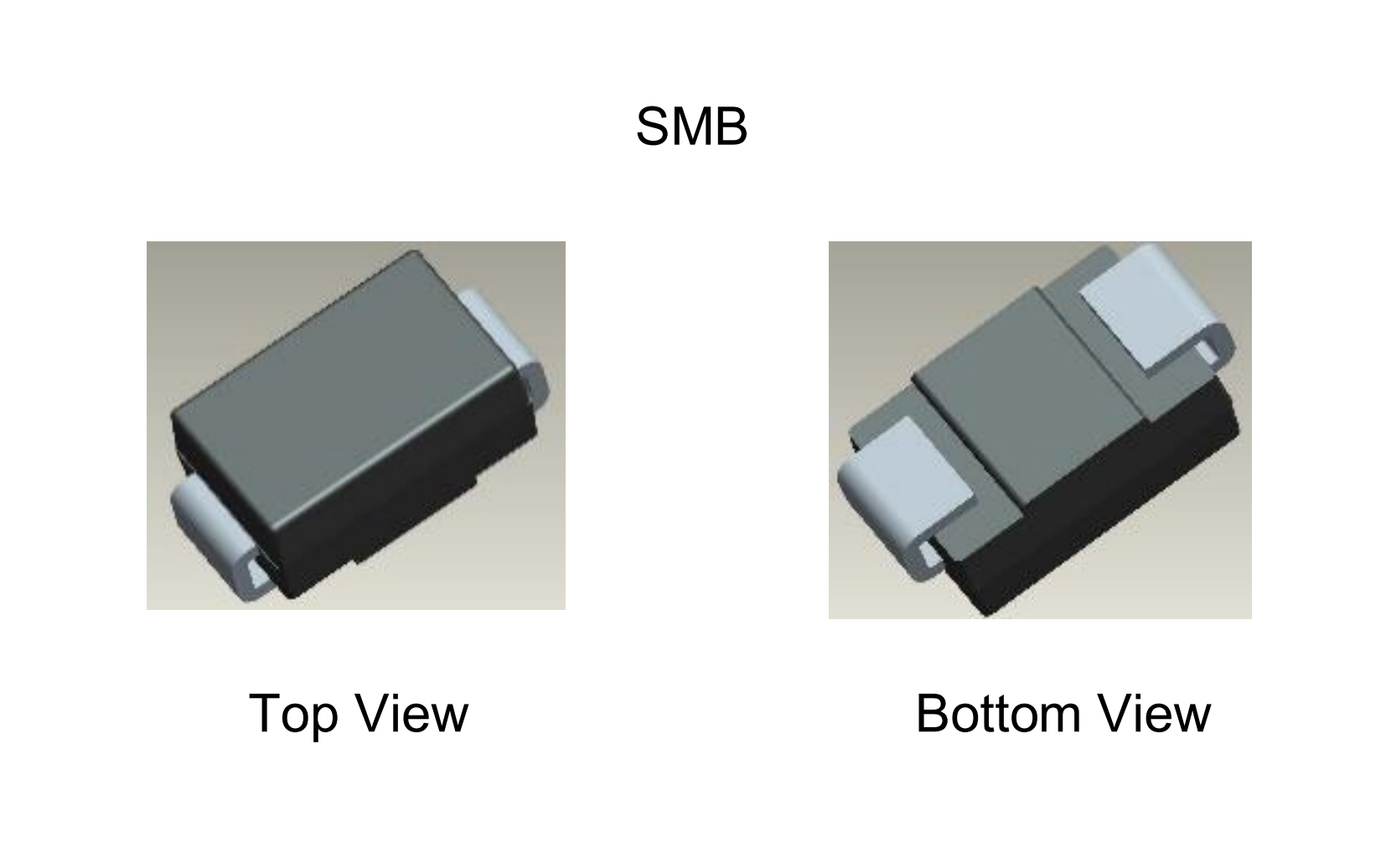

• Package: SMB
• Package Material: Molded Plastic. "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminals: Lead Free Plating (Matte Tin Finish). Solderable per
MIL-STD-202, Method 208
• Polarity: Cathode Band
• Weight: 0.093 grams (Approximate)
APPLICATION CIRCUIT

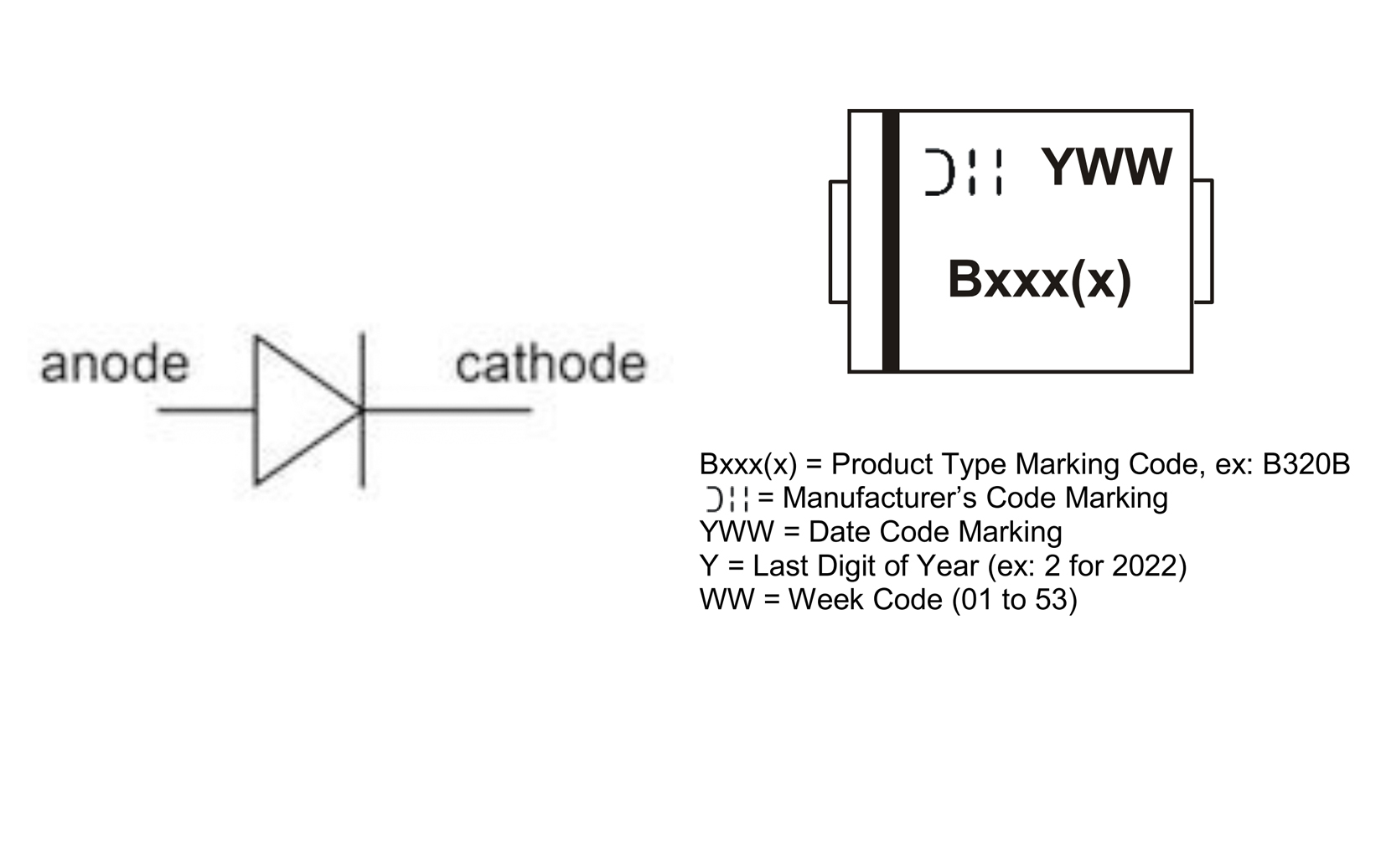

PIN CONFIGUTION
