Low VCE (SAT) PNP Surface Mount Transistor.
2DB1713-13
2DB1713-13.pdf
No.13539
FEATURES
• Epitaxial Planar Die Construction
• Ideally Suited for Automated Assembly Processes
• Ideal for Medium Power Switching or Amplification Applications
• Complementary NPN Type Available (2DD2678)
DESCRIPTION
Mechanical Data:
• Case: SOT89-3L
• Case Material: Molded Plastic, "Green” Molding Compound.
UL Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020D
• Terminals: Finish — Matte Tin annealed over Copper leadframe
(Lead Free Plating). Solderable per MIL-STD-202, Method 208
• Marking Information: See Page 3
• Ordering Information: See Page 3
• Weight: 0.072 grams (approximate)

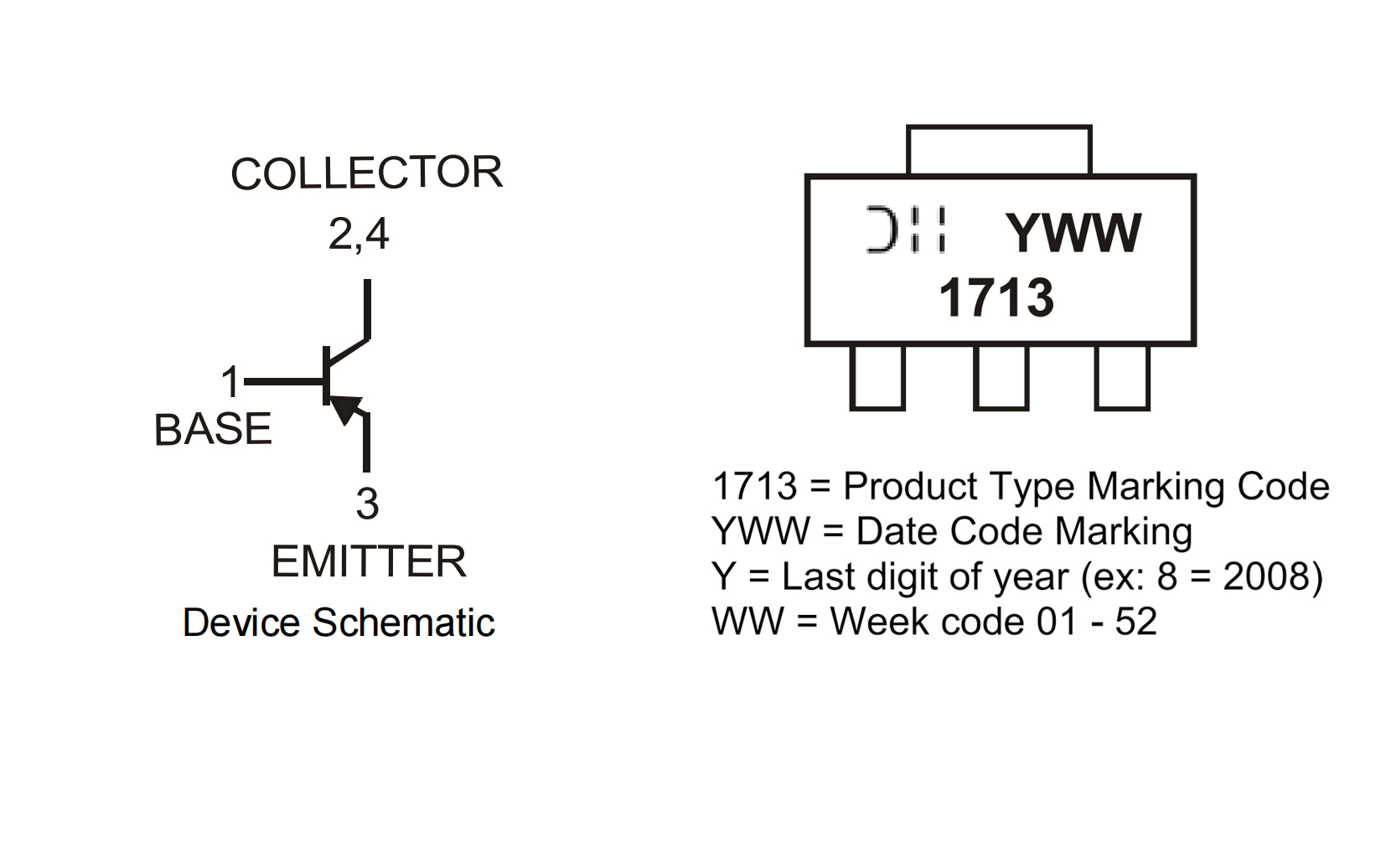

APPLICATION CIRCUIT

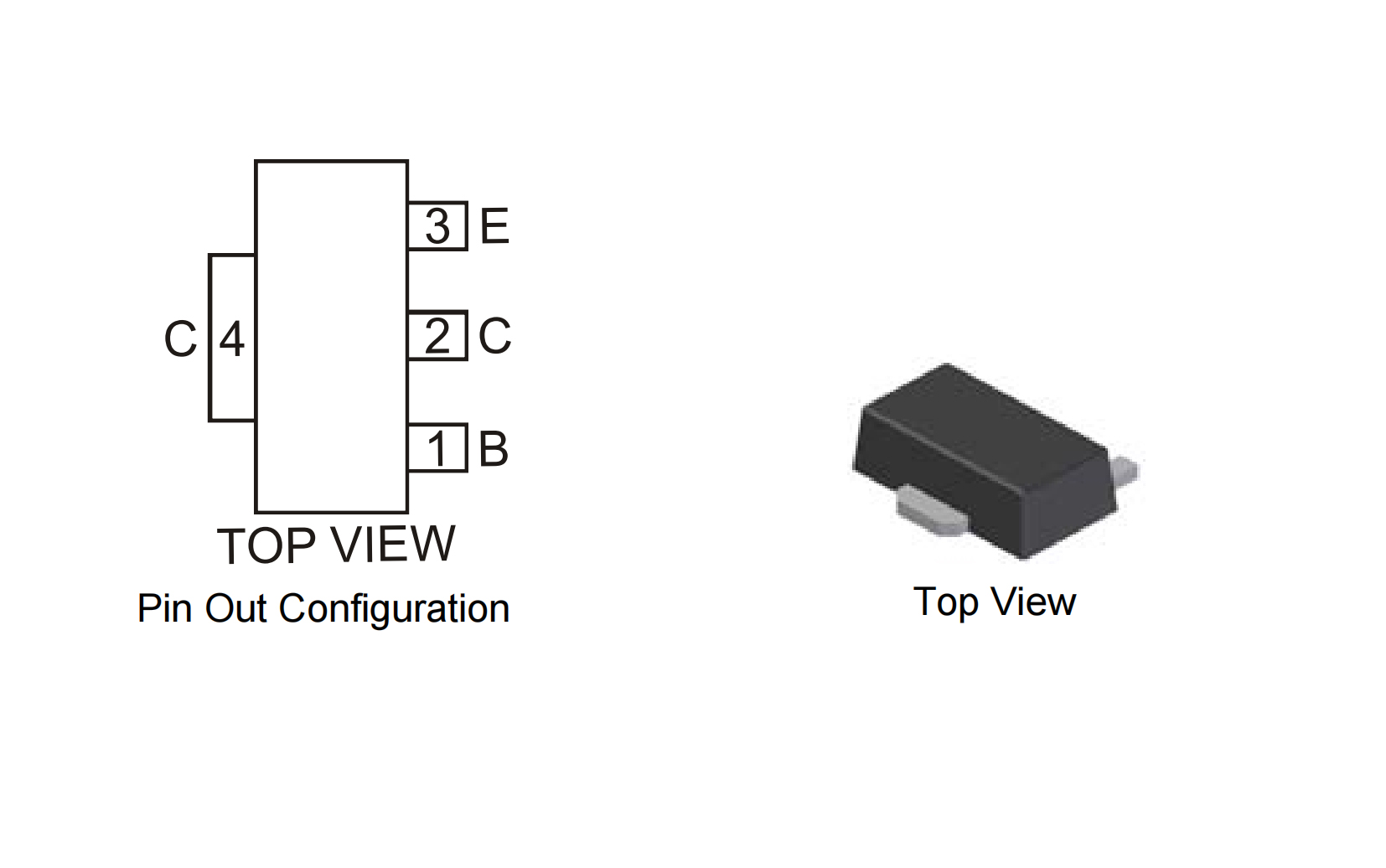

PIN CONFIGUTION
