● Industry's Highest Efficiency at Low Output Currents:

   Up to 90% with IOUT = 0.1mA

● Ultra-Low Power Step-Down Converters

● 200mA Maximum Output Current

● 1.8V to 5.5V Input Operating Range

● Fixed Output Voltages: 1.0V, 1.2V, 1.5V, 1.8V, 2.5V and 2.8V

● Output Adjustable from 1.0V to 3.3V

● 450nA Quiescent Current

● 100% Duty Cycle (Pass Mode)

● -40℃ to +85℃ Ambient Temperature Range

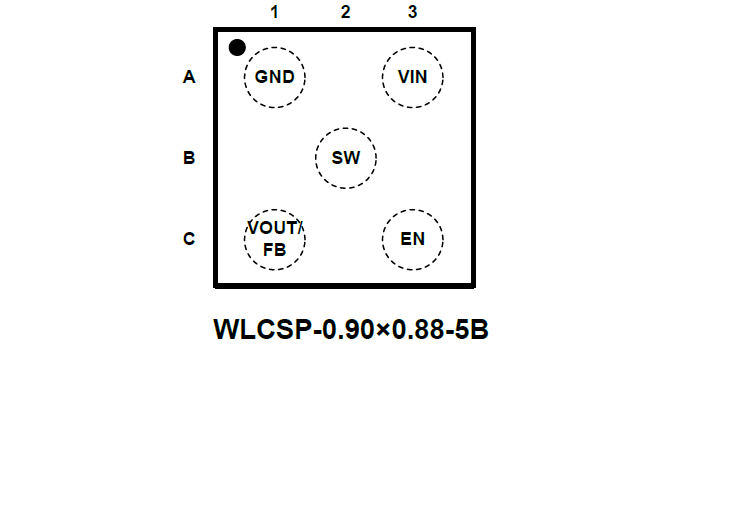

● Available in Green WLCSP-0.90×0.88-5B Package

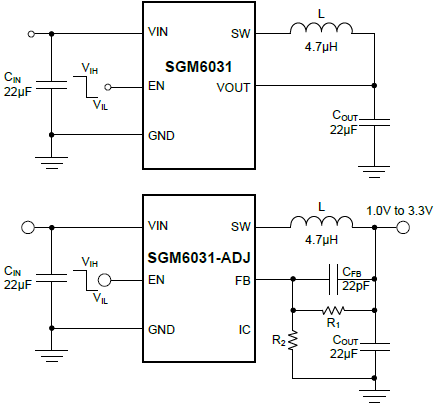

The SGM6031 family provides a highly integrated ultra-low power step-down converter solution that is well suited for meeting the special needs of ultra-low power applications such as energy harvesting. The regulators are intended to step-down the voltage from an energy storage element such as a battery or super capacitor to supply the rail to low-voltage electronics. The regulated output has been optimized to provide high efficiency across low output currents (<10μA) to high currents (200mA).

The SGM6031 family integrates an optimized hysteretic controller for low-power applications. The internal circuitry uses a time-based sampling system to reduce the average quiescent current.

All the capabilities of SGM6031 are packed into a small WLCSP-0.90×0.88-5B package. It operates over an ambient temperature range of -40℃ to +85℃.
