● Forced Continuous PWM Mode Operation

● High Efficiency: Up to 95%

● 2.5V to 5.5V Input Voltage Range

● 1.4MHz Constant Frequency Operation

● 2A Output Current

● 100% Duty Cycle for Lowest Dropout

● Less than 2μA Shutdown Current

● Low RDS(ON) Internal Switches: 0.135Ω

● Allows Use of Ceramic Capacitors

● Current Mode Control for Excellent Line and Load

   Transient Response

● Internal Soft-Start Protection

● Short Circuit and Thermal Protection

● -40℃ to +85℃ Operating Temperature Range

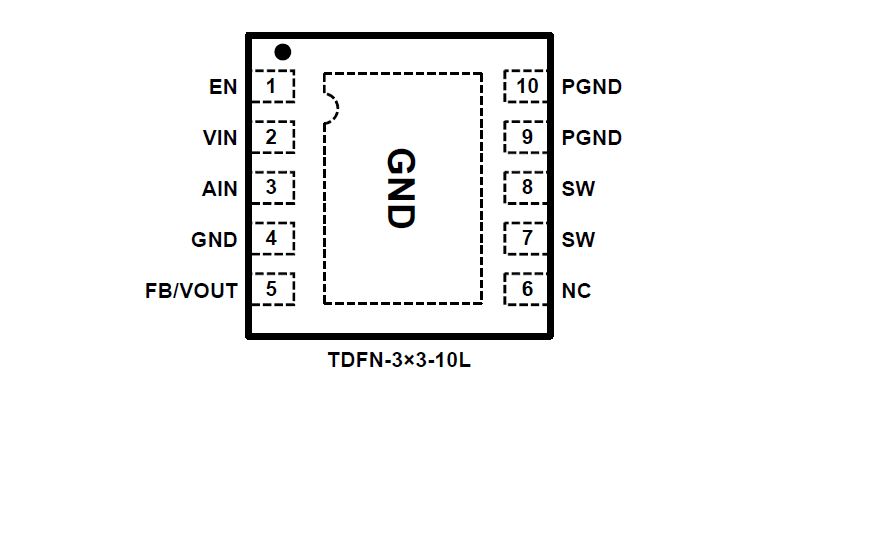

● Available in Green TDFN-3×3-10L Package

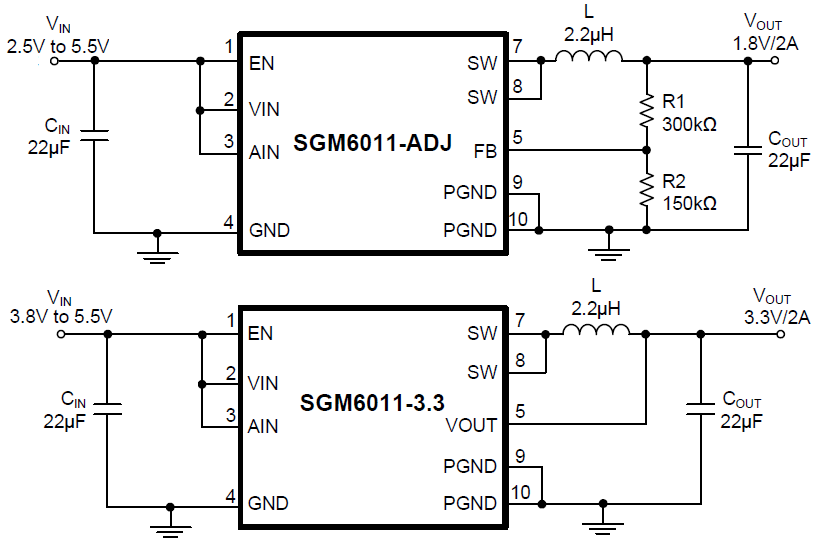

The SGM6011 is a high efficiency monolithic synchronous step-down regulator using 1.4MHz constant frequency, current mode architecture. The device is available in an

adjustable version. It is ideal for portable equipment requiring very high current up to 2A from single-cell Li-ion batteries.

The SGM6011 also can run at 100% duty cycle for low dropout operation, extending battery life in portable systems while light load operation provides very low output ripple for noise sensitive applications. It can supply up to 2A output load current from a 2.5V to 5.5V input voltage and the output voltage can be regulated as low as 1.2V. The high switching frequency (1.4MHz) minimizes the size of external components while keeping switching losses low. The internal slope compensation setting allows the device to operate with smaller inductor values to optimize size and provide efficient operation.
