● HDMI Interface Load Switch: 5.0V at 200mA

● 5.0V to 5.5V Input Voltage Range for Load Switch

● 1.6V to 5.5V Controller Side Logical Level Voltage Range

● Fast Signal Rise Times

● Built-In Fault Protection Circuitry

● Level Translators from 1.8V or 2.8V or 3.3V to 5.0V

● Low Operating Current

● -40℃ to +85℃ Operating Temperature Range

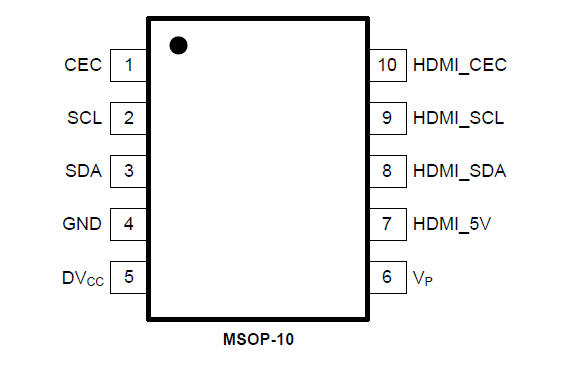

● Available in Green MSOP-10 Package

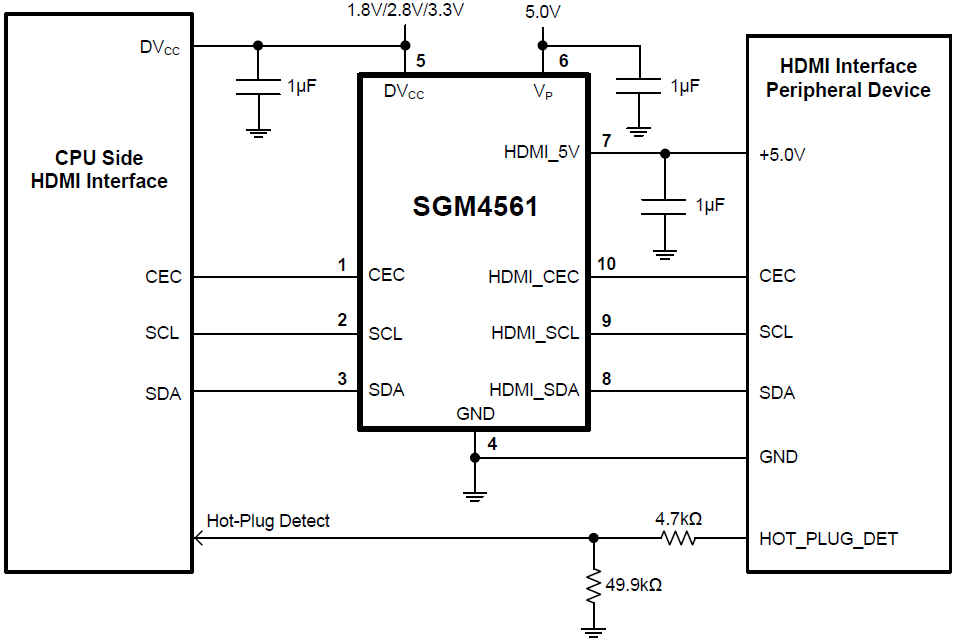

The SGM4561 provides the load switch and signal level shifting needed for HDMI interface. The part meets all type approval requirements of logical level shifting for HDMI interface and contains a 5.0V load switch to protect hot-insertion of HDMI interface. The load switch can support 200mA of load current.

Internal level translators allow controllers operating with supplies as low as 1.6V to translate 1.8V or 2.8V or 3.3V logical level to 5.0V logical level used by HDMI interface. The SGM4561 has a low operating current of typically 100μA.

The SGM4561 is available in the Green MSOP-10 package. It operates over an ambient temperature range of -40℃ to +85℃.
