• 6dB Gain for 1080p High Definition Mode

• Bias Mode Active with AC-Coupled Input

• Bias Mode Inactive with DC-Coupled Input

• AC- or DC-Coupled Output

• DC-Coupled Output Eliminates AC Coupling Capacitor

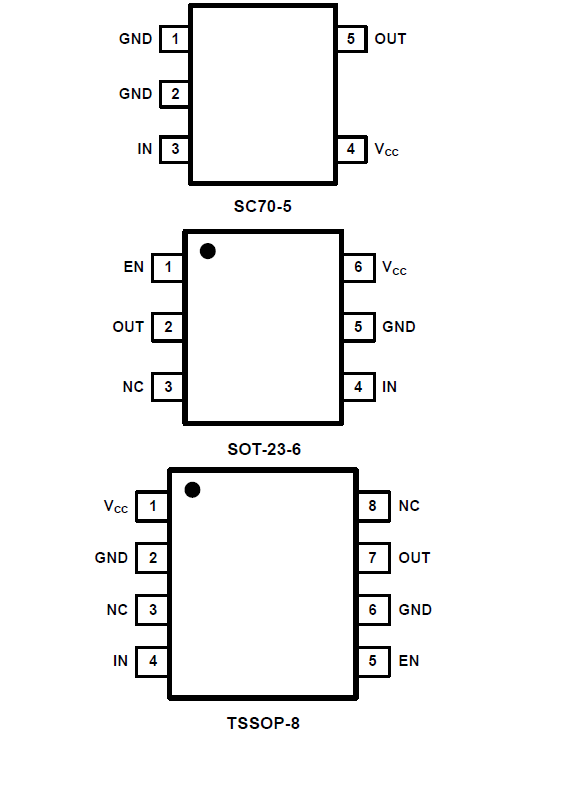

• Available in Green TSSOP-8, SOT-23-6 and SC70-5 Packages

• -40℃ to +85℃ Operating Temperature Range

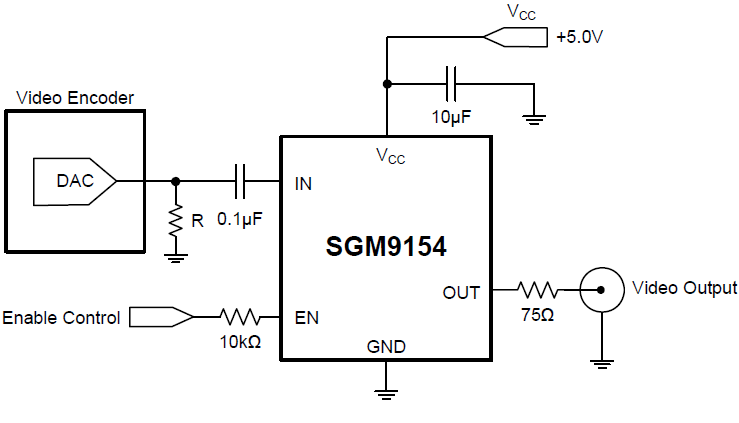

The SGM9154 video filter is intended to replace passive LC filters and drivers with an integrated device. The 6th-order channel offers High Definition (HDp) filter. The SGM9154 may be directly driven by a DC-coupled DAC output or an AC-coupled signal. Internal bias circuitry provides constant bias voltage for AC-coupled input. The output can be AC- or DC-coupled. DC coupling the output removes the need for large output coupling capacitors.

The SGM9154 is available in Green TSSOP-8 and SOT-23-6 and SC70-5 packages. It operates over an ambient temperature range of -40℃ to +85℃.
