• Rail-to-Rail Output

• Low Bias Current: ±1nA (TYP)

• High Open-Loop Gain: 120dB at VS = ±15V

• High PSRR: 146dB

• High Gain-Bandwidth Product: 3MHz

• Settling Time to 0.1% with 1V Step: 0.5μs

• Overload Recovery Time: 10μs

• Low Noise: 8.5nV/Hz at 1kHz

• Supply Voltage Range: 3.6V to 36V or ±1.8V to ±18V

• Input Common Mode Voltage Range: (-VS) + 1.5V to (+VS) - 2V

• Low Quiescent Current: 0.9mA (TYP)

• -40℃ to +125℃ Operating Temperature Range

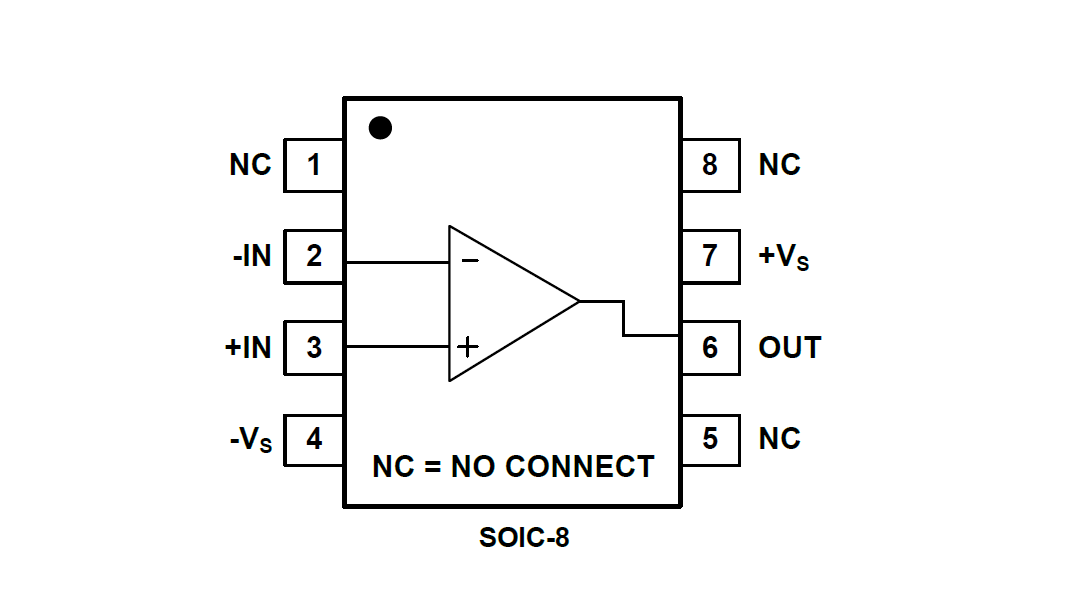

• Available in Green SOIC-8 Package

The SGMOP07D is a low noise, low offset voltage and high voltage operational amplifier, which can be designed into a wide range of applications. The SGMOP07D has a high gain-bandwidth product of 3MHz, a slew rate of 4V/μs, and a quiescent current of 0.9mA at wide power supply range.

The SGMOP07D is designed to provide optimal performance in low noise systems. It provides rail-to-rail output swing into heavy loads.

The single SGMOP07D is available in Green SOIC-8 package. It is specified over the extended -40℃ to +125℃ temperature range.
