• Wide Supply Ranges

Single Supply: 3V to 32V

Dual Supplies: ±1.5V to ±16V

• Low Quiescent Current: 440μA (TYP)

• Gain-Bandwidth Product: 1.1MHz

• Input Common Mode Voltage Range Includes Ground, Allowing

  Direct Sensing Near Ground

• Low Input Offset Voltage: 5.8mV (MAX)

• Low Input Offset Current: 10pA (TYP)

• Low Input Bias Current: 10pA (TYP)

• Differential Input Voltage Range Equal to Maximum- Rated Supply

  Voltage: 32V

• Open-Loop Differential Voltage Gain: 111dB (TYP)

• Internal Frequency Compensation

• -40℃ to +125℃ Operating Temperature Range

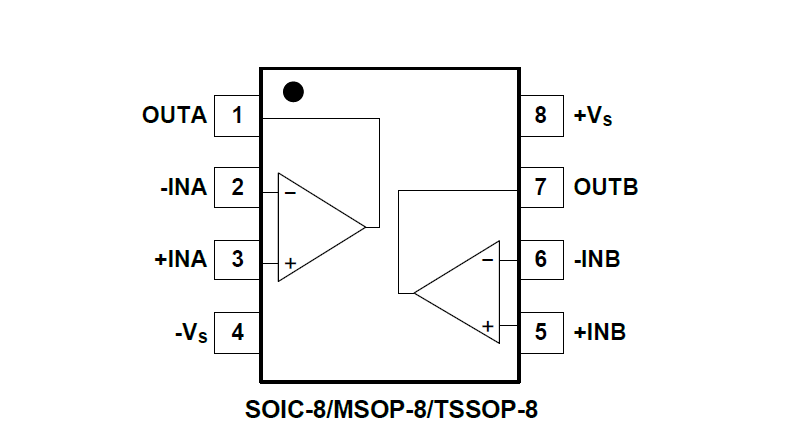

• Available in Green SOIC-8, MSOP-8 and TSSOP-8 Packages

The LM2904 consists of two independent, high-gain frequency-compensated operational amplifiers designed to operate from a single supply or dual supplies over a wide range of voltages.

The LM2904 is available in Green SOIC-8, MSOP-8 and TSSOP-8 packages. It is specified over the -40℃ to +125℃ temperature range.
