Power MOSFET and IGBT Gate Driver with Comprehensive Protections.
SGM48013
SGM48013.pdf
SGM48013.pdf
No.13366
FEATURES
• Simple and Reliable
• 8A Source and 13A Sink Peak Currents
• Wide Supply Voltage Range: 4.5V to 20V
• Fast Propagation Delay: 30ns (TYP)
• Fast Rise Time: 7ns (TYP)
• Fast Fall Time: 8ns (TYP)
• Ringing Suppression
• Negative Voltage Capability on IN Pin:
-10V when (VDD - VIN) ≤ 22V
• Negative Voltage Capability on OUT Pin:
-5V (Pulse < 500ns)
• Comprehensive Protection Features
Thermal Shutdown Protection
Under-Voltage Lockout
Short-Circuit Protection
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SOT-23-5 Package
DESCRIPTION
The SGM48013 is a high-speed gate driver capable of effectively driving MOSFET and IGBT power switches. It allows for up to 8A source and 13A sink peak currents at VDD = 20V. The SGM48013 provides a comprehensive set of protection features such as thermal shutdown protection, under-voltage lockout and short-circuit protection. It operates with a wide supply range of 4.5V to 20V.
The SGM48013 is available in a Green SOT-23-5 package. It operates over a temperature range of -40℃ to +125℃.

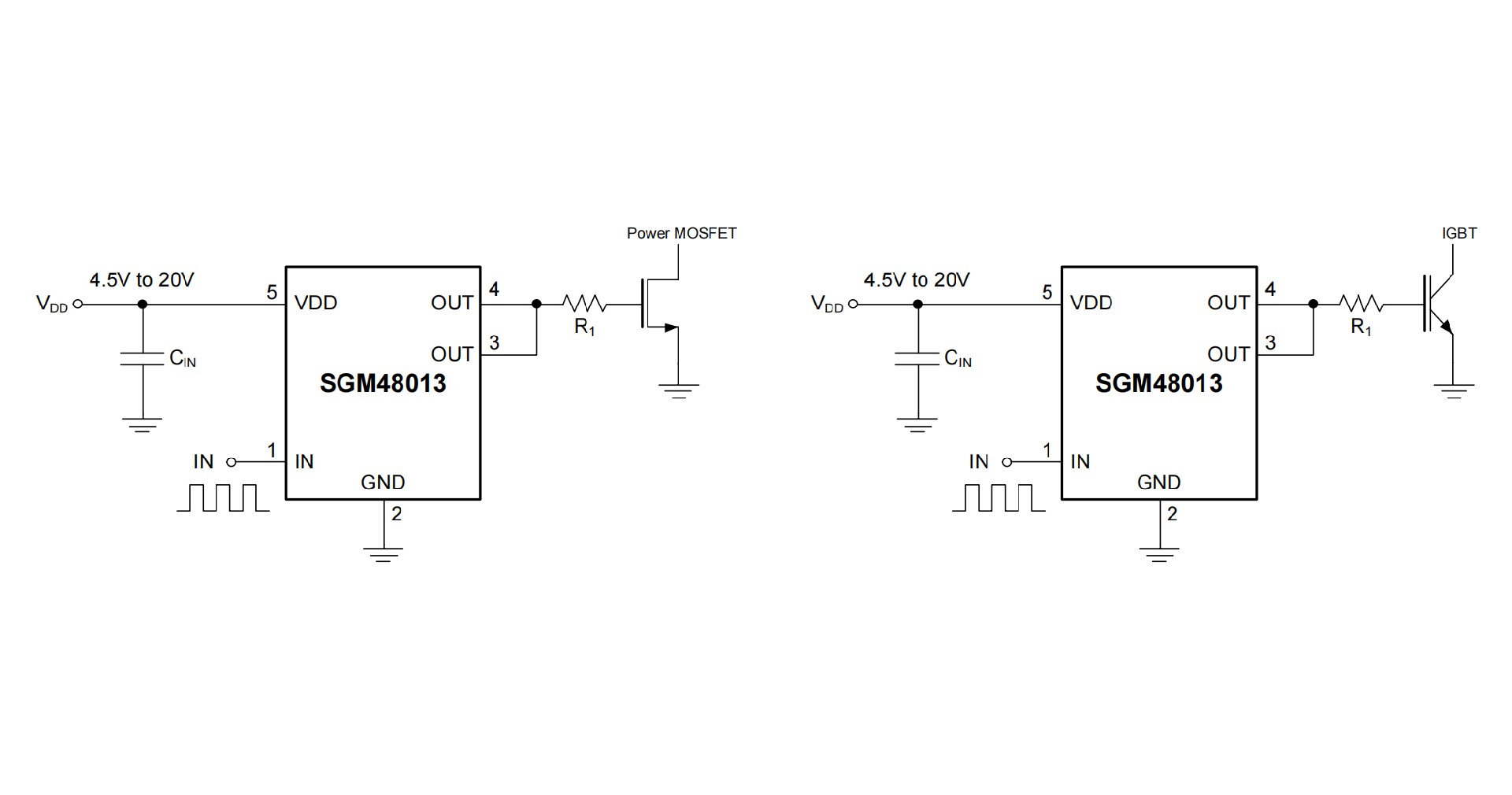

APPLICATION CIRCUIT

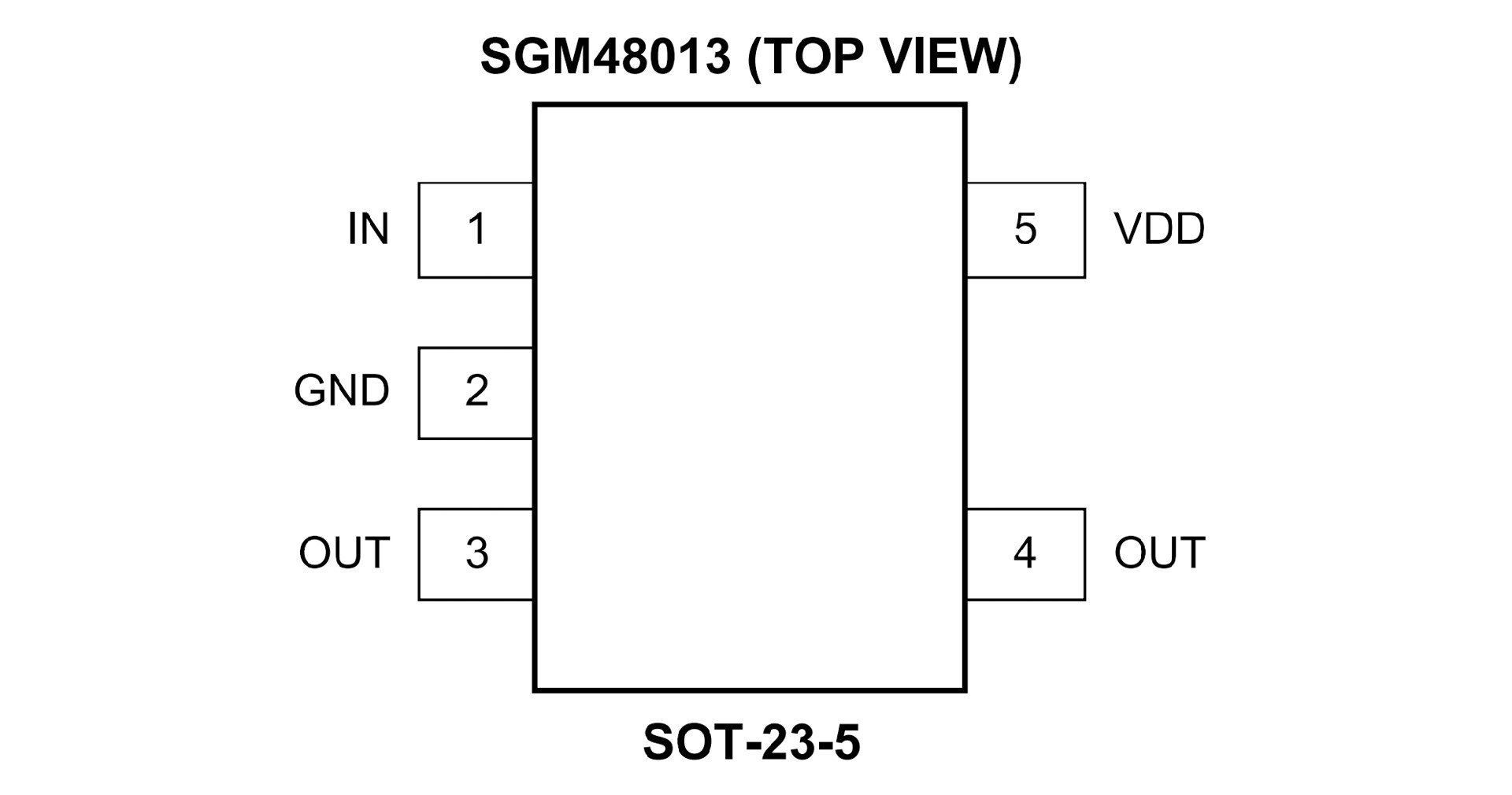

PIN CONFIGUTION
