Dual H-Bridge Motor Driver.
SGM42633
SGM42633.pdf
SGM42633.pdf
No.13367
FEATURES
• Wide Power Supply Voltage Range: 2.5V to 12V
• Two Internal H-Bridge Drivers
• Low Quiescent Current: 150μA (TYP)
• Sleep Mode Supply Current: 0.32μA (TYP)
• xINx (PWM) Interface
• Output Current Capability (at VCC = 5V, +25℃)
TSSOP Package: 0.7A RMS, 1A Peak
per H-Bridge 1.4A RMS in Parallel Mode
TQFN Package: 0.6A RMS, 1A Peak
per H-Bridge 1.2A RMS in Parallel Mode
• UVLO for VCC Voltage
• Over-Current Protection (OCP)
• Thermal Shutdown (TSD)
• Fault Indication Pin (nFAULT)
• Available in Green TSSOP-16 (Exposed Pad)
and TQFN-3×3-16L Packages
DESCRIPTION
The SGM42633 is a bipolar stepper motor driver with dual, built-in H-bridges. It operates from a supply voltage range of 2.5V to 12V, and each H-bridge of the SGM42633 can deliver motor current up to 700mA RMS (or DC) continuously, at +25℃ with a VCC supply of 5V.
The internal safety features include sinking and sourcing current limits implemented with external sensors. Internal over-current and over-temperature circuits prevent the device from being in over-stress condition, while a fault output simplifies stalling sensing, which is a useful feature for most applications. A low-power sleep mode is also provided.
The device is available in Green TQFN-3×3-16L and TSSOP-16 (Exposed Pad) packages.

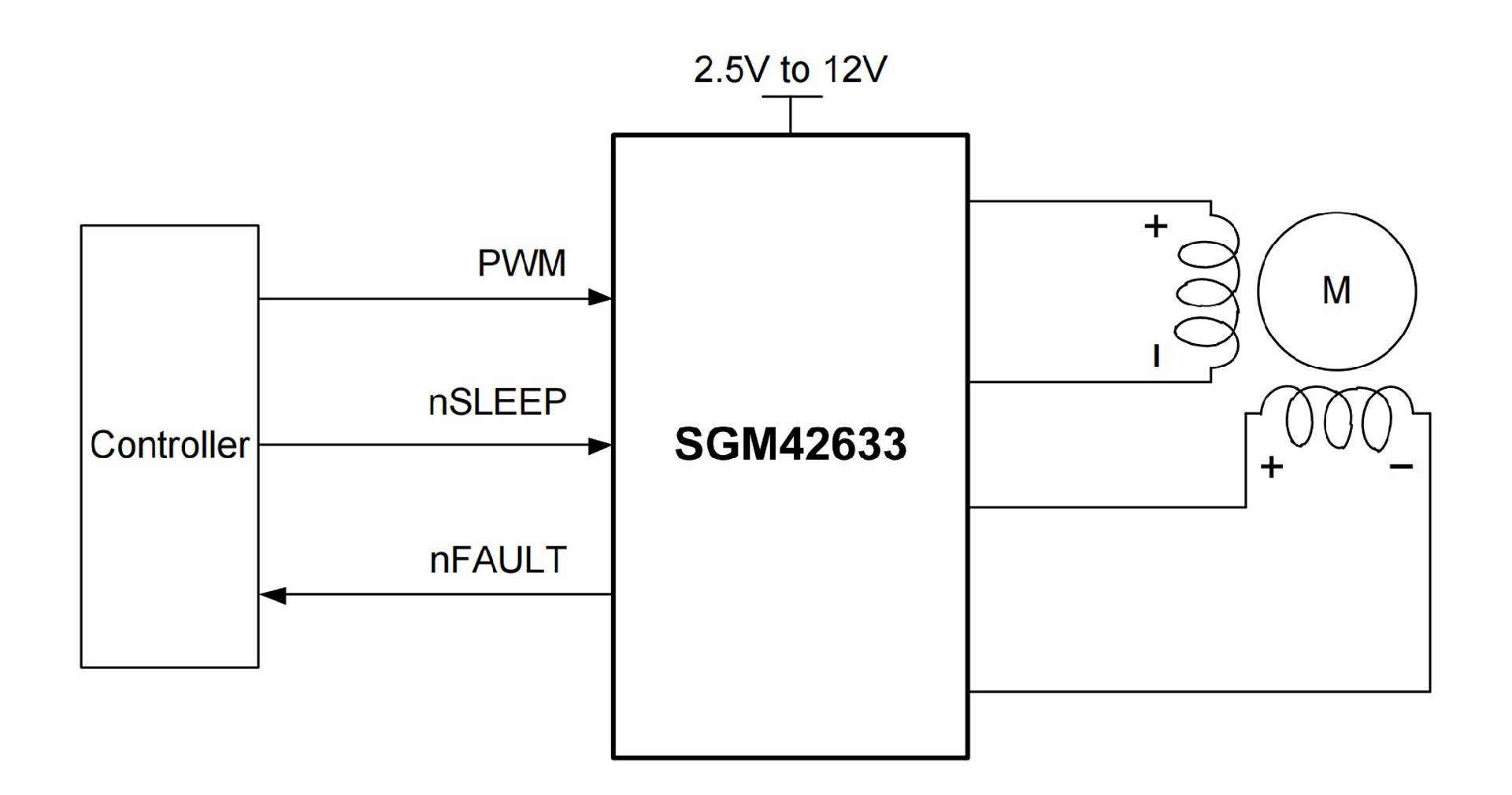

APPLICATION CIRCUIT
PIN CONFIGUTION
