• Operating Input Voltage Range: 2.5V to 20V

• Fixed Outputs of 1.2V, 1.8V, 2.5V, 3.3V and 5.0V

• Adjustable Output from 1.2V to 12V

• 300mA Output Current

• Output Voltage Accuracy: ±1% at +25℃

• Quiescent Current: 36μA (TYP)

• Low Dropout: 80mV (TYP) at 100mA, V_OUT = 3.3V

• Low Noise: 48μVRMS (TYP) at V_OUT = 3.3V

• High PSRR: 100dB (TYP) at 1kHz

• Current Limiting and Thermal Protection

• With Output Automatic Discharge

• Stable with Small Case Size Ceramic Capacitors

• Shutdown Supply Current: 0.5μA (TYP)

• -40℃ to +125℃ Operating Temperature Range

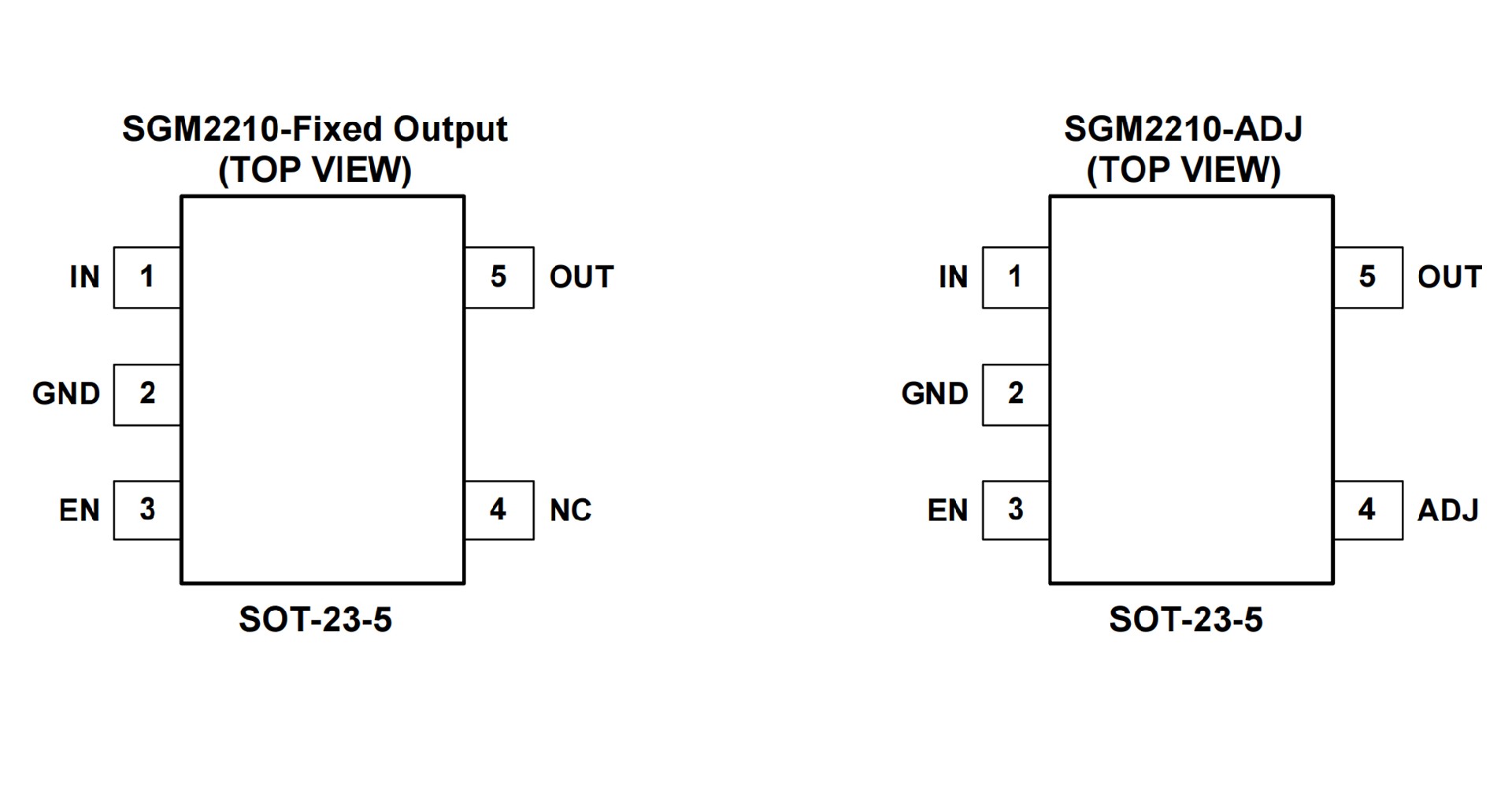

•  Available in a Green SOT-23-5 Package

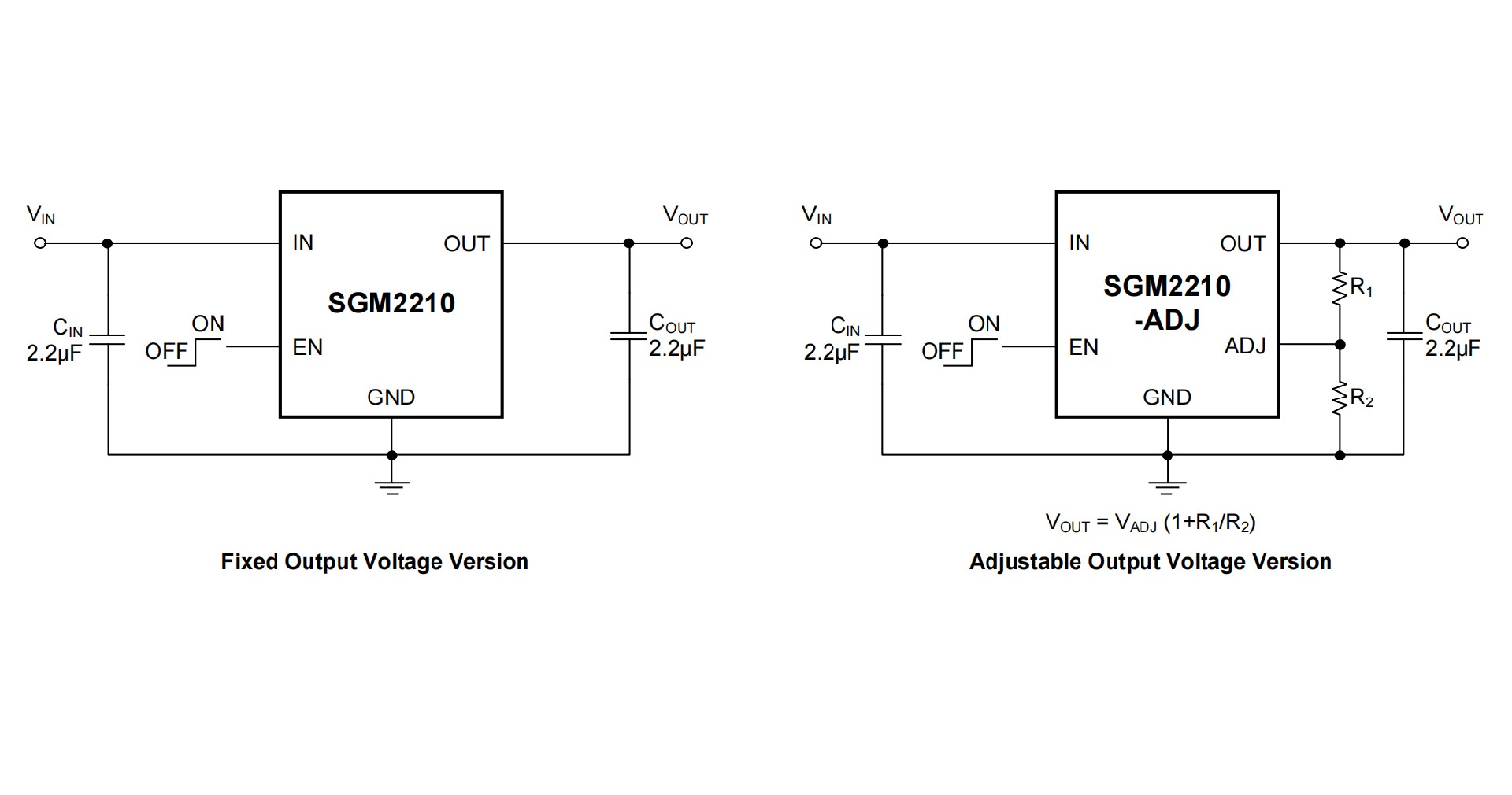

The SGM2210 is a low quiescent current, low noise and low dropout voltage linear regulator. It is capable of supplying 300mA output current with typical dropout voltage of 240mV. The operating input voltage range is from 2.5V to 20V. The fixed output voltage range is from 1.2V to 5.0V and adjustable output voltage range is from 1.2V to 12V.
