8-Channel, 16-Bit, Bipolar Input Simultaneous Sampling ADC.
SGM51652S8
SGM51652S8.pdf
SGM51652S8.pdf
No.14054
FEATURES
• 8 Channels Simultaneous Sampling
SGM51652S8 Supports 500kSPS on All Channels
Simultaneously
SGM51622S8 Supports 250kSPS on All Channels
Simultaneously
• True Bipolar Analog Input Ranges: ±10V, ±5V
• Single 5V Analog Supply and 2.7V to 5V VDRIVE
• Input Buffer with 1MΩ Analog Input Impedance
• On-Chip Accurate Reference and Reference Buffer
• Configurable Oversampling Capability with Digital Filter
• Flexible Parallel Interface or Serial Interface
SPI-Compatible
• Performance
SNR: 91.2dB (TYP), THD: -106dB (TYP)
INL: ±1.5LSB (TYP), DNL: +1LSB/-0.65LSB (TYP)
TBDkV ESD Rating on Analog Input Channels
• Operating Temperature Range: -40℃ to +125℃
• Available in a Green LQFP-10×10-64L Package
DESCRIPTION
The SGM51622S8 and SGM51652S8 are 16-bit, 8-channel simultaneous sampling, high-precision successive approximation (SAR) analog-to-digital converters (ADCs).
These ADCs are powered by a single unipolar 5V, and support true bipolar ±10V and ±5V inputs. The input range is configured by hardware pin.
These chips provide over-voltage protection up to ±20V at the input.
These chips have an on-chip high accuracy and low drift 10ppm reference.
The input impedance of these chips is ~1MΩ and it is independent of input range selection.
These ADCs support both high-speed serial and parallel interfaces.
The SGM51622S8 and SGM51652S8 are available in a Green LQFP-10×10-64L package. They are all specified from -40℃ to +125℃.

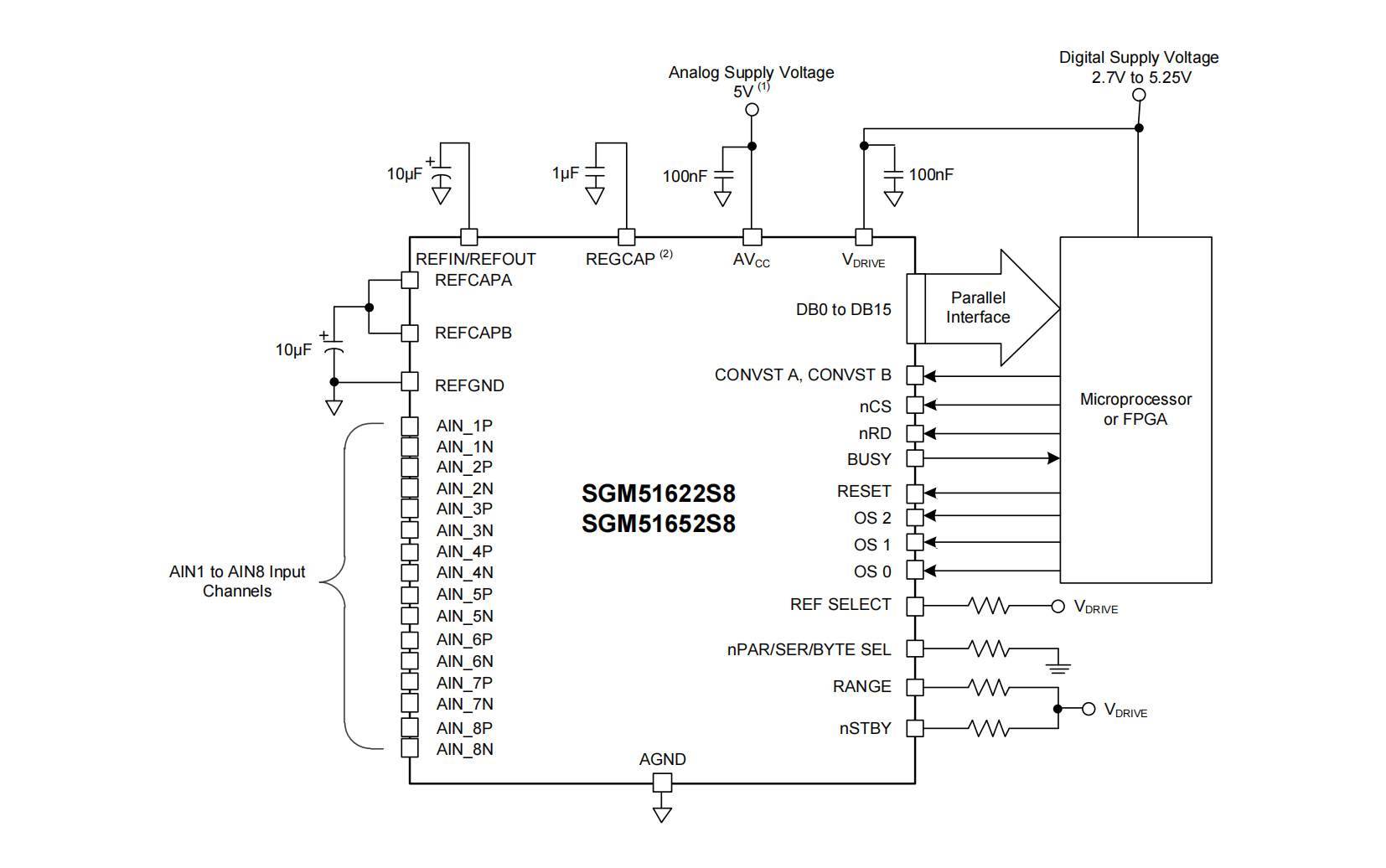

APPLICATION CIRCUIT

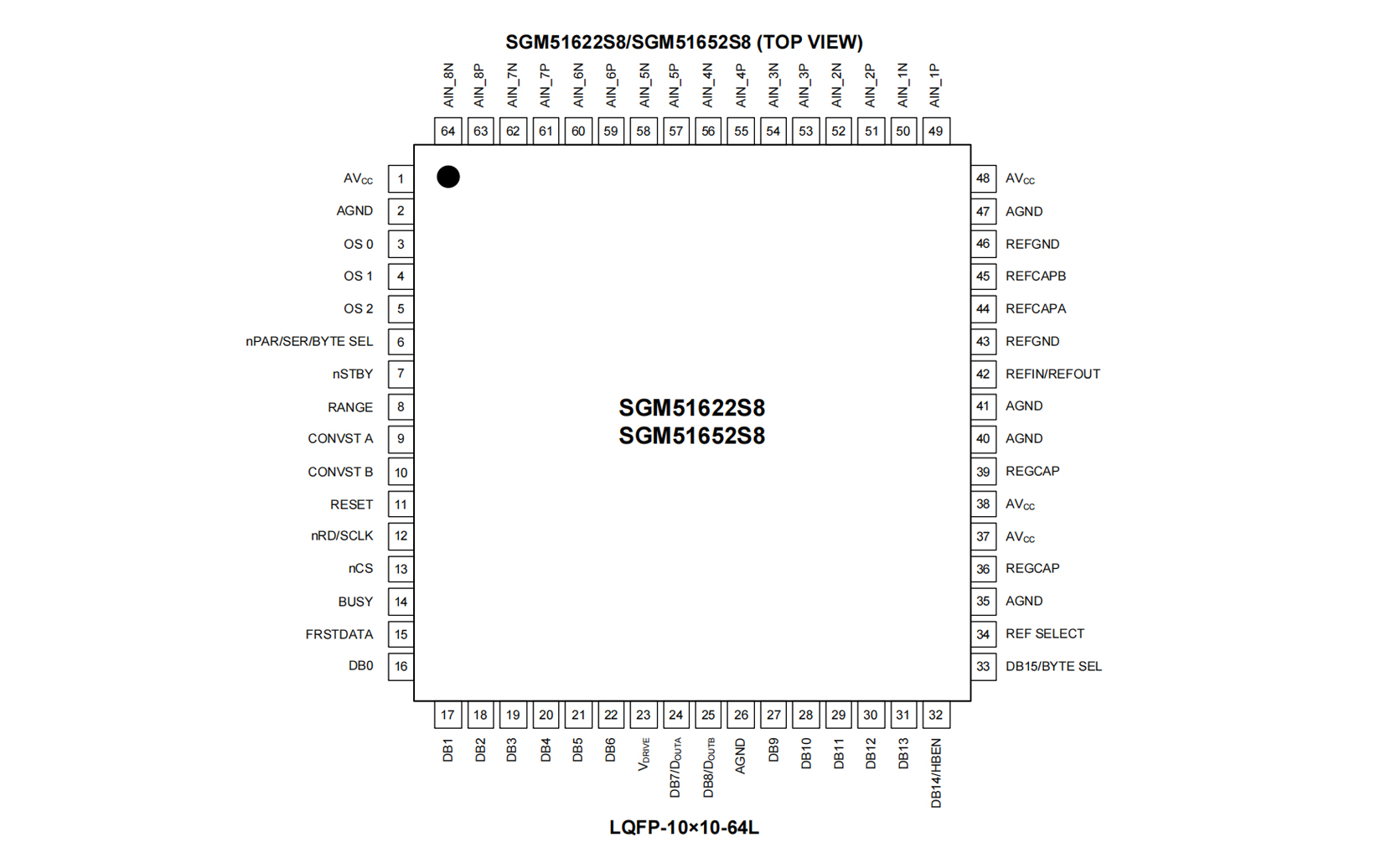

PIN CONFIGUTION
