High precision Operational Amplifier
SGM8957-1 SGM8957-1.pdf

No.10707

FEATURES

• Low Offset Voltage: 25μV (MAX)

• Low 0.1Hz to 10Hz Noise: 2μVP-P

• Quiescent Current: 20μA/Amplifier (TYP)

• Single Supply Operation

• Integrated RFI Filter

• Supply Voltage Range: 1.8V to 5.5V

• Rail-to-Rail Input/Output

• -40℃ to +125℃ Operating Temperature Range

• Small Packaging:

  SGM8957-1 Available in Green SOT-23-5, SC70-5

  and SOIC-8 Packages

DESCRIPTION

The single SGM8957-1 and dual SGM8957-2 CMOS operational amplifiers provide very low offset voltage and zero-drift over time and temperature. The miniature, high-precision, low quiescent current amplifiers offer high-impedance inputs that have a wide input common mode range 100mV beyond the rails and rail-to-rail output that swings within 14mV of the rails. Single or dual supplies as low as +1.8V (±0.9V) and up to +5.5V (±2.75V) may be used. They are optimized for low voltage, single supply operation.

The SGM8957-1/-2 offer excellent CMRR without the crossover associated with traditional complementary input stages. This design results in superior performance for driving analog-to-digital converters (ADCs) without degradation of differential linearity. The single SGM8957-1 is available in Green SOT-23-5, SC70-5 and SOIC-8 packages.

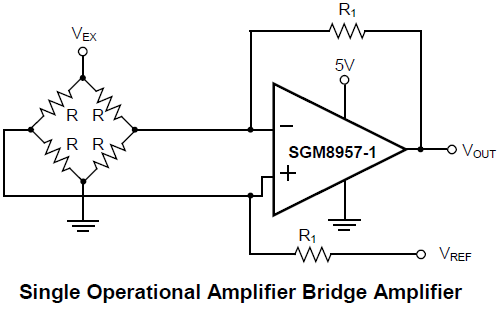

APPLICATION CIRCUIT

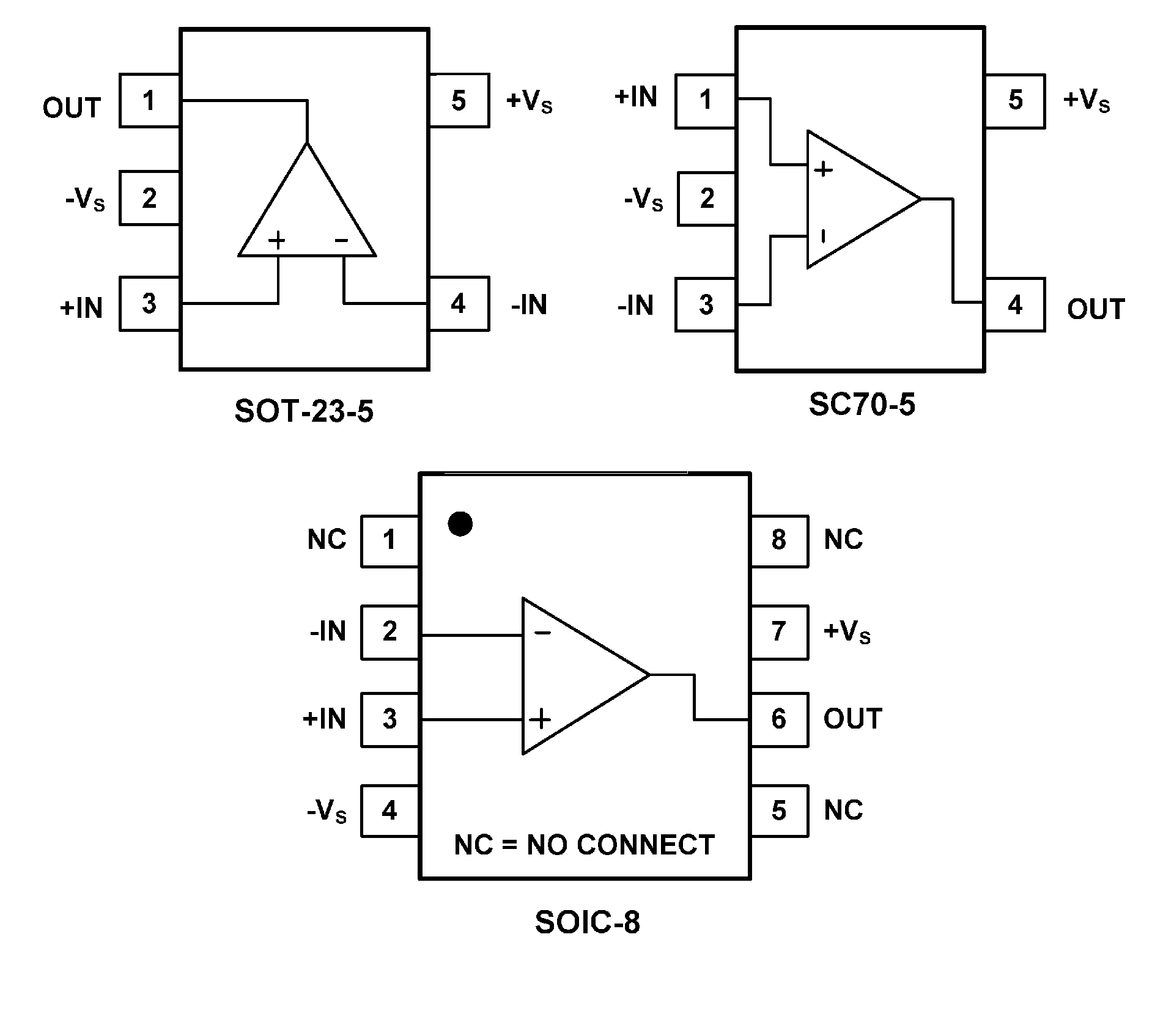

PIN CONFIGUTION
