150mA, High PSRR, High Voltage Regulators.
SGM2202-ADJ
SGM2202-ADJ.pdf
SGM2202-ADJ.pdf
No.13518
FEATURES
• Low Power Consumption
• 150mA Nominal Output Current
• Low Dropout Voltage
• High PSRR
• Low Temperature Coefficient
• High Input Voltage (up to 36V)
• Output Voltage Accuracy: ±1%
• Fixed Outputs of 3.0V, 3.3V and 5.0V
• -40℃ to +85℃ Operating Temperature Range
• Available in Green SOT-23-5 Package
DESCRIPTION
The SGM2202 series is a set of low power high precision high voltage regulator implemented in CMOS technology which can provide 150mA output current. The device allows input voltage as high as 36V. The SGM2202 is available in 3.0V, 3.3V and 5.0V output voltages. CMOS technology ensures low dropout voltage and low quiescent current. The output voltage tolerance is kept within ±1%.
The SGM2202 is available in Green SOT-23-5 package. It operates over an ambient temperature range of -40℃ to +85℃.

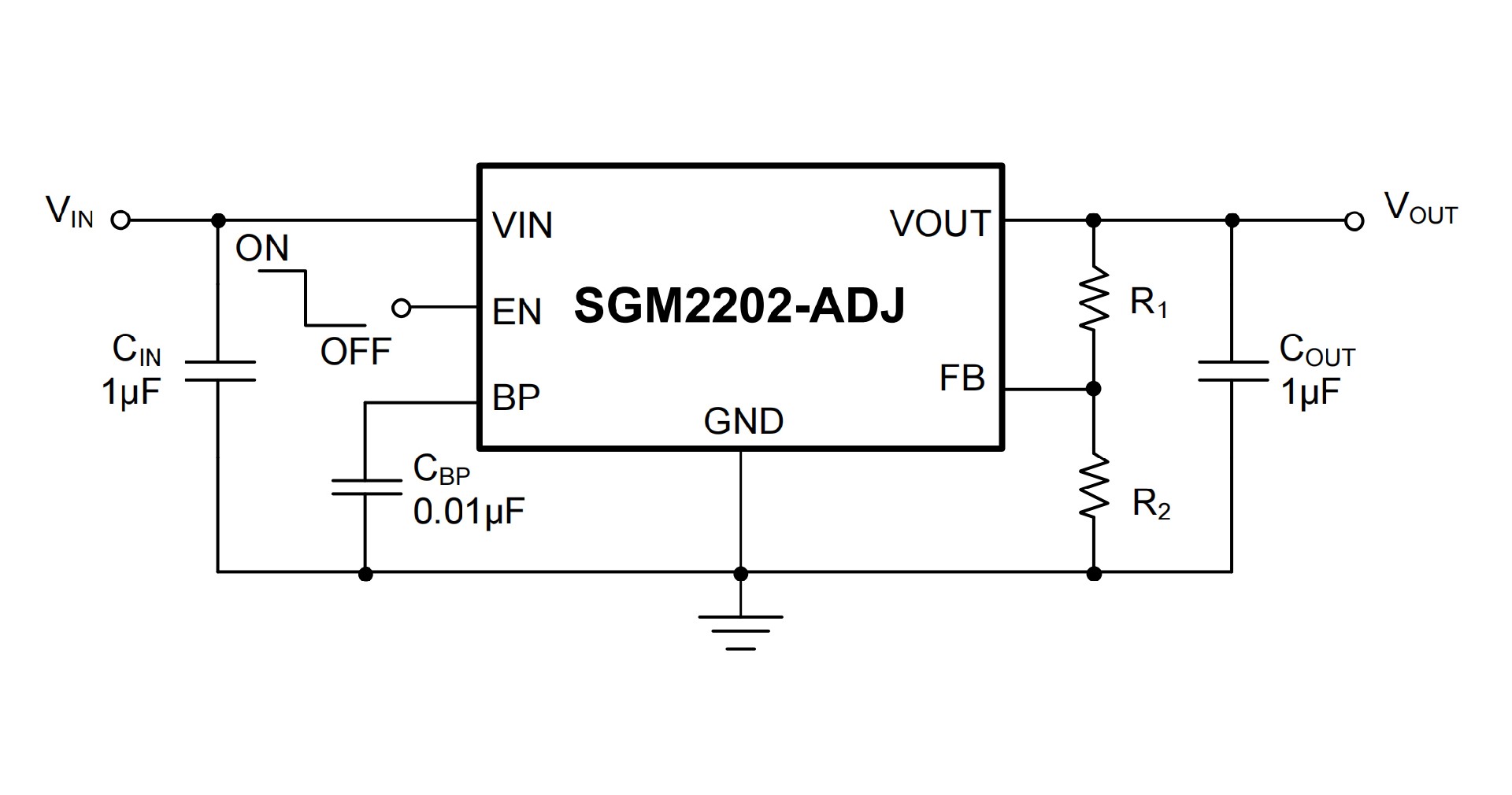

APPLICATION CIRCUIT

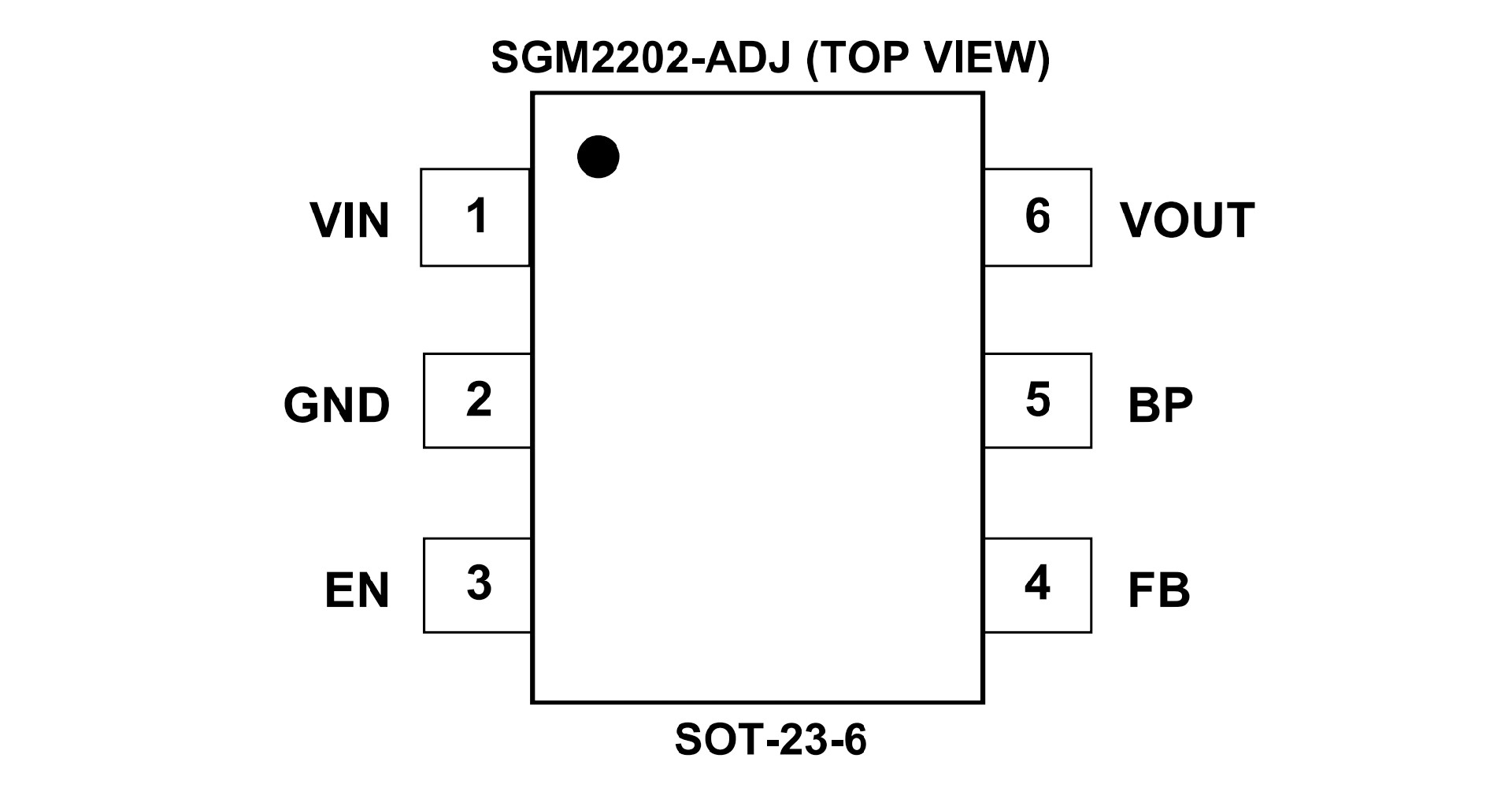

PIN CONFIGUTION
