Automotive Low-side Driver with Self-Protection Featuring Temperature and Current Limit.
SGM42401Q
SGM42401Q.pdf
SGM42401Q.pdf
No.14173
FEATURES
• AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1
TA = -40℃ to +125℃
• Full Set of Protections
Short-Circuit Protection
Over-Voltage Protection
ESD Protection
Thermal Shutdown with Automatic Restart
• Clamp Integrated for Switching of Inductive Loads
• Support Gate Threshold Voltage: 1.75V (TYP)
• dV/dt Robustness
• Output Clamp Voltage: 42V
• Static Drain-to-Source On-Resistance:
90mΩ (TYP) at 10V
• Continuous Drain Current: 3.5A (TYP)
• Output Peak Current (Thermal Limited): 8.5A
• Logic Level Input Capable of Analog Driving
• Available in a Green SOT-223-3 Package
DESCRIPTION
The SGM42401Q is a low-side smart discrete device with three terminals that provides protections against over-current, over-temperature and ESD. It also features integrated drain-to-gate clamping for over-voltage protection. This device is well-suited for harsh automotive environments and offers reliable protection.
The SGM42401Q is AEC-Q100 qualified (Automotive Electronics Council (AEC) standard Q100 Grade 1) and it is suitable for automotive applications.
The SGM42401Q is available in a Green SOT-223-3 package.

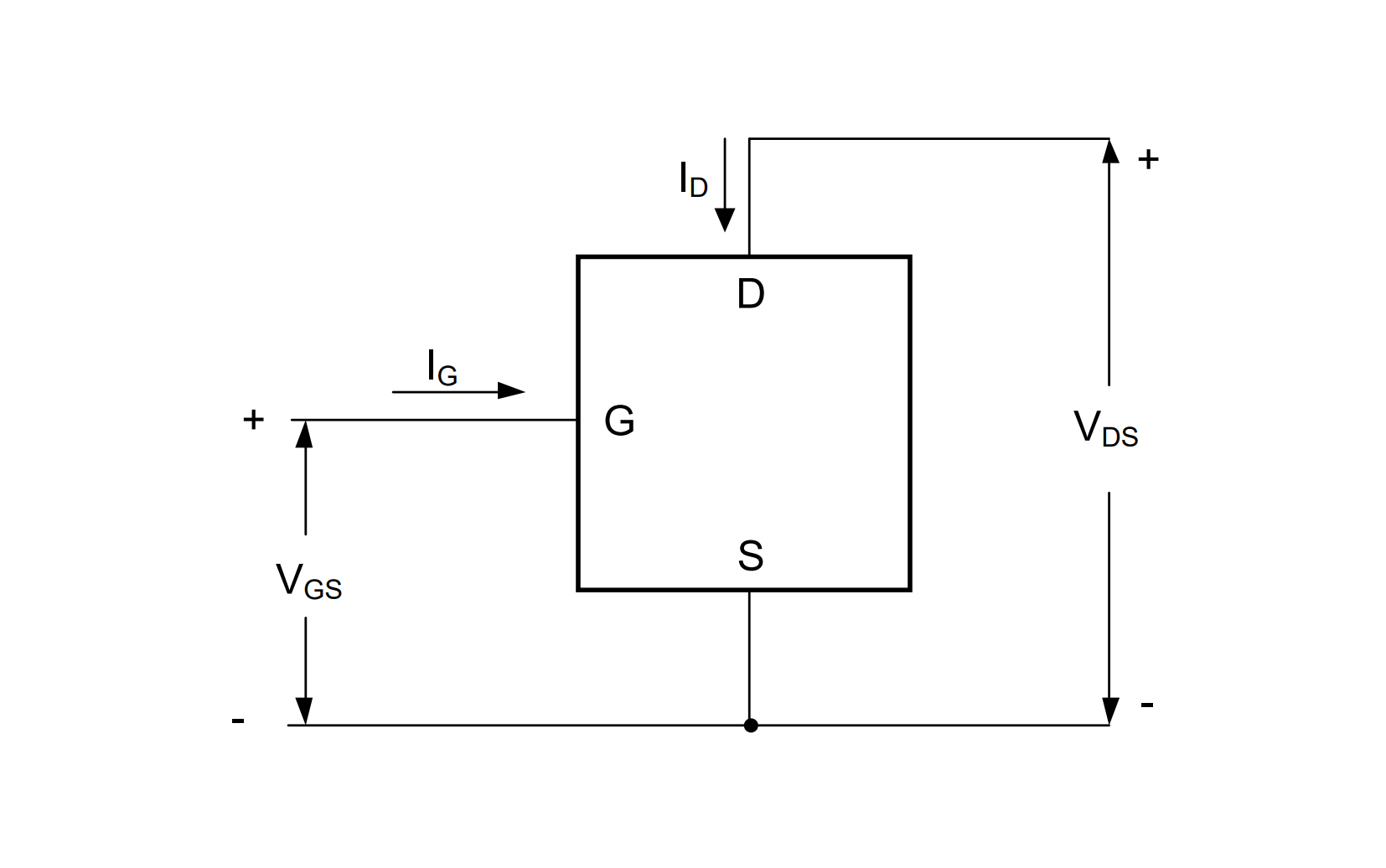

APPLICATION CIRCUIT

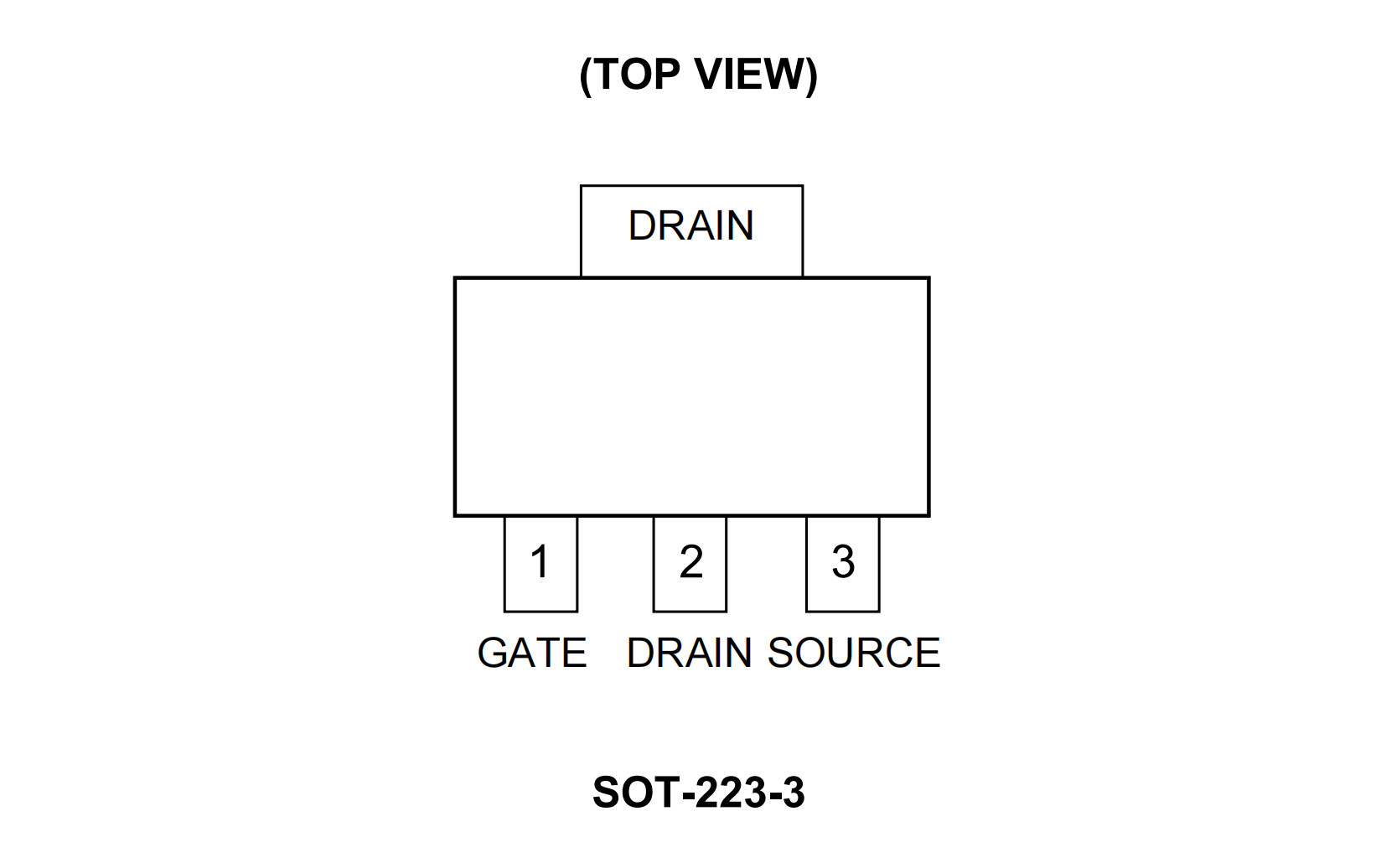

PIN CONFIGUTION
