● Low Voltage Operation: 1.8V to 5.5V

● Low On-Resistance: 4Ω (TYP)

● Low On-Resistance Flatness

● -3dB Bandwidth: 300MHz

● Rail-to-Rail Input and Output Operation

● High Off-Isolation: -75dB at 1MHz

● Low Crosstalk: -100dB at 1MHz

● Typical Power Consumption (< 0.01μW)

● TTL/CMOS Compatible

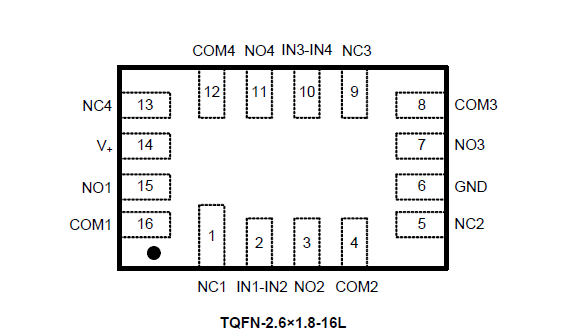

● Available in Green TQFN-2.6×1.8-16L Package

● Extended Industrial Temperature Range: -40℃ to +85℃

The SGM44601 is a high-speed, low-voltage, advanced dual-independent double-pole/double-throw (DPDT) CMOS analog switch that is designed to operate from a single +1.8V to +5.5V power supply. It features high-bandwidth (300MHz) and low on-resistance (4Ω TYP), targeted applications for audio switching. The SGM44601 is configured as a dual double-pole /double-throw (DPDT) device with two logic control inputs that control two multiplexer/demultiplexers each.

The configuration can also be used as a dual differential 2-to-1 multiplexer/ demultiplexer. SGM44601 is available in Green TQFN-2.6×1.8-16L package.
